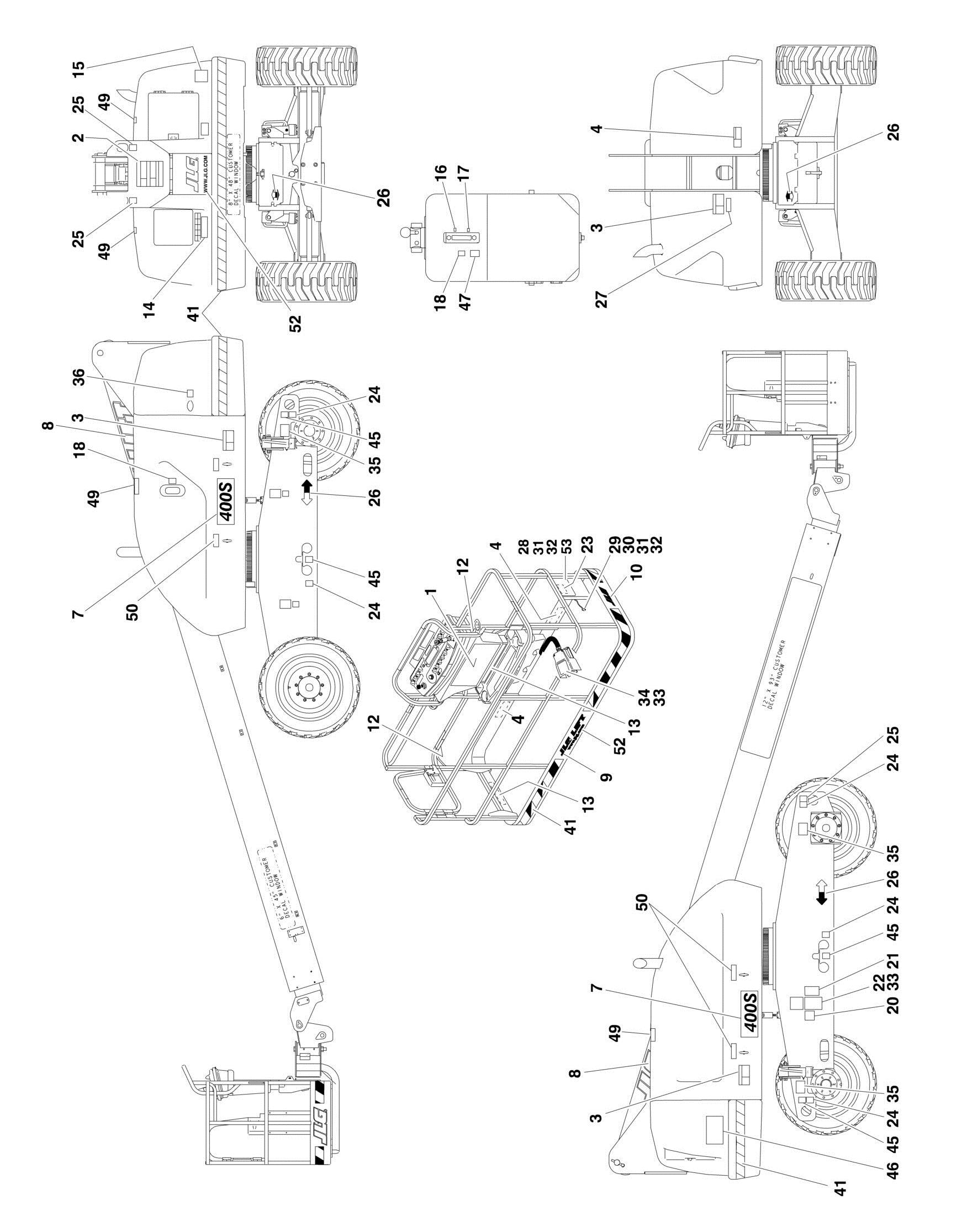

FIGURE 8-3. DECAL INSTALLATION (SN 0300095671 through 0300096000
ITEM PART NUMBER QTY DESCRIPTION REV
Ref STANDARD DECAL INSTALLATIONS 0270398 Ref JLG Decals
4 0275066 Ref Standard Decal Installations 400S with 500LB Capacity 1 0275067 Ref Standard Decal Installations 400S with 750LB Capacity 1 0275068 Ref Standard Decal Installations 460SJ 1 1 1705921 1 Decal - Tipping/Electrocution (Platform) Options: 2 1705822 1 Decal - Electrocution/Safety Manual 3 1705961 3 Decal - Electrocution 4 1701518 3 Decal - Warning Crushing 7 Ref Decal - Model Designation Options: 7 1704472 2 Decal - Model Designation Model 400S 7 1704473 2 Decal - Model Designation Model 460SJ 8 1702861 2 Decal - JLG Lift (8in) 9 1702774 1 Decal - JLG Lift (3.5in) 10 1702773 1 Decal - JLG (5in) 12 1704277 3 Decal - Attach Lanyard Here 13 Ref Decal - Capacity Options: 13 1705978 2 Decal - Capacity 400S with 230kg Capacity 13 1706382 2 Decal - Capacity 400S with 340kg Capacity 13 1705978 2 Decal - Capacity 460SJ 14 Ref Decal - Capacity Options: 14 1705978 1 Decal - Capacity 400S with 230kg Capacity 14 1706382 1 Decal - Capacity 400S with 340kg Capacity 14 1705978 1 Decal - Capacity 460SJ 15 1705084 1 Decal - Sound Power Level 16 1701502 1 Decal - High Oil Level 17 1701503 1 Decal - Low Oil Level 18 1701504 2 Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 6 Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 4 Decal - Arrow 27 3251242 1 Nameplate - 240V-50Hz 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in 32 3311405 5 Locknut 1/4in-20NC 33 3820001 4 Rivet 34 1705828 1 Decal - Footswitch 35 Ref Decal - Maximum Tire Load Options: 35 1706126 4 Decal - Maximum Tire Load 400S with 230kg Capacity 35 1704829 4 Decal - Maximum Tire Load 400S with 340kg Capacity 35 1704828 4 Decal - Maximum Tire Load 460SJ 36 1701505 1 Decal - Fuel 41 4420051 209 in/5.3m
ITEM PART NUMBER QTY DESCRIPTION
45 1701499 4 Decal - No Lift 46 1705276 1 Decal - Lift Diagram 47 1704412 1 Decal - Hydraulic Oil Chart 49 1701691 4 Decal - No Step 50 1704726 4 Decal - Lock Latch 52 1704885 2 Decal - WWW.JLG.COM 53 0641406 4 Bolt 1/4in-20NC x 3/4in
