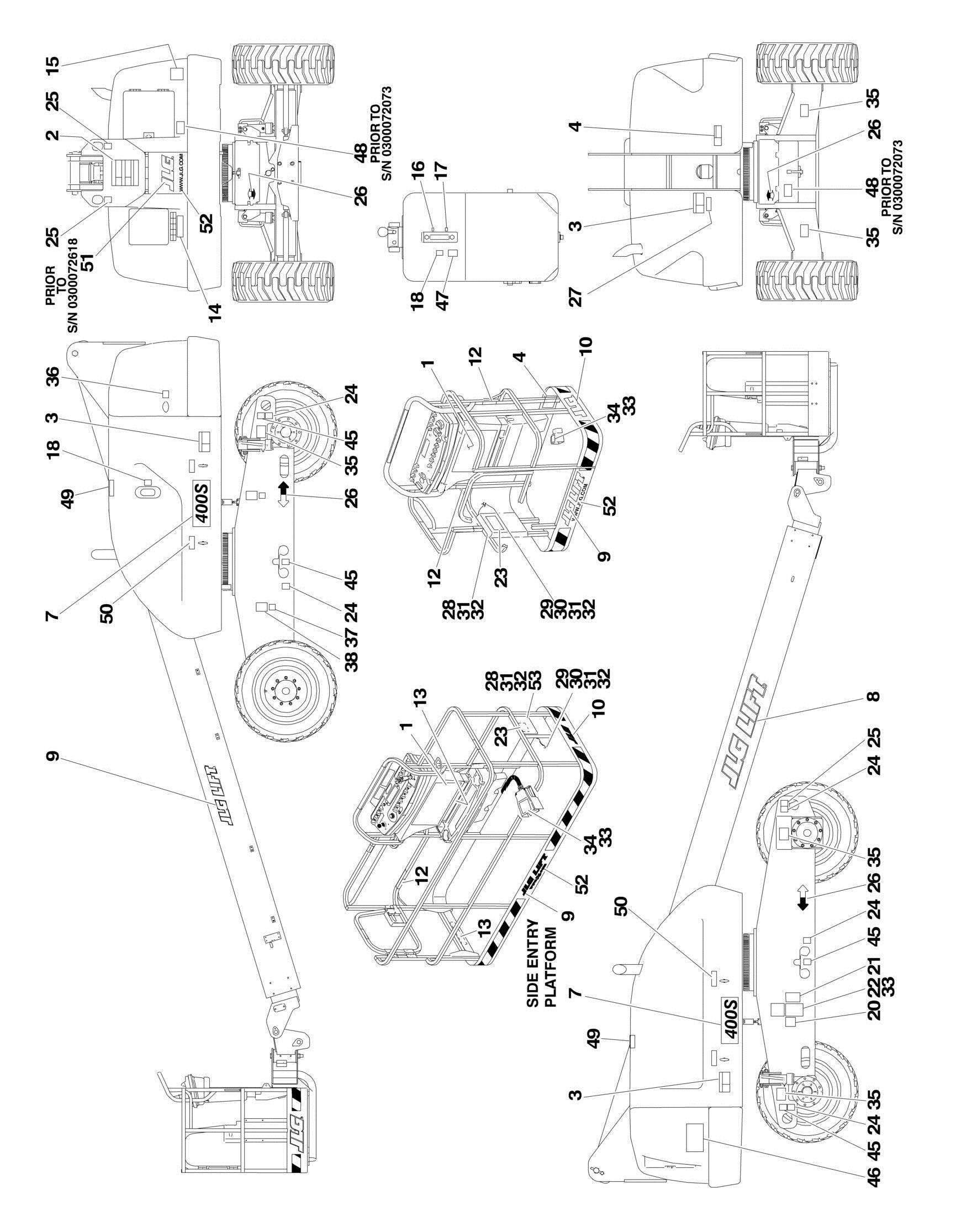

FIGURE 8-1. DECAL INSTALLATION (Prior to SN 0300085617
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD DECAL INSTALLATIONS 0270398 Ref Decals JLG Ref Standard Decal Installations 400S with 500LB Capacity 0259161 Ref Australian Spec 0259167 Ref Dutch Spec See Note Ref Finnish Spec (Note: Not Available for Purchase) 0259171 Ref French Spec 0259165 Ref German Spec 0259169 Ref Italian Spec 0273181 Ref Norwegian Spec 0259173 Ref Spanish Spec 0259163 Ref UK Spec Ref Standard Decal Installations 400S with 750LB Capacity 0259982 Ref Australian Spec 0259985 Ref Dutch Spec See Note Ref Finnish Spec (Note: Not Available for Purchase) 0259987 Ref French Spec 0259984 Ref German Spec 0259986 Ref Italian Spec 0273183 Ref Norwegian Spec 0259988 Ref Spanish Spec 0259983 Ref UK Spec Ref Standard Decal Installations 460SJ 0259162 Ref Australian Spec 0259168 Ref Dutch Spec 0259172 Ref French Spec 0274589 Ref Finnish Spec 0259166 Ref German Spec 0259170 Ref Italian Spec 0273182 Ref Norwegian Spec 0259174 Ref Spanish Spec 0259164 Ref UK Spec 1 Ref Decal - Danger/Warning (Platform) Options: 1 1703992 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Australian Spec) 1 1704809 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Dutch Spec) 1 See Note 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Finnish Spec) (Note: Not Available for Purchase) 1 1704811 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (French Spec) 1 1704767 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (German Spec) 1 1704810 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Italian Spec) 1 1705270 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Norwegian Spec) 1 1704812 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (Spanish Spec) 1 1704808 1 Decal - Danger/Warning (Platform) 400S with 500Lbs Capacity (UK Spec) 1 1704503 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity
REV
4
13 16
15 15 15 5 15 15
11 11
11 11 11 5 11 11
12 15 14 1 13 14 4 14 14
ITEM PART NUMBER QTY DESCRIPTION
(Australian Spec) 1 1704506 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (Dutch Spec) 1 See Note 1 Decal - Danger/Warning (Platform) 400S with 750Lbs Capacity (Finnish Spec) (Note: Not Available for Purchase) 1 1704508 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (French Spec) 1 1704505 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (German Spec) 1 1704507 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (Italian Spec) 1 1705825 1 Decal - Danger/Warning (Platform) 400S with 750Lbs Capacity (Norwegian Spec) 1 1704509 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (Spanish Spec) 1 1704504 1 Decal - Danger/Warning (Platform) 400S with 750LB Capacity (UK Spec) 1 1703992 1 Decal - Danger/Warning (Platform) 460SJ (Australian Spec) 1 1704809 1 Decal - Danger/Warning (Platform) 460SJ (Dutch Spec) 1 1705921 1 Decal - Danger/Warning (Platform) 460SJ (Finnish Spec) 1 1703917 1 Decal - Danger/Warning (Platform) 460SJ (French Spec) 1 1703799 1 Decal - Danger/Warning (Platform) 460SJ (German Spec) 1 1703915 1 Decal - Danger/Warning (Platform) 460SJ (Italian Spec) 1 1705270 1 Decal - Danger/Warning (Platform) 460SJ (Norwegian Spec) 1 1703919 1 Decal - Danger/Warning (Platform) 460SJ (Spanish Spec) 1 1704808 1 Decal - Danger/Warning (Platform) 460SJ (UK Spec) 2 Ref Decal - Danger/Warning (Ground Control) Options: 2 1704819 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Australian Spec) 2 1704821 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Dutch Spec) (Prior to SN 0300071114) 2 1705410 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Dutch Spec) (SN 0300071114 through
0300085617)
2 See Note 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Finnish Spec) (Note: Not Available for Purchase) 2 1704823 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (French Spec) 2 1704820 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (German Spec) 2 1704822 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Italian Spec) 2 1705272 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Norwegian Spec) 2 1704824 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (Spanish Spec) 2 1704819 1 Decal - Danger/Warning (Ground Control) 400S with 500Lbs Capacity (UK Spec) 2 1703807 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (Australian Spec) 2 1703914 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (Dutch Spec) 2 See Note 1 Decal - Danger/Warning (Ground Control) 400S with 750Lbs Capacity (Finnish Spec) (Note: Not Available for Purchase) 2 1703918 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (French Spec)
REV
ITEM PART NUMBER QTY
DESCRIPTION
2 1703800 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (German Spec) 2 1703916 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (Italian Spec) 2 1705255 1 Decal - Danger/Warning (Ground Control) 400S with 750Lbs Capacity (Norwegian Spec) 2 1703920 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (Spanish Spec) 2 1703807 1 Decal - Danger/Warning (Ground Control) 400S with 750LB Capacity (UK Spec) 2 1703807 1 Decal - Danger/Warning (Ground Control) 460SJ (Australian Spec) 2 1704821 1 Decal - Danger/Warning (Ground Control) 460SJ (Dutch Spec) (Prior to SN 0300071114) 2 1705410 1 Decal - Danger/Warning (Ground Control) 460SJ (Dutch Spec) (SN 0300071114 through 0300085617) 2 1705822 1 Decal - Danger/Warning (Ground Control) 460SJ (Finnish Spec) 2 1704823 1 Decal - Danger/Warning (Ground Control) 460SJ (French Spec) 2 1704820 1 Decal - Danger/Warning (Ground Control) 460SJ (German Spec) 2 1704822 1 Decal - Danger/Warning (Ground Control) 460SJ (Italian Spec) 2 1705272 1 Decal - Danger/Warning (Ground Control) 460SJ (Norwegian Spec) 2 1704824 1 Decal - Danger/Warning (Ground Control) 460SJ (Spanish Spec) 2 1704819 1 Decal - Danger/Warning (Ground Control) 460SJ (UK Spec) 3 Ref Decal - Electrocution 3 1705961 3 Finnish Spec 3 Not Required 0 All Other Specs 4 1701518 3 Decal - Warning Crushing 7 Ref Decal - Model Designation Options: 7 1704472 2 Decal - Model Designation Model 400S 7 1704473 2 Decal - Model Designation Model 460SJ 8 1702861 AR Decal - JLG Lift (8in) 8 Ref Decal - JLG Lift (8in) (Prior to SN 0300069278) 8 Ref Decal - JLG Lift (8in) (SN 0300069278 through 0300085617) 9 1702774 AR Decal - JLG Lift (3.5in) 9 Ref Decal - JLG Lift (3.5in) (Prior to SN 0300069278) 9 Ref Decal - JLG Lift (3.5in) (SN 0300069278 through 0300085617) 10 1702773 AR Decal - JLG (5in) 10 Ref Front Entry Platform 10 Ref Side Entry Platform 12 Ref Decal - Attach Lanyard Here 12 1704277 3 Australian/Finnish/Norwegian Spec 12 Not Required 0 Dutch/ French/ German/ Italian/ Spanish/ UK Spec (Prior to
SN 0300062886)
12 1704277 3 Dutch/ French/ German/ Italian/ Spanish/ UK Spec (SN
0300062886 through 0300085617)
13 Ref Decal - 230kg Capacity 13 1705978 2 Finnish Spec 13 Not Required 0 All Other Specs 14 Ref Decal - 230kg Capacity
REV
ITEM PART NUMBER QTY DESCRIPTION
14 1705978 1 Finnish Spec 14 Not Required 0 All Other Specs 15 Ref Decal - CE 15 Not Required 0 Australian Spec 15 1702928 NLA All Other Specs (Use p/n 1705084) 16 1701502 1 Decal - High Oil Level 17 1701503 1 Decal - Low Oil Level 18 1701504 2 Decal - Hydraulic Oil 20 See Note 1 Decal - Bar Code (Note: Not Aailable for Purchase) 21 1700584 1 Decal - Patent 22 See Note 1 Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 6 Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 4 Decal - Arrow 27 Ref Nameplate - 240V-50Hz 27 3251242 1 Australian Spec 27 Not Required 0 All Other Specs 28 0860520 1 Box, Manual Storage 29 1060279 1 Cable, Lanyard 30 0641408 1 Bolt 1/4in-20NC x 1in 31 4751400 6 Flatwasher 1/4in 32 3311405 1 Locknut 1/4in-20NC 33 3820001 AR Rivet 34 Ref Decal - Footswitch 34 3252347 1 Australian Spec 34 1403518 1 Dutch Spec 34 1705828 1 Finnish Spec 34 1693292 1 French Spec 34 1693294 1 German Spec 34 1701600 1 Italian Spec 34 1705275 1 Norwegian Spec 34 1701791 1 Spanish Spec 34 3252347 1 UK Spec 35 Ref Decal - Maximum Tire Load Options: 35 1704827 NLA Decal - Maximum Tire Load 400S with 500LB Capacity (Use p/n 1706126) 35 1704829 4 Decal - Maximum Tire Load 400S with 750LB Capacity 35 1704828 4 Decal - Maximum Tire Load 460SJ 36 1701505 1 Decal - Fuel 45 1701499 4 Decal - No Lift 46 Ref Decal - Lift Diagram Options: 46 3252672 1 Australian Spec 46 3252676 1 Dutch Spec 46 1705276 1 Finnish Spec 46 3252678 1 French Spec 46 3252675 1 German Spec 46 3252677 1 Italian Spec 46 1705276 1 Norwegian Spec 46 3252679 1 Spanish Spec 46 3252672 1 UK Spec 47 1704412 1 Decal - Hydraulic Oil Chart
REV
ITEM PART NUMBER QTY
DESCRIPTION
48 1704540 AR Decal - Storage Capacity Only (Prior to SN 0300072073) 49 1701691 4 Decal - No Step 50 1704726 4 Decal - Lock Latch 51 1704825 1 Decal - JLG Only (Prior to SN 0300072618) 52 1704885 2 Decal - WWW.JLG.COM 53 0641406 4 Bolt 1/4in-20NC x 3/4in
