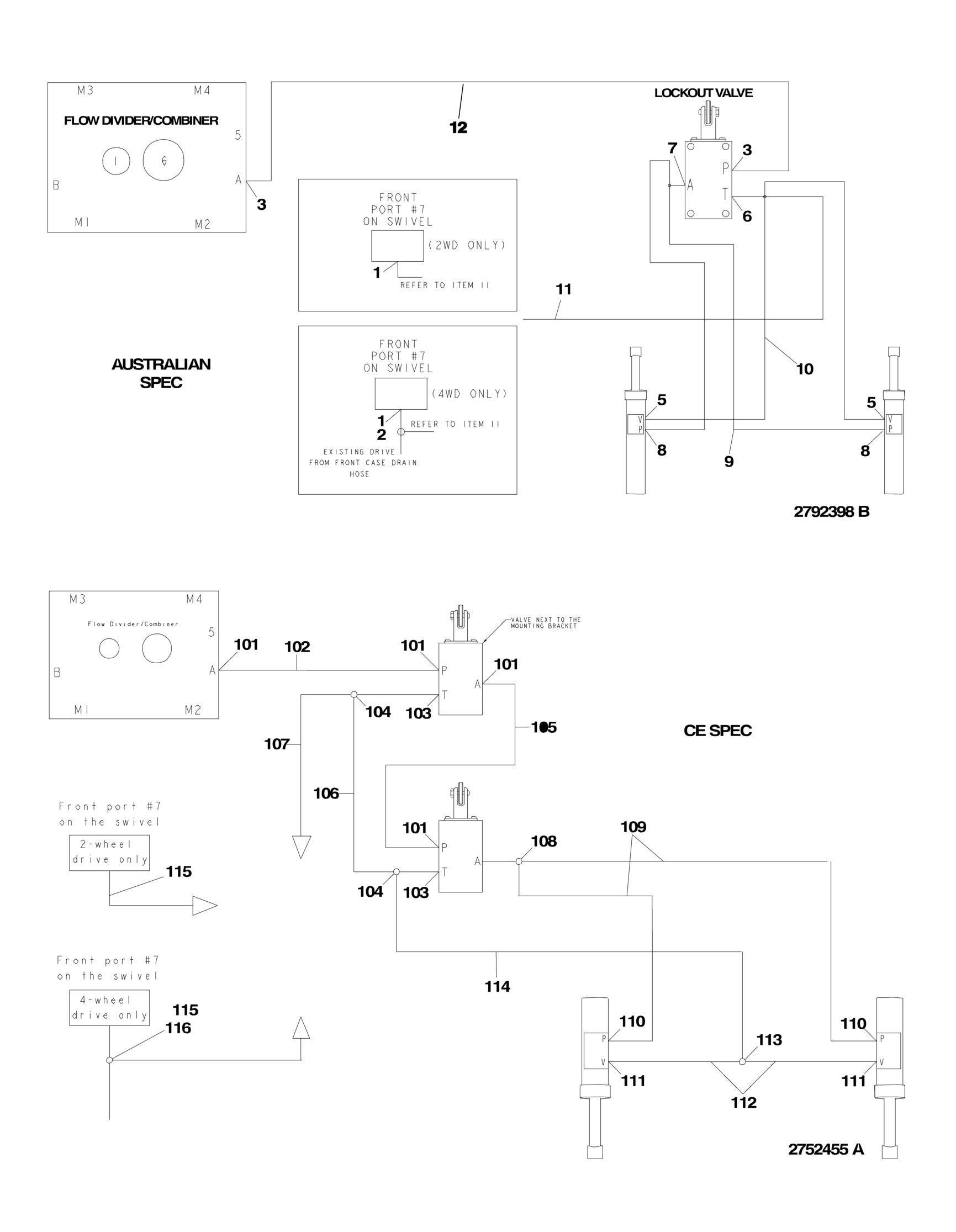

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

FIGURE 6-1. AXLE LOCKOUT HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY DESCRIPTION REV

2792398 Ref AXLE LOCKOUT HYDRAULIC DIAGRAM (AUSTRALIAN SPEC) 2 1 2220375 1 Fitting, Straight 2 2220385 1 Fitting, Tee 3 2220415 2 Fitting, Straight 5 2220501 2 Fitting, Elbow 6 2221043 1 Fitting, Tee 7 2220711 1 Fitting, Tee 8 2221040 2 Fitting, Elbow 9 2753035 2 Hose 10 2752632 2 Hose 11 2753342 1 Hose 12 2753339 1 Hose 2792455 Ref AXLE LOCKOUT HYDRAULIC DIAGRAM (CE SPEC) 2 101 2220415 4 Fitting, Straight 102 2753339 1 Hose 103 2220603 2 Fitting 104 2220635 2 Fitting 105 2751013 1 Hose 106 2752471 1 Hose 107 2753342 1 Hose 108 2221034 1 Fitting, Tee 109 2753035 2 Hose 110 2221040 2 Fitting, Elbow 111 2220501 2 Fitting, Elbow 112 2753118 2 Hose 113 2220490 1 Fitting, Tee 114 2752469 1 Hose 115 2220375 1 Fitting 116 2220385 1 Fitting, Tee
