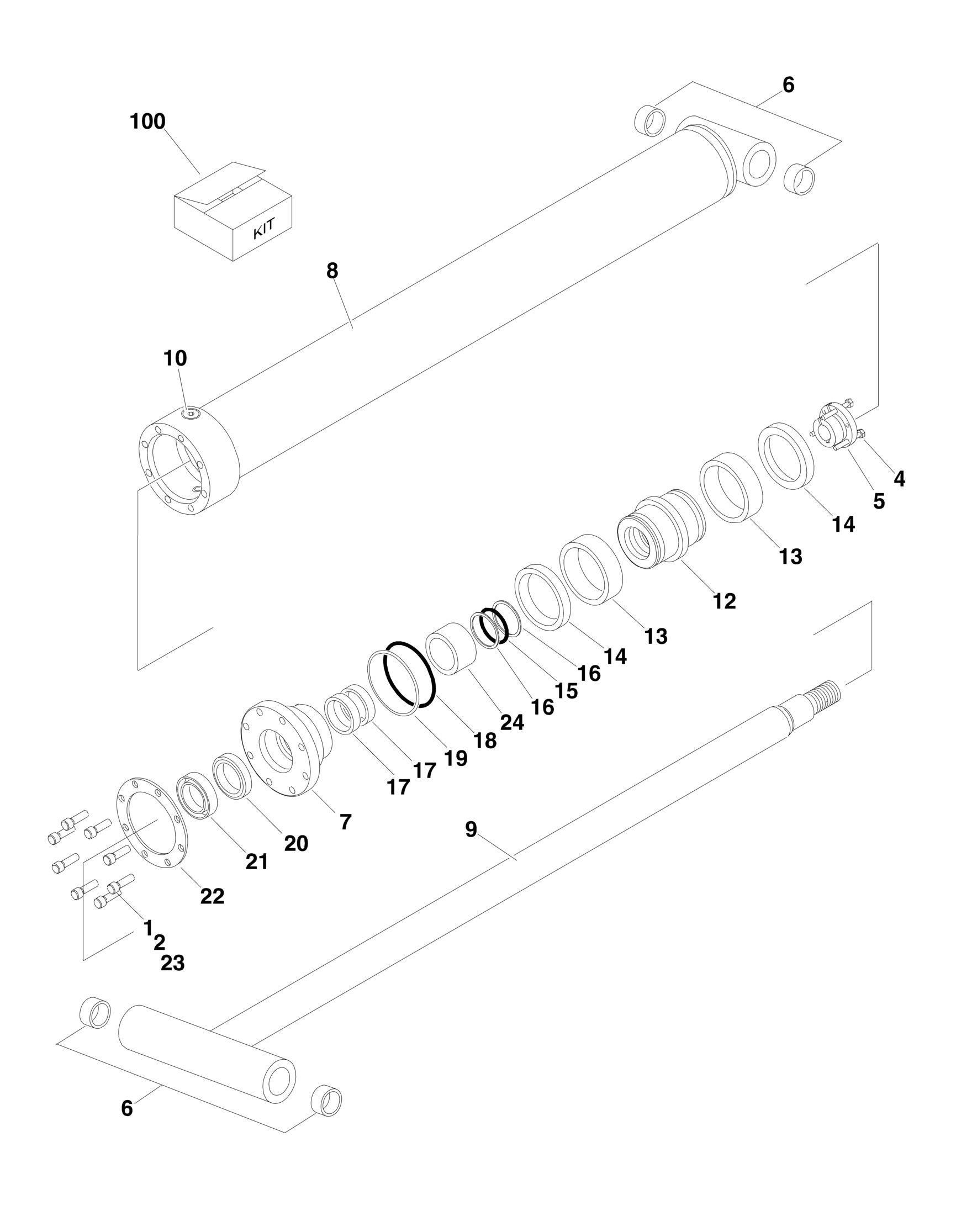

FIGURE 5-8. MASTER CYLINDER ASSEMBLY (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref MASTER CYLINDER ASSEMBLY 1683951 Ref Master Cylinder Assembly (Prior to SN 0300074573) 1684284 Ref Master Cylinder Assembly (SN 0300074573 through
0300096000)
1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 4 0630535 3 Bolt, Socket Head #10-24NC x 1-1/8in 5 0961894 1 Bushing, Tapered 6 0961951 4 Bushing 7 1683055 1 Head 8 Ref Barrel Weldment 8 1683949 1 Barrel Weldment (Prior to SN 0300074573) 8 1684283 1 Barrel Weldment (SN 0300074573 through 0300096000) 9 1683950 1 Rod Weldment 10 2220885 1 Plug, O-Ring #6 12 3480188 1 Piston 13 See Note NSS Ring, Hydrolock (Note: Use Item 100) 14 See Note NSS Ring, Guidelock (Note: Use Item 100) 15 See Note NSS O-Ring (Note: Use Item 100) 16 See Note NSS Ring, Back-up (Note: Use Item 100) 17 See Note NSS Ring, Wear (Note: Use Item 100) 18 See Note NSS O-Ring (Note: Use Item 100) 19 See Note NSS Ring, Back-up (Note: Use Item 100) 20 See Note NSS Seal, Poly (Note: Use Item 100) 21 See Note NSS Wiper (Note: Use Item 100) 22 3760369 1 Ring, Washer 23 3931620 8 Capscrew 3/8in-16NC x 1-1/4in 24 4566468 1 Spacer, Tube 100 2901301 1 Seal Kit (Includes Items 13-21)
REV
A B
