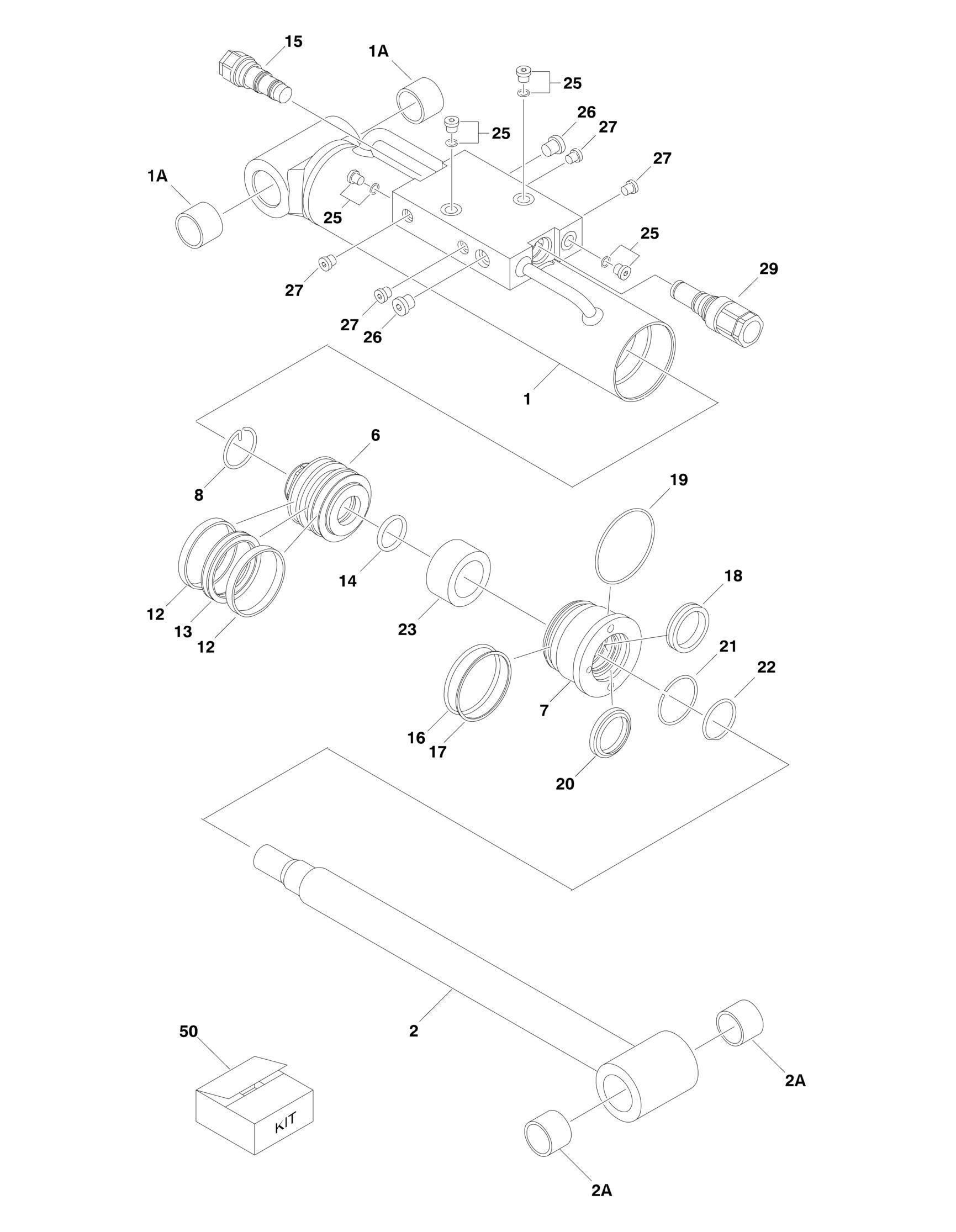

FIGURE 5-3. LEVEL (PLATFORM SLAVE) CYLINDER ASSEMBLY (400S - SERVICE REPLACEMENT CYLINDER
ITEM PART NUMBER QTY
DESCRIPTION
Ref Note: Original Equipment Cylinder may have been replaced
with Service Replacement Cylinder. Identify p/n stamped on cylinder before ordering parts.
Ref PLATFORM LEVEL CYLINDER ASSEMBLY 1001140586 Ref Platform Level Cylinder Assembly 400S (Service Replacement
for p/n 1683778)
1 70004137 1 Barrel 1A 0961951 2 Bushing 2 70004138 1 Rod 2A 0961951 2 Bushing 6 70003848 1 Head 7 70004136 1 Piston 8 70002224 1 Retainer 12 See Note NSS Ring, Wear (Note: Use Item 50) 13 See Note NSS Seal (Note: Use Item 50) 14 See Note NSS O-Ring (Note: Use Item 50) 15 4640509 1 Cartridge, Counterbalance Valve 15 2900792 1 Seal Kit - 4640509 Valve 16 See Note NSS O-Ring (Note: Use Item 50) 17 See Note NSS Ring, Back-up (Note: Use Item 50) 18 See Note NSS Seal (Note: Use Item 50) 19 See Note NSS O-Ring (Note: Use Item 50) 20 See Note NSS Wiper (Note: Use Item 50) 21 70003838 1 Ring, Retaining 22 70003856 1 O-Ring 23 70003839 1 Spacer 25 See Note 2 Plug (Note: Not Available for Purchase) 26 See Note 2 Plug (Note: Not Available for Purchase) 27 See Note 4 Plug (Note: Not Available for Purchase) 29 4640932 1 Cartridge, Counterbalance Valve 29 7011112 1 Seal Kit - 4640932 Valve 50 70004128 1 Seal Kit - 1001140596 Cylinder (Includes Items 12-14 & 16-20)
