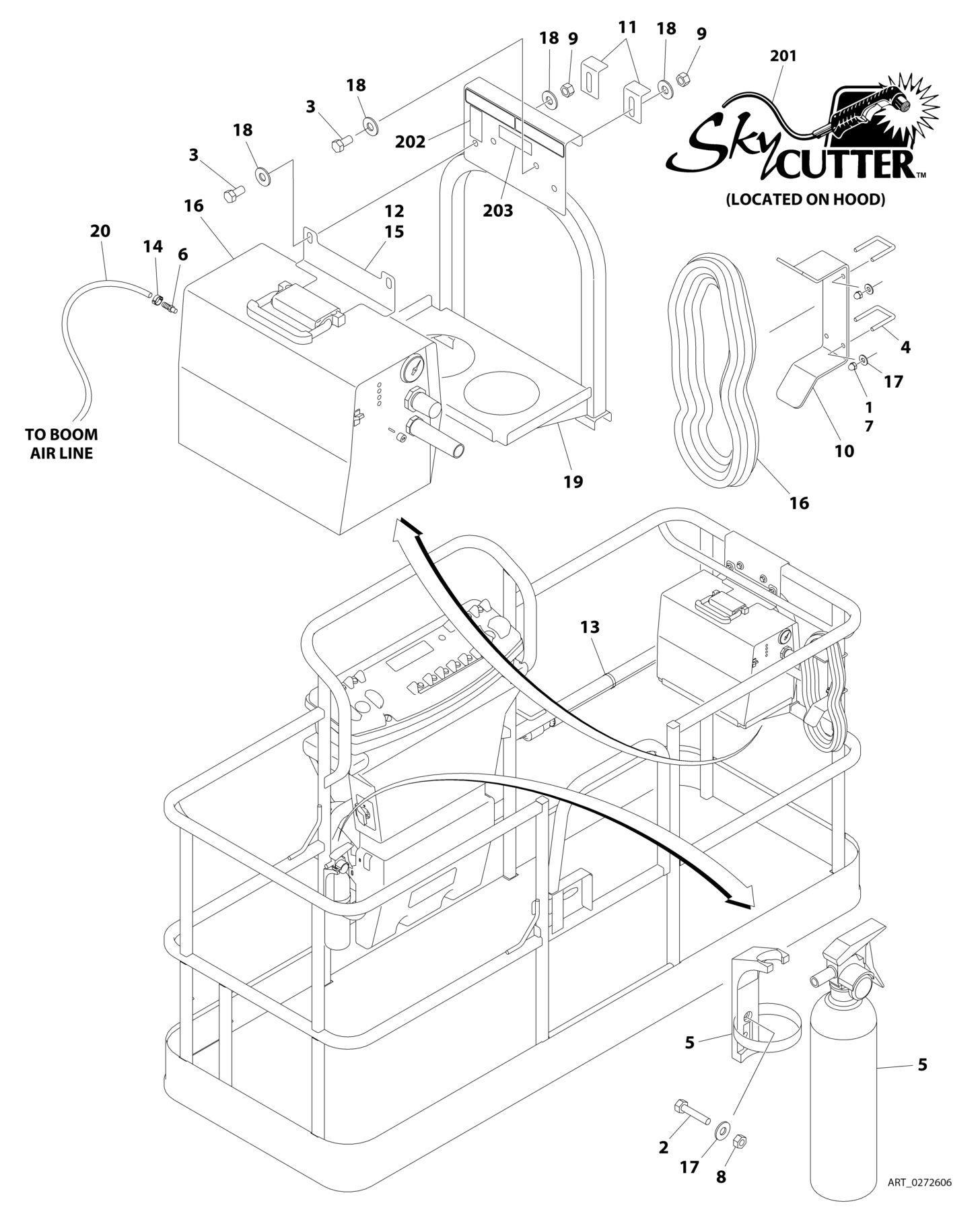

FIGURE 4-15. SKYCUTTER INSTALLATION

FIGURE 4-15. SKYCUTTER INSTALLATION

FIGURE 4-15. SKYCUTTER INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

0272606 Ref SKYCUTTER INSTALLATION Ref Note: When replacing platform on machines with SkyCutter

option, new bracket p/n 1001145405 must be purchased to accommodate SkyCutter components.

1 0100011 AR Compound, Locking 2 0641406 2 Bolt 1/4 x 3/4 3 0641606 4 Bolt 3/8 x 3/4 4 1320302 2 Clamp 5 2030010 1 Extinguisher, Fire 6 2180832 1 Fitting, NPT/Barbed 7 3300151 4 Nut 1/4 8 3311405 2 Nut 1/4 9 3311605 4 Nut 3/8 10 3573400 1 Bracket, Cable 11 3573641 2 Plate, Clamp (Use p/n 3577121) 12 3573643 1 Plate, Top Support 13 4240099 AR Tie, Wire 14 1320177 2 Clamp, Hose 15 4420037 AR Tape, Insulation 16 4530025 1 Plasma Cutter Assembly (See PLASMA CUTTER ASSEMBLY for Breakdown) 17 4751400 6 Washer 1/4 18 4751600 8 Washer 3/8 19 4846571 1 Support 20 2720160 4 ft/1.2m Hose 0272607 Ref SKYCUTTER DECAL INSTALLATION 201 1705490 2 Decal - SkyCutter 202 1705305 1 Decal - Weld Lead 203 1705466 1 Decal - Weight
