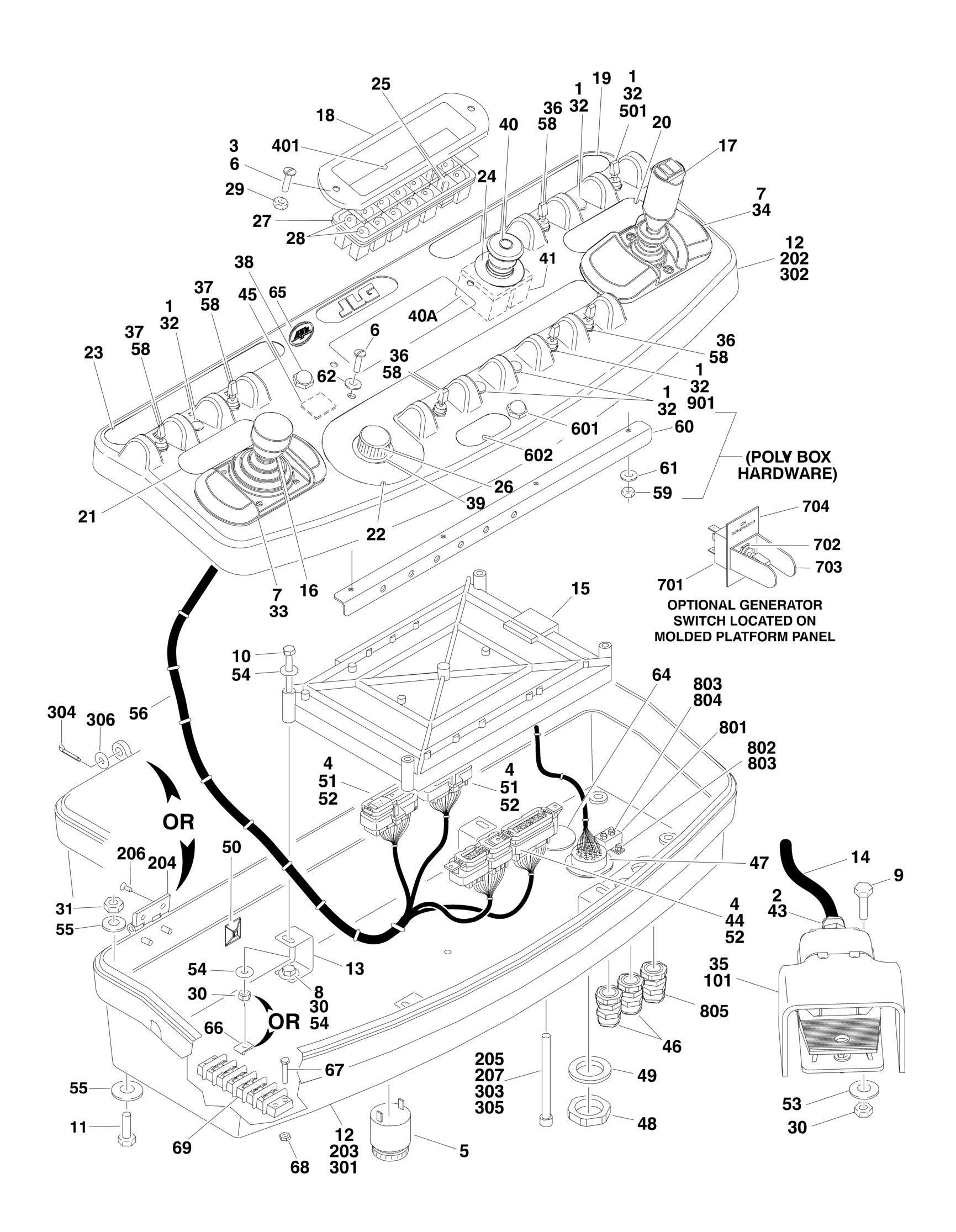

FIGURE 4-6. PLATFORM CONSOLE ASSEMBLY WITH ADE SYSTEM
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM CONSOLE ASSEMBLIES 0861510 Ref Poly Box (Prior to SN 0300068222) 0861509 Ref Aluminum Box (Prior to SN 0300068222) 0861571 Ref Die Cast Box (SN 0300068222 through 0300096000) 1 0100009 AR Sealant 2 0100020 AR Sealant 3 0100035 AR Compound, Locking 4 0100048 AR Grease, Dialectric 5 0140011 1 Alarm 6 0630464 2 Screw, Button Head #10-24NC x 1/2in 7 0641404 AR Bolt 1/4in-20NC x 1/2in 8 0641406 4 Bolt 1/4in-20NC x 3/4in 9 0641408 3 Bolt 1/4in-20NC x 1in (Prior to SN 0300065174) 10 0641414 4 Bolt 1/4in-20NC x 1-3/4in 11 0641610 4 Bolt 3/8in-16NC x 1-1/4in (Prior to SN 0300065174) 12 Ref Box, Console Options: 12 0861414 1 Box, Console - Aluminum (See Items 201-208 for Breakdown)
(Prior to SN 0300068222)
12 0861392 1 Box, Console - Poly (Prior to SN 0300068222) 12 0861537 1 Box, Console - Aluminum (See Items 301-306 for Breakdown)
(SN 0300068222 through 0300096000)
13 0902751 4 Bracket, Support 14 1060918 8 ft /2.4mm Cable, Electrical - 18/3
15 Ref Controller, Module Options: 15 1600313 1 Controller, Module (Prior to SN 0300077683) 15 1600375 1 Controller, Module (SN 0300077683 through 0300096000) 16 1600317 NLA Controller Assembly (Lift and Swing) (See CONTROLLER ASSEMBLY (LIFT AND SWING) (WITH ADE SYSTEM) for Breakdown) (Use p/n 1001129555) 17 1600318 NLA Controller Assembly (Drive and Steer) (See CONTROLLER ASSEMBLY (DRIVE AND STEER) (WITH ADE SYSTEM) for Breakdown) (Use p/n 1001166538) 18 1670829 1 Bezel 19 Ref Decal (Stop) Options: 19 1702564 1 Decal (Stop) (Prior to SN 0300073084) 19 1704997 1 Decal (Stop) (SN 0300073084 through 0300096000) 20 1702565 1 Decal (Drive and Steer) 21 1702566 1 Decal (Lift and Swing) 22 1702567 1 Decal (Function Speed) 23 1702676 1 Decal (Horn) 24 1704260 1 Decal - EMS 25 2420197 1 Gauge, Fuel 26 2560136 1 Handle, Knob 27 2760109 1 Housing, Display Light 28 2920129 11 Bulb, Light 29 3300408 2 Insert, Nylon 30 3311405 8 Locknut 1/4in-20NC 31 3311605 4 Locknut 3/8in-16NC (Prior to SN 0300065174) 32 Ref Plug, Hole Options: 32 3520028 6 Plug, Hole (1/2in) (Prior to SN 0300077683)
REV
D D E
ITEM PART NUMBER QTY DESCRIPTION REV
32 3520054 6 Plug, Hole (7/16in) (SN 0300077683 through 0300096000) 33 4340678 1 Support, Hand (Aluminum Box) (Left Side) (Prior to SN
0300068222)
34 4340684 1 Support, Hand (Aluminum Box) (Right Side) (Prior to SN
0300068222)
35 4360031 1 Footswitch 36 4360328 4 Switch, Toggle 37 4360331 1 Switch, Toggle 38 4360387 1 Switch, Pushbutton 39 4360407 1 Controller, Speed 40 4360475 1 Switch, Emergency Stop 40 7020175 1 Cap, Red 40A 7020176 1 Contact Block 41 4360476 1 Block, Contact 43 4460071 1 Connector, Strain Relief 44 4460226 2 Socket, Contact 45 4460234 3 Mount, Tie-Strap 46 4460428 2 Connector, Strain Relief 47 4460464 1 Terminal, Deutsch 48 4460470 1 Nut, Terminal 49 4460471 1 Lockwasher, Terminal 50 4460488 1 Base, Mounting 51 4460708 2 Receptacle - 15 Position 52 4460905 5 Seal, Plug 53 4740362 3 Washer, Fender (Prior to SN 0300065174) 54 4751400 AR Flatwasher 1/4in Regular 55 4751600 9 Flatwasher 3/8in Regular (Prior to SN 0300065174) 56 4922665 1 Harness, Platform Box (See ELECTRICAL SECTION for Breakdown) 57 4922666 1 Harness, Analyzer Cable (Not Shown - See ELECTRICAL SECTION for Breakdown) 58 3790012 5 O-Ring 59 3311005 4 Locknut #10-24NC 60 3571222 1 Plate, Relay Mounting 61 4751000 4 Flatwasher #10 Regular 62 4740120 4 Washer Nylon (SN 0300066372 through 0300096000) 63 0100081 AR Loctite #454 (Not Shown) (SN 0300068222 through
0300096000)
64 1671037 1 Cover (SN 0300068222 through 0300096000) 65 1705132 1 Decal - ADE (SN 0300068222 through 0300096000) 66 3300353 4 Nut, Tinnerman (SN 0300068222 through 0300096000) 67 0721008 1 Screw #10-24NC x 1in (SN 0300073084 through 0300096000) 68 3311001 1 Nut #10-24NC Only (SN 0300073084 through 0300096000) 69 4460007 1 Strip, Terminal Only (SN 0300073084 through 0300096000) 101 0272970 1 Footswitch Kit - Preassembled (Includes Items 2, 14, 35 & 43) A 0861414 Ref CONSOLE BOX ASSEMBLY (Prior to SN 0300068222) C 201 0100011 AR Compound, Locking (Not Shown) 202 0861414 1 Console Top (Note: Not Available for Purchase) 203 0861414 1 Console Bottom (Note: Not Available for Purchase) 204 2600211 2 Hinge 205 3311601 1 Nut 3/8in-16NC 206 3900224 8 Screw Countersunk
ITEM PART NUMBER QTY DESCRIPTION REV
207 3931672 1 Screw 3/8in-16NC x 4-1/2in 208 3520174 3 Plug, Hole (Not Shown - Located in Back of Lid) 0861537 Ref CONSOLE BOX ASSEMBLY (SN 0300068222 through
0300096000)
301 0861537 1 Console Bottom (Note: Not Available for Purchase) 302 0861537 1 Console Top (Note: Not Available for Purchase) 303 3311601 1 Nut 3/8in-16NC 304 Ref Pin Options: 304 3450304 2 Pin, Cotter 304 3420156 2 Hairpin 305 0630568 1 Screw 3/8in-16NC x 4-1/2in 306 4711500 2 Flatwasher 5/16in Thin Ref LIGHT PANEL DECAL INSTALLATIONS 0259964 Ref Australian Spec 400S with 500LB Capacity 0259968 Ref Australian Spec 400S with 750LB Capacity 0259964 Ref Australian Spec 460SJ 0259963 Ref CE Spec 400S C
1 1 1 1
0259963 Ref CE Spec 460SJ 1
401 Ref Decal Options: 401 1704486 1 Australian Spec 400S with 230KG Capacity 401 1704514 1 Australian Spec 400S with 750LB Capacity 401 1704486 1 Australian Spec 460SJ 401 1704485 1 CE Spec 400S & 460SJ Ref LIGHTS INSTALLATION (OPTIONAL) 0271343 Ref Headlights and Taillights (Prior to SN 0300064509) 0272018 Ref Headlights and Taillights (SN 0300064509 through
0300096000)
0274574 Ref Chassis Illumination Lights (SN 0300064509 through
0300096000)
501 4360336 1 Switch, Toggle 501 3790012 1 O-Ring 0271355 Ref SOFT TOUCH SYSTEM INSTALLATION (OPTIONAL) 2 1
1
B
601 4360387 1 Switch, Pushbutton 602 1702938 1 Decal - Soft Touch Override Ref GENERATOR INSTALLATION (OPTIONAL) 701 4360336 1 Switch, Toggle 702 4740397 1 Bushing 703 4060802 1 Guard, Switch 704 3251102 1 Decal - Generator ON/OFF 0270814 Ref PLATFORM WORKLIGHT INSTALLATION (OPTIONAL) 3 801 4360232 1 Breaker, Circuit - 15Amp 802 0721003 2 Bolt #10-24NC x 3/8in 803 4761000 4 Lockwasher #10 804 3311001 2 Nut #10-24NC 805 4460598 1 Connector, Strain Relief 0271340 Ref JIB SWITCH INSTALLATION (460SJ ONLY) 1/A 901 4360328 1 Switch, Toggle 901 3790012 1 O-Ring
