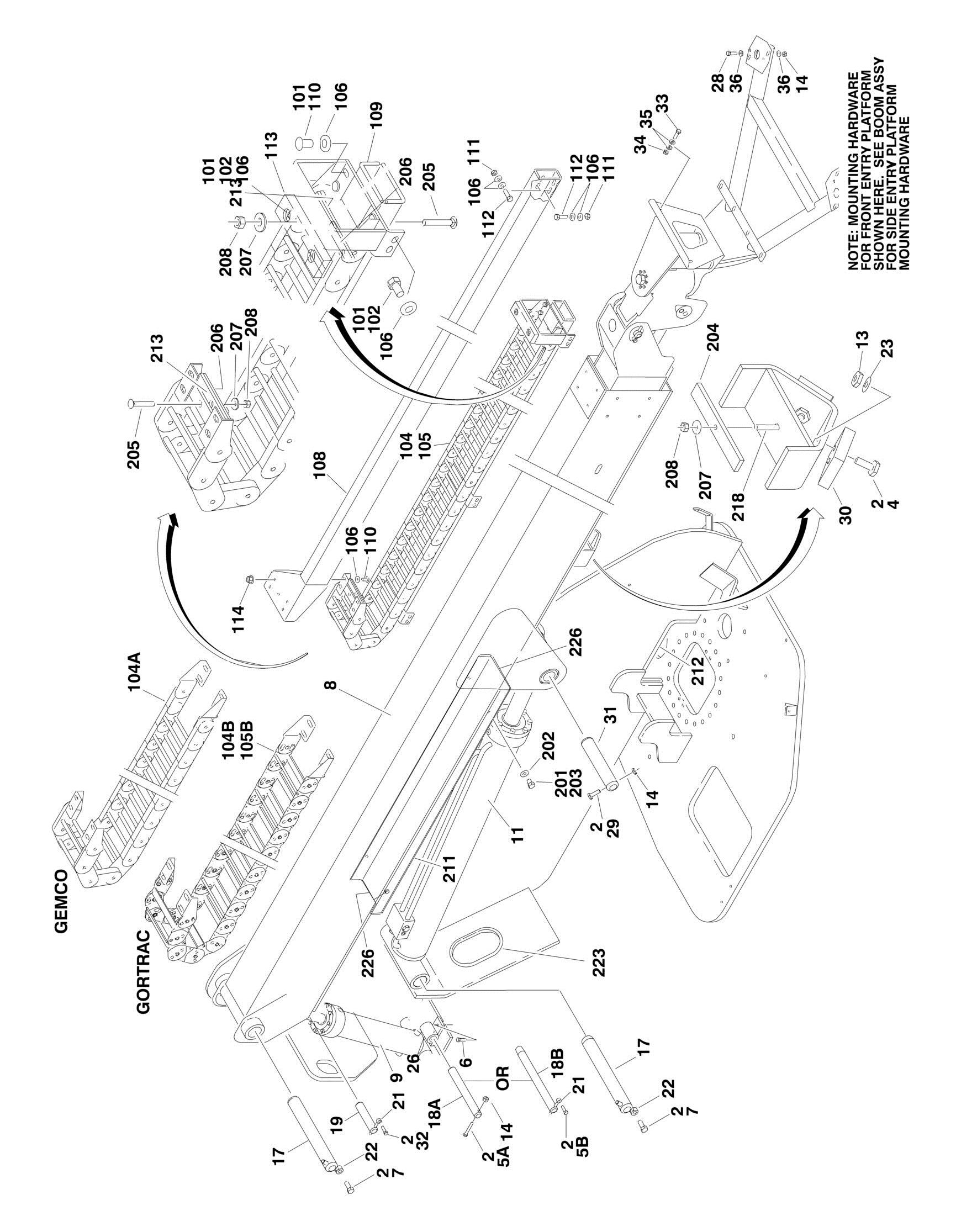

FIGURE 3-1. BOOM INSTALLATIONS

FIGURE 3-1. BOOM INSTALLATIONS

FIGURE 3-1. BOOM INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

Ref BOOM AND CYLINDERS INSTALLATION 0259135 Ref Australian Spec 400S (Front Entry Platform) 0259136 Ref Australian Spec 460SJ (Front Entry Platform) 0270295 Ref CE Spec 400S (Front Entry Platform) 0270296 Ref CE Spec 460SJ (Front Entry Platform) 0272591 Ref Australian and CE Specs 400S (Side Entry Platform) (Prior to

SN 0300074573)

0273065 Ref Australian and CE Specs 400S (Side Entry Platform) (SN

0300074573 through 0300096000)

0272592 Ref Australian and CE Specs 460SJ (Side Entry Platform) (Prior to

SN 0300074573)

0272999 Ref Australian and CE Specs 460SJ (Side Entry Platform) (SN

0300074573 through 0300096000)

2 0100011 AR Compound, Locking 4 0641610 4 Bolt 3/8in-16NC x 1-1/4in 5 Ref Bolt Options: 5A 0641620 1 Bolt 3/8in-16NC x 2-1/2in (Prior to SN 0300074573) 5B 0641608 1 Bolt 3/8in-16NC x 1in (SN 0300074573 through 0300096000) 6 0641814 4 Bolt 1/2in-13NC x 1-3/4in (Prior to SN 0300074573) 7 0642012 2 Bolt 5/8in-11NC x 1-1/2in 8 Ref Boom Assembly Options: 8 Ref Boom Assembly 400S (See BOOM ASSEMBLY - 400S for Breakdown) 8 0801223 1 Australian Spec (Front Entry Platform) 8 0801244 1 CE Spec (Front Entry Platform) 8 0801359 1 Australian/CE Spec (Side Entry Platform) 8 Ref Boom Assembly 460SJ (See BOOM ASSEMBLY - 460SJ for Breakdown) 8 0801186 1 Australian Spec (Front Entry Platform) 8 0801245 1 CE Spec (Front Entry Platform) 8 0801360 1 Australian/CE Spec (Side Entry Platform) 9 Ref Master Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 9 1683951 1 Cylinder,Master (Prior to SN 0300074573) 9 1684284 NLA Cylinder,Master (Use p/n 1001140587) (SN 0300074573

through 0300096000)

11 1683776 1 Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 13 3311601 4 Nut 3/8in-16NC 14 3311605 AR Locknut 3/8in-16NC 17 3422564 2 Pin, Pivot 18 Ref Pin, Pivot Options: 18A 3422690 1 Pin, Pivot (Prior to SN 0300074573) 18B 3422566 1 Pin, Pivot (SN 0300074573 through 0300096000) 19 3422561 1 Pin, Pivot 21 3841143 AR Keeper, Pin - 3/8in 22 3841258 2 Keeper, Pin - 5/8in 23 4711600 8 Flatwasher 3/8in Thin 26 4846128 2 Cylinder Mount Weldment Only (Prior to SN 0300074573) 28 0681610 6 Bolt 3/8in-16NC x 1-1/4in (Grade 8) (Front Entry Platform) 29 0681632 1 Bolt 3/8in-16NC x 4in (Grade 8) 30 3340853 2 Pad, Boom Rest

REV

H F B B A

A

A

A

ITEM PART NUMBER QTY DESCRIPTION

31 3422851 1 Pin, Boom Lift 32 0641605 1 Bolt 3/8in-16NC x 5/8in 33 0641820 2 Bolt 1/2in-13NC x 2-1/2in (Front Entry Platform) 34 3311805 2 Locknut 1/2in-13NC (Front Entry Platform) 35 4751800 4 Flatwasher 1/2in Regular (Front Entry Platform) 36 4751600 12 Flatwasher 3/8in Regular (Front Entry Platform) Ref POWERTRACK INSTALLATION 0270213 Ref Standard Powertrack C

0272897 Ref Inverted Powertrack

REV

B

101 0100011 AR Compound, Locking 102 0641605 10 Bolt 3/8in-16NC x 5/8in 104 Ref Power Track Assembly Options: Ref Note: Original Power Track may have been replaced with

a Service Replacement. Visually identify the power track before ordering parts.

104 1180336 NLA Standard Power Track Assembly (Original Equipment) (Use p/n 1001225901) 104 1001099830 NLA Standard Power Track Assembly (Service Replacement) (Use p/n 1001225901) 104 1001225901 1 Standard Power Track Assembly (Service Replacement) 104A Ref Gemco Brand Replacement Parts: 104A 7006140 AR Repair Section for p/n 1180336 Power Track (Includes 10 Link Pins, 4 Radius Links, 8 Carrier Links, 4 Rod Carrier, 8 Screws, 10 Slugs and 20 Bearing Plates) 104A 7006151 2 pr. Feet, Mounting for p/n 1180336 Power Track (Includes 2 Round Spacers, Left and Right Mounting Feet) 104A 7006152 AR Pin Kit for p/n 1180336 Power Track (Includes 1 Pin, 1 Retaining Ring and Set of 4 Washers (Different Sizes)

104B

Ref Gortrac Brand Replacement Parts: 104B 70001994 AR Repair Section - 1001099830 Power Track 104B 70001995 1 Mounting Bracket Kit for 1001099830 Power Track 104B 70006268 AR Repair Section - 1001225901 Power Track 104B 70006277 1 Mounting Bracket Kit for 1001225901 Power Track 105 1180379 1 Inverted Power Track Assembly 105B 7016505 AR Repair Section for 1180379 Power Track (Includes extra pin assemblies for each end but no mounting feet) 105B 7016524 2 pr. Feet, Mounting for 1180379 Power Track (Includes 1 each of Left and Right Mounting Feet) 105B 7006137 AR Pin Kit for 1180379 Power Track (Includes 1 Pin, 1 Retaining Ring and Set of 4 Washers (Different Sizes) 106 4711600 26 Flatwasher 3/8in Thin 108 4846216 1 Tube, Push 109 4846186 1 Tube, Carrier 110 3900283 8 Screw, Button Head 3/8in-16NC x 3/4in 111 3311601 4 Nut 3/8in-16NC 112 0641609 4 Bolt 3/8in-16NC x 1-1/8in 113 3340453 1 Pad, Wear 114 3311608 4 Nut, Flanged 3/8in-16NC Ref BOOM CABLES INSTALLATION 0259191 Ref Boom Cables Installation 400S (Prior to SN 0300064404) 9 0271162 Ref Boom Cables Installation 400S (SN 0300064404 through

0300096000)

8 0272612 Ref Boom Cables Installation 400S (7500w 60Hz Generator -

SkyPower)

4

ITEM PART NUMBER QTY DESCRIPTION

REV

0259192 Ref Boom Cables Installation 460SJ (Prior to SN 0300064404) 9 0271161 Ref Boom Cables Installation 460SJ (SN 0300064404 through

0300096000)

8 0272613 Ref Boom Cables Installation 460SJ (7500w 60Hz Generator -

SkyPower)

4 201 0100011 AR Compound, Locking 202 4711600 4 Flatwasher 3/8in Thin 203 0641604 4 Bolt 3/8in-16NC x 1/2in 204 3572200 1 Clamp, Block 205 0630566 2 Bolt, Carriage 5/16in-18NC x 2-1/4in 206 3572345 4 Clamp, Block 207 4751500 3 Flatwasher 5/16in Regular 208 3311505 3 Locknut 5/16in-18NC 211 3572165 Cover 212 4060919 6 ft/1.8m Trim, Protection 213 3340897 2 Pad 218 0641516 1 Bolt 5/16in-18NC x 2in 223 4060808 5 ft/1.5m Trim, Protection 226 4060805 1.5 ft/ 0.5m Trim, Protection
