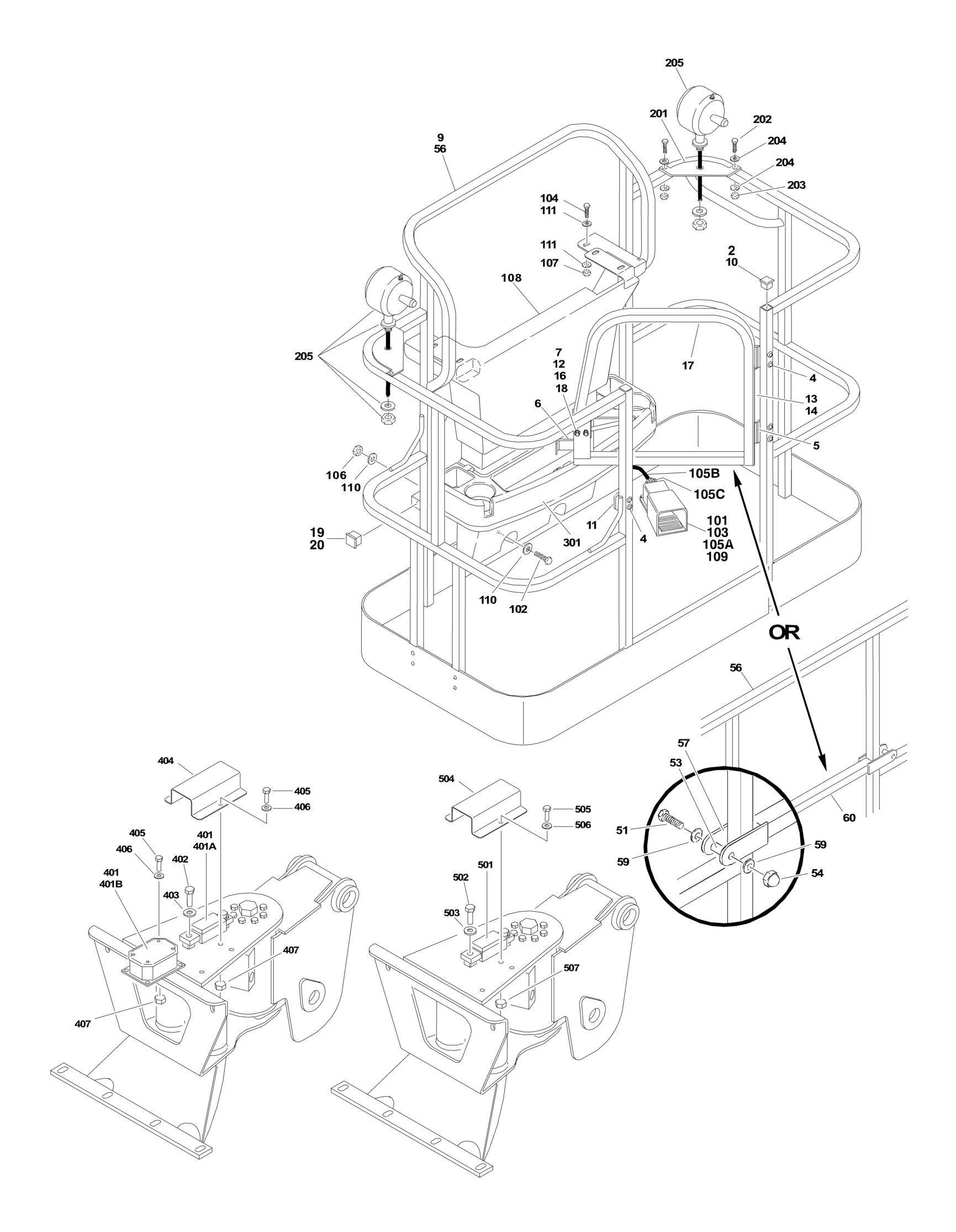

FIGURE 4-1. PLATFORM INSTALLATION (FRONT ENTRY PLATFORM
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM ASSEMBLIES (WITH GATE) 3510714 Ref 4ft (1.22m) with No Mesh (Australian Specs) 3510725 Ref 4ft (1.22m) with Mesh to Top Rail (Australian Specs) 3510742 Ref 6ft (1.83m) with No Mesh (Australian Specs) 3510754 Ref 6ft (1.83m) with Mesh to Top Rail (Australian Specs) 3510749 Ref 8ft (2.44m) with No Mesh (Australian Specs) 3510753 Ref 8ft (2.44m) with Mesh to Top Rail (Australian Specs) Ref Note: Replacement Decals Must be purchased separately -
See DECAL SECTION.
2 0100040 AR Sealant, RTV Silicone 4 2080040 13 Fastener, Huck 5 Ref Hinge Options: 5 2600219 2 Hinge (Prior to SN 0300068521) 5 2600287 2 Hinge (SN 0300068521 through 0300096000) 6 2940074 1 Latch 7 3311005 4 Locknut #10-24NC 9 See Note 1 Platform Weldment (Note: Not Available - Purchase Platform Assembly) 10 3520072 3 Cap-Plug 11 3539685 1 Plate, Latch 12 3911008 4 Screw #10-24NC x 1in 13 4060803 6 in/15cm Trim 14 4220165 1 Stop, Gate 16 4751000 8 Flatwasher #10 Regular 17 Ref Gate Weldment Options: 17 4845426 1 No Mesh/Self-Closing Gate 17 4845951 1 Mesh to Top Rail/Self-Closing Gate 18 4761000 4 Lockwasher #10 19 0100010 AR Adhesive 20 3520172 2 Plug Ref PLATFORM ASSEMBLIES (WITH LIFT BAR) 3510696 Ref 4ft (1.22m) (CE Specs) 3510716 Ref 6ft (1.83m) (CE Specs) 3510717 Ref 8ft (2.44m) (CE Specs) 3510774 Ref 8ft (2.44m) (CE Specs) 51 0641418 2 Bolt 1/4in-20NC x 2-1/4in 53 0961845 2 Bushing 54 3300151 2 Nut, Acorn 1/4in-20NC 56 See Note 1 Platform Weldment Note: Not Available - Purchase Platform Assembly) 57 4420055 4 Tape 59 4740411 4 Washer, Nylon 60 4845288 1 Weldment, Slidebar Ref FOOTSWITCH AND COVERS INSTALLATION 0272035 Ref Aluminum Box Installation 0272036 Ref Poly Box Installation 101 0100020 AR Sealant, Pipe 102 0641406 4 Bolt 1/4in-20NC x 3/4in 103 0641408 3 Bolt 1/4in-20NC x 1in 104 0641610 4 Bolt 3/8in-16NC x 1-1/4in
REV
C C E F E F
B 1/B 1/B A
A A
ITEM PART NUMBER QTY DESCRIPTION REV
105 Ref Console Box Assembly (Not Shown - See PLATFORM CONSOLE ASSEMBLY WITHOUT ADE SYSTEM AND PLATFORM CONSOLE ASSEMBLY WITH ADE SYSTEM For Breakdown) 105A 4360031 1 Footswitch Options: 105A 7000625 2 Block, Contact for 4360031 Footswitch 105B 1060918 8 ft/2.4m Cable, Electrical - 18/3 105C 4460071 1 Connector, Strain Relief 106 3311405 4 Locknut 1/4in-20NC 107 3311605 4 Locknut 3/8in-16NC 108 3380434 1 Panel, Poly 109 4740362 7 Washer, Fender 110 4751400 5 Flatwasher 1/4in Regular 111 4751600 8 Flatwasher 3/8in Regular Ref WORKLIGHTS INSTALLATION (optional) 0258309 Ref Standard (Prior to SN 0300064404) 0270814 Ref ADE System (SN 0300064404 through 0300096000) 1/A 3/E
201 3536089 2 Plate, Mounting 202 0641414 4 Bolt 1/4in-20NC x 1-3/4in 203 3311405 4 Locknut 1/4in-20NC 204 4711400 8 Flatwasher 1/4in Thin 205 2920140 2 Worklight 206 4240099 10 Tie-Strap (Not Shown) 207 2820035 9 Loom, Vinyl (Not Shown) 209 4460598 1 Connector, Strain Relief (Not Shown - Located at Console Box) 210 4920018 18 in/46cm Wire, Black (Not Shown) Ref TRAY INSTALLATIONS (OPTIONAL) 301 1580012 1 Tray, Storage (Center) 302 1580013 1 Tray, Storage (Rail Mounted - Not Shown) Ref PLATFORM OVERLOAD INSTALLATION 0270392 Ref Overload (Prior to SN 0300058378) 0259233 Ref Overload (SN 0300058378 through 0300062885) 0270392 Ref Overload (SN 0300062886 through 0300064259)
B 4/C B 0271474 Ref Overload - Lift Down (Prior to SN 0300062886) 2/B 0271542 Ref Overload - Lift Down (SN 0300062886 through 0300064259) 1/A 401 Ref Load Sensing Assembly Options: 401 2901943 1 Load Sensing Assembly (Prior to SN 0300058378) 401 2901811 1 Load Sensing Assembly (SN 0300058378 through
0300062885)
401 2901943 1 Load Sensing Assembly (SN 0300062886 through
0300096000)
401A Ref Transducer, Pressure 401A See Note 1 Transducer, Pressure (Note: Not Available for Purchase)
(Prior to SN 0300058378)
401A 3990109 1 Transducer, Pressure (SN 0300058378 through
0300062885)
401A See Note 1 Transducer, Pressure (Note: Not Available for Purchase)
(SN 0300062886 through 0300096000)
401B Ref Card, Control Options: 401B See Note 1 Card, Control (Note: Not Available for Purchase) (Prior to
SN 0300058378)
401B 7023332 1 Card, Control (SN 0300058378 through 0300062885) 401B See Note 1 Card, Control (Note: Not Available for Purchase) (SN
ITEM PART NUMBER QTY
DESCRIPTION 0300062886 through 0300096000)
401B 7023331 1 Fuse 401B 7023333 1 Holder, Fuse 402 0701010 2 Bolt 10mm x 20mm 403 4812000 2 Flatwasher 10mm 404 Ref Cover, Load Cell Options: 404 1670905 1 Cover, Load Cell (Prior to SN 0300058378) 404 1670900 1 Cover, Load Cell (SN 0300058378 through 0300062885) 404 1670905 1 Cover, Load Cell (SN 0300062886 through 0300096000) 405 0641407 4 Bolt 1/4in-20NC x 7/8in 406 4761400 4 Lockwasher 1/4in 407 3311401 4 Nut 1/4in-20NC 0271543 Ref PLATFORM LOAD SENSING DEVICE INSTALLATION (FRENCH
SPEC) (WITH ADE SYSTEM) (SN 0300064259 through 0300064508)
0272169 Ref PLATFORM LOAD SENSING DEVICE INSTALLATION (FRENCH
SPEC) (WITH ADE SYSTEM) (SN 0300064509 through 0300096000)
501 Ref Transducer, Pressure Options: 501 3990109 1 Transducer, Pressure (Prior to SN 0300064509) 501 3990108 1 Transducer, Pressure (SN 0300064509 through 0300096000) 502 0701010 2 Bolt 10mm x 20mm 503 4812000 2 Flatwasher 10mm 504 Ref Cover, Load Cell Options: 504 1670900 1 Cover, Load Cell (Prior to SN 0300064509) 504 1670905 1 Cover, Load Cell (SN 0300064509 through 0300096000) 505 0641407 2 Bolt 1/4in-20NC x 7/8in 506 4761400 2 Lockwasher 1/4in 507 3311401 2 Nut 1/4in-20NC 509 4460226 4 Terminal, Socket (Not Shown) (Located in Console Box)
REV
1A
1A
