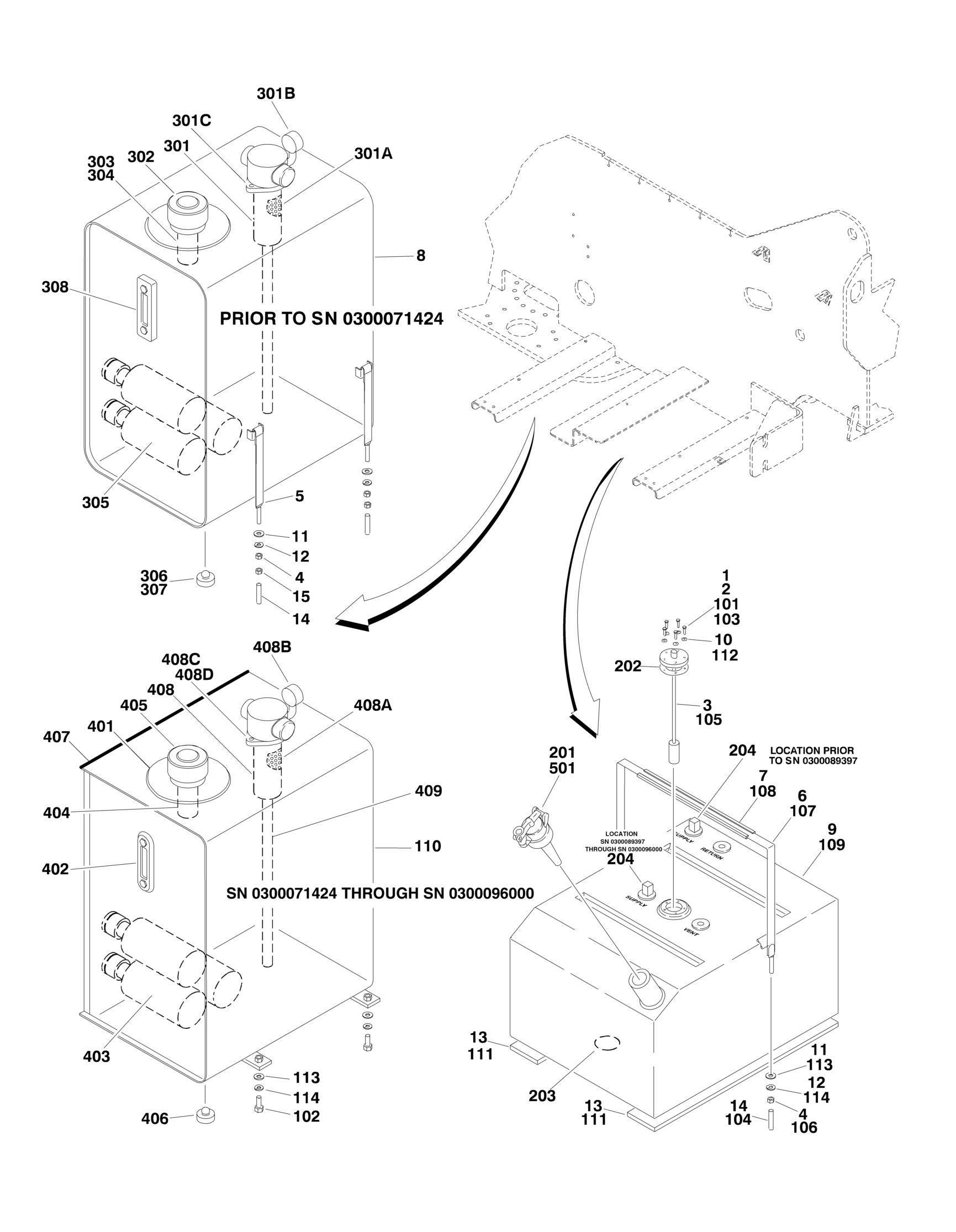

FIGURE 2-14. TANK INSTALLATIONS

FIGURE 2-14. TANK INSTALLATIONS

FIGURE 2-14. TANK INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION REV

Ref TANKS INSTALLATION OPTIONS 0259143 Ref Tanks Installation (Prior to SN 0300071424) E

1 0100011 AR Compound, Locking 2 0731007 5 Screw, Indented #10-24NC 3 2420191 1 Gauge, Fuel Level 3 3960525 1 Gasket 4 3311601 6 Nut 3/8in-16NC 5 4240112 4 Strap, Tank Mount 6 4240135 1 Strap, Tank Mount 7 4280295 24 in/61cm Strip, Bumper 8 4400423 1 Hydraulic Tank Assembly (See Items 301-308 for Breakdown) 9 4400429 1 Tank, Fuel (See Items 201-204 for Breakdown) 10 4751000 5 Flatwasher #10 Regular 11 4751600 6 Flatwasher 3/8in Regular 12 4761600 6 Lockwasher 3/8in 13 4420038 4 ft/1.3m Tape, Rubber 14 1120532 5 Cap, Protector 15 3311602 4 Nut Jam 3/8in-16NC 0272731 Ref Tank Installation (SN 0300071424 through 0300096000) B 101 0100011 AR Compound, Locking 102 0641608 4 Bolt 3/8in-16NC x 1in 103 0731007 5 Screw, Indented #10-24NC 104 1120532 2 Cap, Protector 105 2420191 1 Gauge, Fuel Level 105 3960525 1 Gasket 106 3311601 2 Nut 3/8in-16NC 107 4240135 1 Strap, Tank Mount 108 4280295 2.2 ft/0.7m Strip, Bumper 109 4400429 1 Tank, Fuel (See Items 201-204 for Breakdown) 110 4400450 1 Hydraulic Tank Assembly (See Items 401-409 for Breakdown) 111 4420038 6 ft/1.8m Tape, Rubber 112 4751000 5 Flatwasher #10 Regular 113 4751600 6 Flatwasher 3/8in Regular 114 4761600 6 Lockwasher 3/8in 4400429 Ref FUEL TANK ASSEMBLY H 201 See Note 1 Cap, Fill (Note: Tank Includes Non-Locking Cap) (Note: See Item 501) 202 7016680 1 Gasket, Cover Plate 203 See Note 1 Plug (Note: Not Available - Purchase Locally) 204 7020043 1 Tube Ref Hydraulic Tank Assembly Options 4400423 Ref Hydraulic Tank Assembly (Prior to SN 0300071424) D 301 7020226 1 Filter 301A 7023205 1 Element 301B See Note 1 Gauge, Pressure (Note: Not Available for Purchase) 301C 7023306 1 Seal 302 7020252 1 Cap, Fill 303 7014810 1 Filler Neck Assembly

ITEM PART NUMBER QTY DESCRIPTION

304 7014816 1 Screen 305 7014801 3 Strainer 306 7014813 1 Plug, Magnetic 307 7014812 1 Magnet 308 7014802 1 Gauge, Sight 4400450 Ref Hydraulic Tank Assembly (SN 0300071424 through

0300096000)

401 7024439 1 Cover 401 7024440 Gasket 402 7024441 1 Gauge, Sight 403 7024442 3 Strainer 404 7024443 1 Filler Neck Assembly 404 7024445 1 Strainer 405 7024444 1 Cap, Fill 406 7024446 1 Plug, Magnetic 407 4060803 22 in/56cm Flex-Trim 408 7020226 1 Filter 408A 7023205 1 Element 408B See Note 1 Gauge, Pressure (Note: Not Available for Purchase) 408C 7023306 1 Seal 408D 70002768 1 Spring 409 70001863 1 Pipe 501 Ref FUEL CAP OPTIONS: 501 1120484 Ref Locking Cap (Red) 501 1120487 Ref Locking Cap (Blue) 501 7016314 Ref Standard Non-Locking Cap

REV

C
