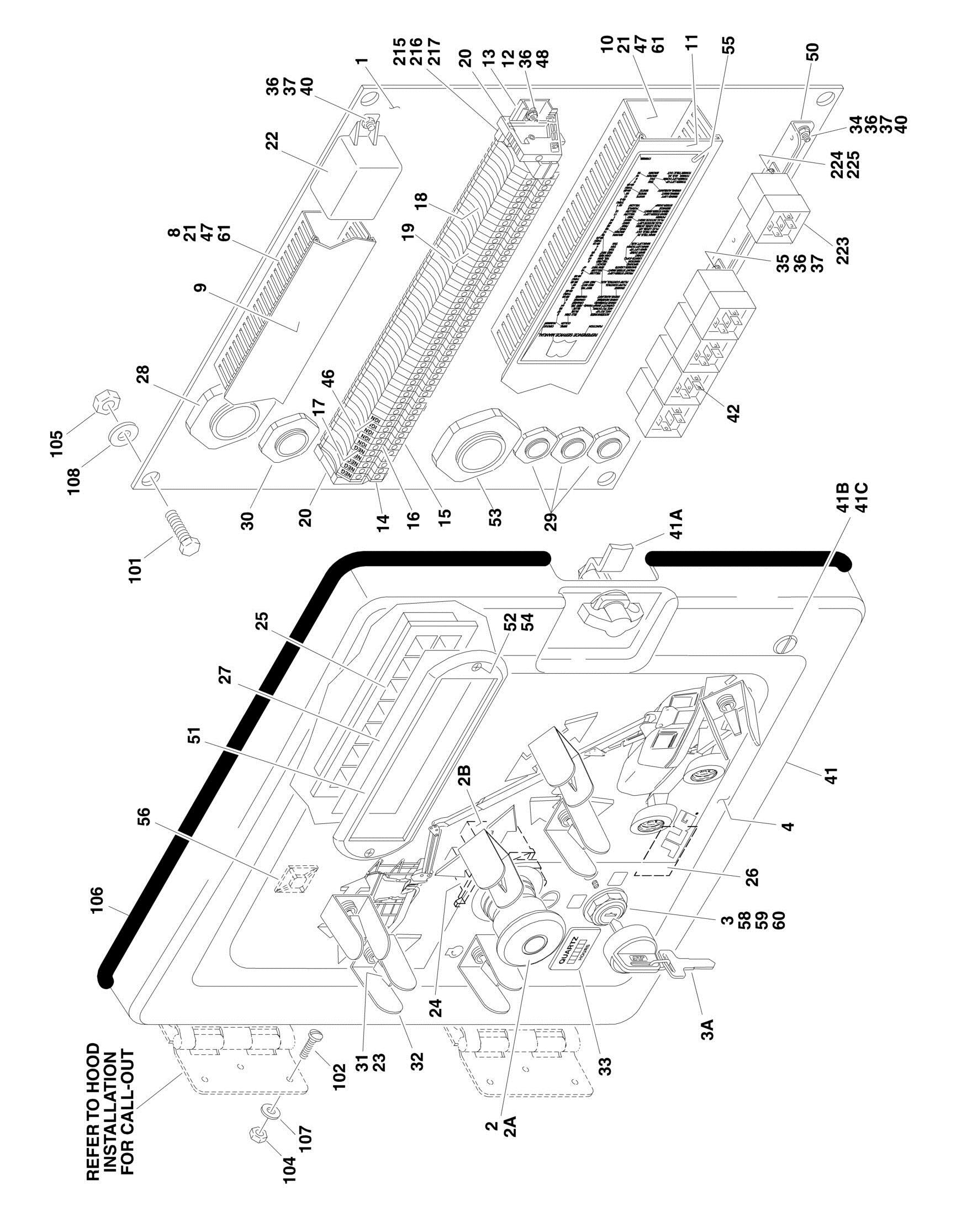

FIGURE 2-15. GROUND CONTROL BOX ASSEMBLY WITHOUT ADE SYSTEM

FIGURE 2-15. GROUND CONTROL BOX ASSEMBLY WITHOUT ADE SYSTEM

FIGURE 2-15. GROUND CONTROL BOX ASSEMBLY WITHOUT ADE SYSTEM

ITEM PART NUMBER QTY

DESCRIPTION

Ref GROUND CONTROL BOX ASSEMBLIES 0861360 Ref Ground Control Box Assemblies 400S 0861361 Ref Ground Control Box Assemblies 460SJ 1 3572003 1 Plate 2 4360475 1 Switch, Emergency Stop 2A 7020175 1 Cap, Mushroom Head 2B 7020176 1 Block, Contact 3 4360470 1 Switch, Key 3A 2860030 1 Key 4 Ref Decal - Faceplate Options: 4 1704465 1 Decal - Faceplate 400S 4 1704466 1 Decal - Faceplate 460SJ 5 4922347 1 Engine Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 6 4922346 1 Valve Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 7 4922349 1 Ground Control Box Harness Assembly (Not Shown - See ELECTRICAL SECTION for Breakdown) 8 1840020 1 Duct, Wiring - 2in/5cm 9 1840013 1 Duct, Cover - 2in/5cm 10 1840014 1 Duct, Wiring - 3in/7.6cm 11 1840015 1 Duct, Cover - 3in/7.6cm 12 0731004 2 Screw #10-32NF x 1/2in 13 3641182 1 Rail 14 4460602 1 Barrier, Terminal 15 4460601 10 Block, Terminal 16 4460603 1 Bussbar - 10 Position (Requires being cut into (2) 5 position bussbars) 17 4460631 1 Marker, Terminal (Negative) 18 4460600 46 Block, Terminal 19 4460628 2 Marker, Terminal (1-50) 20 4460607 2 Stop, Terminal 21 4750600 4 Flatwasher #6 Regular 22 3740112 1 Relay, Bosch 23 4360314 AR Switch, Toggle 24 4360476 1 Switch, Contact Block 25 2760105 1 Housing, Display Light 26 4420038 1 ft/.3m Insulation, Adhesive Foam 27 1702610 1 Decal - Ground Control Display 28 4460526 1 Connector, Strain Relief 29 4460428 3 Connector, Strain Relief 30 4460426 1 Connector, Strain Relief 31 4740444 6 Washer, Special 32 4060906 6 Shield, Toggle Switch 33 2420172 1 Gauge, Hourmeter 36 4751000 4 Flatwasher #10 Regular 37 0721004 10 Screw #10-24NC x 1/2in 40 0100011 AR Compound, Locking 41 1780307 1 Lid Assembly 41A 2940073 1 Latch

REV

1/A 1/A

ITEM PART NUMBER QTY DESCRIPTION

41B 7024319 2 Screw 41C 7024320 2 Retainer 42 3740049 AR Relay 46 4460630 1 Marker, Terminal (Ignition) 47 4760600 4 Lockwasher #6 48 4761000 2 Lockwasher #10 50 3539275 1 Bracket, Relay Mounting 51 1670829 1 Bezel 52 0630518 2 Capscrew, Button Head 53 4460711 1 Connector, Strain Relief 54 3300408 AR Locknut, Plastic Insert 55 1703622 1 Decal - Service Manual Reference 56 4460234 AR Base, Tie-Strap 58 4070991 1 Shim .125 59 4070987 1 Shim .015 60 3910804 6 Screw #8-32NC x 1/4in 61 3910608 4 #6-32NC x 1/2in Ref GROUND CONTROL BOX INSTALLATIONS 0861284 Ref Ground Control Box Installations 400S 1

REV

0861285 Ref Ground Control Box Installations 460SJ 1

101 0641406 4 Bolt 1/4in-20NC x 3/4in 102 0720805 6 Screw, Machine #8-32NC 104 3310805 6 Locknut #8-32NC 105 3311405 4 Locknut 1/4in-20NC 106 3960438 AR Seal 107 4750800 6 Flatwasher #8 Regular 108 4751400 8 Flatwasher 1/4in Regular Ref PLATFORM OVERLOADINSTALLATIONS 0271474 Ref Overload - Lift Down (Prior to SN 0300062886) 1/B 0271542 Ref Overload - Lift Down (SN 0300062886 through 0300064715) 1/A 215 3740057 1 Relay 216 4120012 1 Base, Relay 217 3740066 1 Spring, Relay 223 3740049 1 Relay 224 3300408 1 Locknut #10-24NC 225 0721006 1 Screw #10-24NC x 3/4in
