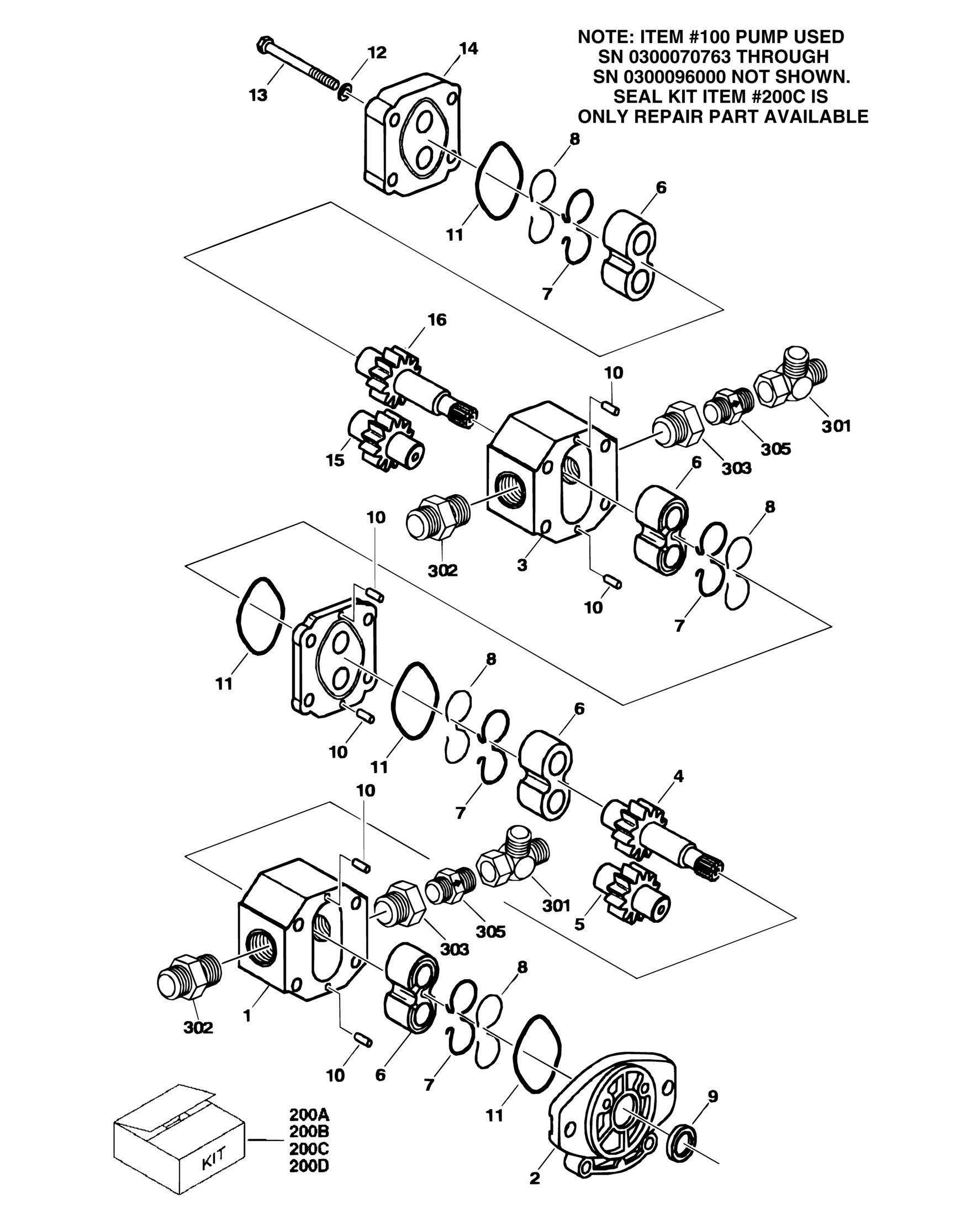

FIGURE 2-12. GEAR PUMP ASSEMBLY

FIGURE 2-12. GEAR PUMP ASSEMBLY

FIGURE 2-12. GEAR PUMP ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

Ref GEAR PUMP ASSEMBLY 3600297 Ref Pump (Prior to SN 0300070763) C

1 See Note NSS Body, Front (Note: Use p/n 3600297) 2 See Note NSS Cover (Note: Use p/n 3600297) 3 See Note NSS Body, Rear (Note: Use p/n 3600297) 4 7023811 1 Gear, Drive 5 7023812 1 Gear, Idler 6 See Note NSS Block, Bearing (Note: Use Item 200B) 7 See Note NSS Seal, Load (Note: Use Item 200A or 200B) 8 See Note NSS Seal, Anti/Extrusion (Note: Use Item 200A or 200B) 9 See Note NSS Seal, Shaft (Note: Use Item 200A or 200B) 10 See Note NSS Pin, Dowel (Note: Not Available for Purchase) 11 See Note NSS Seal, Static (Note: Use Item 200A or 200B) 12 7023813 4 Washer 13 7023814 4 Capscrew 14 3600297 1 Cover, Rear (Note: Not Available - Purchase Complete) 15 7023812 1 Gear, Idler 16 7023815 1 Gear, Drive 100 3600368 Ref Pump (Not Shown) (SN 0300070763 through 0300096000) A Ref Note: Seal Kit Item 200C is only service part available for

this pump.

200 Ref Seal Kit Options: 200A 7023820 1 3600297 Minor Seal Kit - (Includes Items - 7, 8, 9 & 11) 200B 7023802 1 3600297 Major Seal Kit - (Includes Items - 6, 7, 8, 9 & 11) 200C 7024962 1 3600368 Minor Seal Kit - (Includes Items - 7, 8, 9, 11 and O-Ring Between Intermediate Cover Plates) 200D See Note NLA 3600368 Major Seal Kit (Note: Use p/n 3600368) 3600405 Ref GEAR PUMP SUB-ASSEMBLY A

Ref Usage: Ref Caterpillar Engine Machines (SN 0300078267 through

0300096000)

Ref Deutz Engine Machines (SN 0300077683 through

0300096000)

301 2220385 2 Fitting, Tee 302 2220479 2 Fitting, Straight 303 2220810 2 Fitting, Reducer 304 3600368 1 Gear Pump Assembly (Not Shown) 305 4640744 2 Valve, Check
