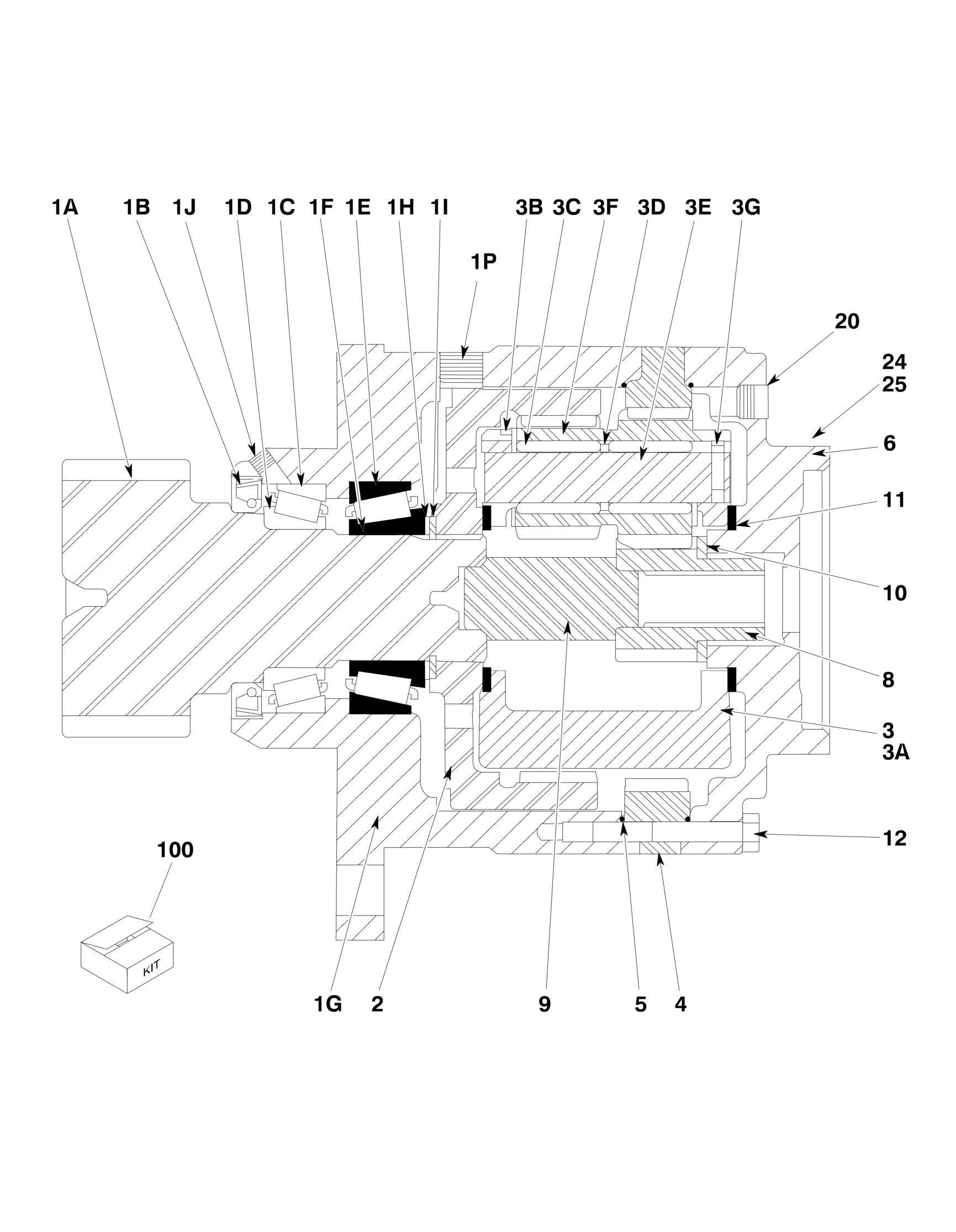

FIGURE 2-6. SWING HUB ASSEMBLY

FIGURE 2-6. SWING HUB ASSEMBLY

FIGURE 2-6. SWING HUB ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION

2780247 Ref SWING HUB ASSEMBLY 1 See Note NSS Housing and Shaft Assembly (Note: Use p/n 2780247) 1A 7017064 1 Shaft, Output 1B 7000228 1 Seal, Lip 1C 7000255 1 Cup, Bearing 1D 7000256 1 Cone, Bearing 1E 7000257 1 Cup, Bearing 1F 7000258 1 Cone, Bearing 1G 7017065 1 Housing 1H 7007633 1 Thrustwasher 1I 7000229 1 Ring, Retaining 1J 7010494 1 Plug, Pipe 1P See Note 2 Plug, Pipe (Note: Not Available - Purchase Locally) 2 7000246 1 Gear, Internal 3 7017066 1 Carrier Assembly (Includes Items 3A-3G) 3A See Note NSS Housing, Carrier (Note: Use Item 3) 3B See Note NSS Washer, Special (Note: Use Item 3) 3C See Note NSS Bearing, Needle (Note: Use Item 3) 3D See Note NSS Thrustwasher (Note: Use Item 3) 3E See Note NSS Pin (Note: Use Item 3) 3F See Note NSS Gear (Note: Use Item 3) 3G See Note NSS Pin, Retaining (Note: Use Item 3) 4 7001988 1 Gear, Ring 5 7000230 2 O-Ring 6 7000209 1 Cover, Input 8 7010488 1 Gear, Sun 9 7000269 1 Spacer, Input 10 7000270 1 Thrustwasher 11 7000253 2 Thrustwasher 12 7000217 8 Bolt 20 2200222 1 Plug, Pipe 24 See Note 1 Plate, ID (Note: Not Available for Purchase) 25 7000281 2 Screw, Drive 100 7024100 1 Seal Kit

REV

A
