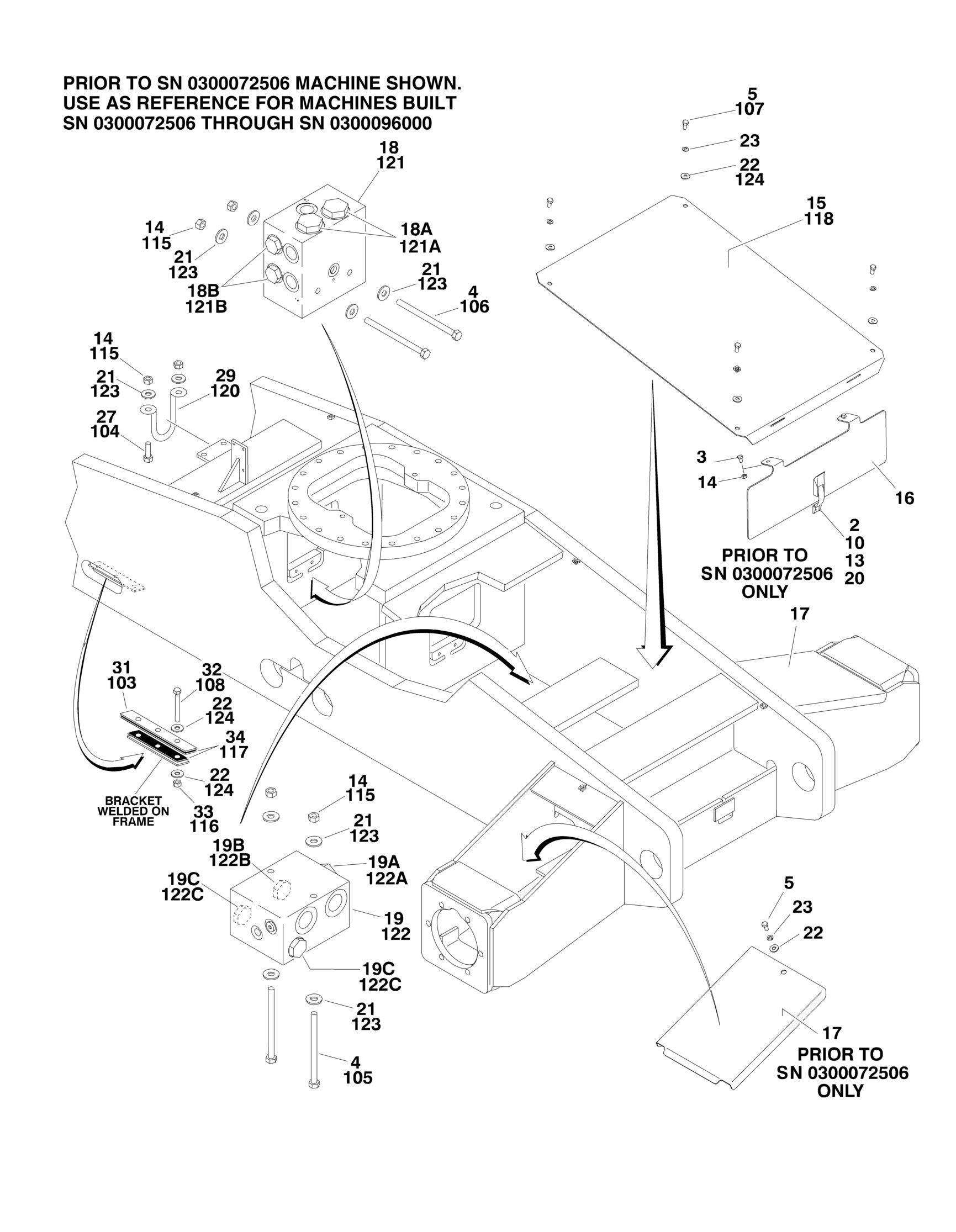

FIGURE 1-10. FRAME VALVES AND SHIELDS INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref VALVES AND SHIELDS INSTALLATIONS 0259145 Ref 2WD (Prior to SN 0300072506) 0259146 Ref 4WD (Prior to SN 0300072506) Ref Note: See AXLE AND STEERING INSTALLATIONS for
Oscillating Axle Lockout Valve.
2 0630464 2 Screw, Button 3 0641504 2 Bolt 5/16in-18NC x 1/2in 4 0641530 2 Bolt 5/16in-18NC x 3-3/4in 5 0641606 6 Bolt 3/8in-16NC x 3/4in 10 2940118 1 Latch 13 3311005 2 Locknut #10-24NC 14 3311505 AR Locknut 5/16in-18NC 15 4060979 1 Shield, Frame - Rear Top 16 4060980 1 Shield, Frame - Rear Side 17 4060981 2 Shield, Frame - Axle Top 18 Ref Flow Divider Valve Assembly Options: 18 Not Required 0 2WD Machines 18 4641107 1 4WD Machines 18A 7021654 2 Valve, Cartridge (Flow Divider) 18A 7021655 2 Seal Kit - Flow Divider Cartridge 18B 7017412 4 Valve, Cartridge (Check) 18B 7012967 4 Seal Kit - Check Cartridge 19 4641115 1 Flow Divider Valve Assembly 19A 7021656 1 Valve, Cartridge (Flow Divider) 19A 7021625 1 Seal Kit - 7021656 Cartridge 19B 7012930 1 Valve, Cartridge (Check) 19B 2900708 1 Seal Kit - 7012930 Cartridge 19C 7010542 2 Valve, Cartridge (Load Shuttle) 19C 7010543 2 Seal Kit - 7010542 Cartridge 20 4751000 2 Flatwasher #10 Regular 21 4751500 AR Flatwasher 5/16in Regular 22 4751600 AR Flatwasher 3/8in Regular 23 4761600 6 Lockwasher 3/8in 27 0641508 2 Bolt 5/16in-18NC x 1/2in (4WD Only) 28 0641538 2 Bolt 5/16in-18NC x 4-3/4in 29 3841340 1 Loop, Hose (4WD Only) 31 0362936 2 Bar, Hose Clamp (4WD Only) 32 0641618 6 Bolt 3/8in-16NC x 2-1/4in (4WD Only) 33 3311605 6 Nut 3/8in-16NC (4WD Only) 34 3340898 4 Pad, Rubber (4WD Only) Ref VALVES AND SHIELDS INSTALLATIONS 0272784 Ref 2WD (SN 0300072506 through 0300076632) 0272926 Ref 2WD (SN 0300076633 through 0300096000) 0272783 Ref 4WD (SN 0300072506 through 0300076632) 0272925 Ref 4WD (SN 0300076633 through 0300096000) Ref Note: See AXLE AND STEERING INSTALLATIONS for
Oscillating Axle Lockout Valve.
103 0362936 2 Bar, Hose Clamp (4WD Only) 104 0641508 2 Bolt 5/16in-18NC x 1/2in (4WD Only) 105 0641530 2 Bolt 5/16in-18NC x 3-3/4in
REV
H J
C
C
A A A A
ITEM PART NUMBER QTY DESCRIPTION REV
106 0641538 2 Bolt 5/16in-18NC x 4-3/4in (4WD Only) 107 0641607 6 Bolt 3/8in-16NC x 7/8in 108 0641618 8 Bolt 3/8in-16NC x 2-1/4in (4WD Only) 115 3311505 AR Locknut 5/16in-18NC 116 3311605 6 Nut 3/8in-16NC (4WD Only) 117 3340898 4 Pad, Rubber (4WD Only) 118 3574210 1 Shield, Frame - Rear Top 120 3841340 1 Loop, Hose (4WD Only) 121 Ref Flow Divider Valve Assembly Options: 121 Not Required 0 2WD Machines 121 4641107 1 4WD Machines (SN 0300072506 through 0300076632) C 121 4641208 1 4WD Machines (SN 0300076633 through 0300096000) A 121A Ref Valve, Cartridge (Flow Divider) Options: 121A 7021654 2 Cartridge for (SN 0300072506 through 0300076632) 121A 7023934 2 Cartridge For (SN 0300076633 through 0300096000) 121A 7021655 2 Seal Kit - 7021654 & 7023934 Cartridge 121B Ref Valve, Cartridge (Check) Options: 121B 7017412 4 Cartridge for (SN 0300072506 through 0300076632) 121B 7012967 4 Seal Kit - 7017412 Check Cartridge 121B 7023935 4 Cartridge For (SN 0300076633 through 0300096000) 121B 7023936 4 Seal Kit - 7023935 Check Cartridge 122 Ref Flow Divider Valve Assembly Options: 122 4641115 1 Flow Divider Valve Assembly (SN 0300072506 through
0300076632)
C 122 4641207 1 Flow Divider Valve Assembly (SN 0300076633 through
0300096000)
A
122A Ref Valve, Cartridge (Flow Divider) Options: 122A 7021656 1 Cartridge for (SN 0300072506 through 0300076632) 122A 7023917 1 Cartridge for (SN 0300076633 through 0300096000) 122A 7021625 1 Seal Kit - 7021656 & 7023917 Cartridges 122B Ref Valve, Cartridge (Check) Options: 122B 7012930 1 Cartridge for (SN 0300072506 through 0300076632) 122B 2900708 1 Seal Kit - 7012930 Cartridge 122B 7022397 1 Cartridge for (SN 0300076633 through 0300096000) 122B 7022399 1 Seal Kit - 7022397 Cartridges 122C 7010542 2 Valve, Cartridge (Load Shuttle) 122C 7010543 2 Seal Kit - 7010542 Cartridge 123 4751500 AR Flatwasher 5/16in Regular 124 4751600 AR Flatwasher 3/8in Regular
