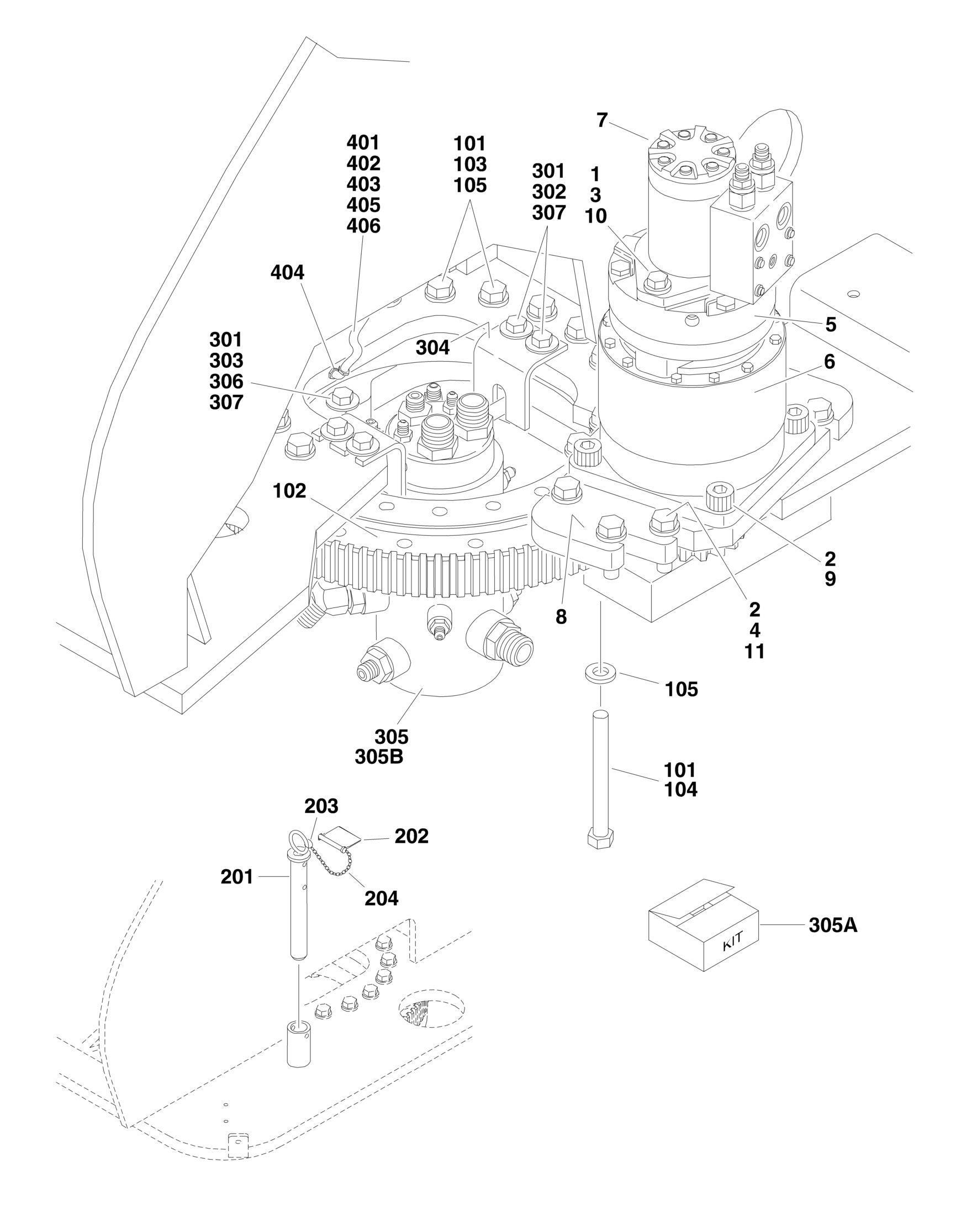

FIGURE 2-4. TURNTABLE AND SWING DRIVE INSTALLATIONS
ITEM PART NUMBER QTY DESCRIPTION REV
Ref TURNTABLE WELDMENT 4620128 Ref Turntable Weldment (Prior to SN 0300074573) 4620141 Ref Turntable Weldment (SN 0300074573 through 0300096000) Ref SWING DRIVE INSTALLATION OPTIONS: 0259875 Ref Swing Drive Installation (Prior to SN 0300063791) B 0270326 Ref Swing Drive Installation (SN 0300063791 through 0300096000) B 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0681832 2 Bolt 1/2in-13NC x 4in (Grade 8) 4 0682018 8 Bolt 5/8in-11NC x 2-1/4in (Grade 8) 5 Ref Swing Brake Assembly Options (See SWING BRAKE ASSEMBLY for Breakdown): 5 0920116 1 Swing Brake Assembly (Prior to SN 0300063791) 5 0920119 1 Swing Brake Assembly (SN 0300063791 through 0300096000) 6 2780247 1 Swing Hub Assembly (See SWING HUB ASSEMBLY for Breakdown) 7 Ref Swing Motor Assembly Options (See SWING MOTOR ASSEMBLY for Breakdown): 7 3160249 1 Swing Motor Assembly (Prior to SN 0300064259) 7 3160280 1 Swing Motor Assembly (SN 0300064259 through 0300096000) 8 3572041 1 Plate, Mount 9 3932224 4 Capscrew, Socket Head 3/4in-1NC x 1-1/2in 10 4891800 2 Flatwasher 1/2in Hardened 11 4892000 6 Flatwasher 5/8in Hardened 0259156 Ref SWING BEARING AND ROTATION BOX ASSEMBLY D
101 0100019 AR Compound, Locking 102 0440240 NLA Bearing, Turntable (Use p/n 2915078) 103 0682026 20 Bolt 5/8in-11NC x 3-1/4in (Grade 8) 104 0682048 20 Bolt 5/8in-11NC x 6in (Grade 8) 105 4892000 40 Flatwasher 5/8in Hardened 0259147 Ref TURNTABLE LOCK INSTALLATION A
201 4844958 1 Pin Weldment 202 3421565 1 Pin, Snap 203 3760170 2 Ring, Quick Release 204 1260017 9 in/23cm Chain 0259155 Ref ROTARY COUPLING INSTALLATION 301 0100011 AR Compound, Locking 302 0641810 4 Bolt 1/2in-13NC x 1-1/4in 303 0641826 2 Bolt 1/2in-13NC x 3-1/4in 304 0902556 2 Bracket 305 1660219 1 Coupling, Rotary 305A 7013187 1 Seal Kit 305B 1660219RR 1 Rebuilt Coupling 306 3311801 2 Nut 1/2in-13NC 307 4751800 8 Flatwasher 1/2in Regular 0259158 Ref REMOTE BEARING LUBE INSTALLATION 401 2160002 1 Fitting, Grease 402 2180344 1 Fitting, Bulkhead 403 2220001 1 Fitting, Straight 404 2220124 1 Fitting, Elbow C
B
ITEM PART NUMBER QTY
405 2751095 1 Hose 406 2220273 1 Fitting, Reducer
