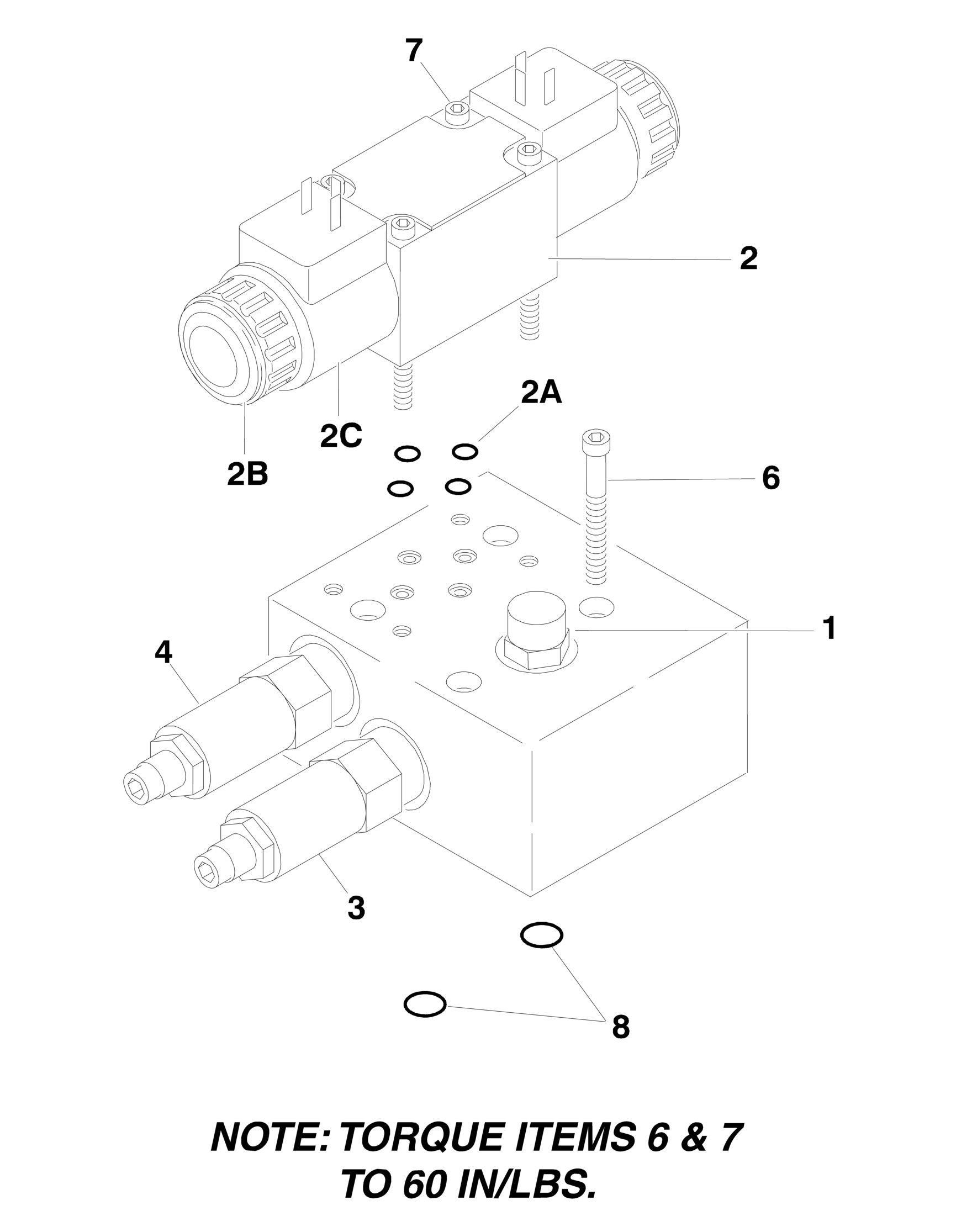

FIGURE 2-3. ARTICULATING JIB VALVE ASSEMBLY

FIGURE 2-3. ARTICULATING JIB VALVE ASSEMBLY

FIGURE 2-3. ARTICULATING JIB VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

4640921 Ref ARTICULATING JIB VALVE ASSEMBLY 1 7012965 1 Cartridge, Flow Control 1 7012953 1 Seal Kit - 7012965 Cartridge 2 7012770 1 Directional Control Valve Assembly 2 7012773 1 Seal Kit 2A 7018945 4 O-Ring 2B 7018912 2 Nut 2C 7012772 2 Coil 3 7017421 1 Cartridge, Relief 3 7012998 1 Seal Kit - 7017421 Cartridge 4 7017422 1 Cartridge, Relief 4 7012998 1 Seal Kit - 7017422 Cartridge 5 4460499 2 Connector, DIN with Diode (Not Shown - Part of Valve Harness) 6 7012777 4 Capscrew, Socket Head 5/16in-18NC x 2-1/4in (Used to Mount Valve Assembly) 7 7018942 4 Capscrew, Socket Head #10-24NC x 2in 8 7012776 2 O-Ring (Used to Mount Main Valve)

REV

D
