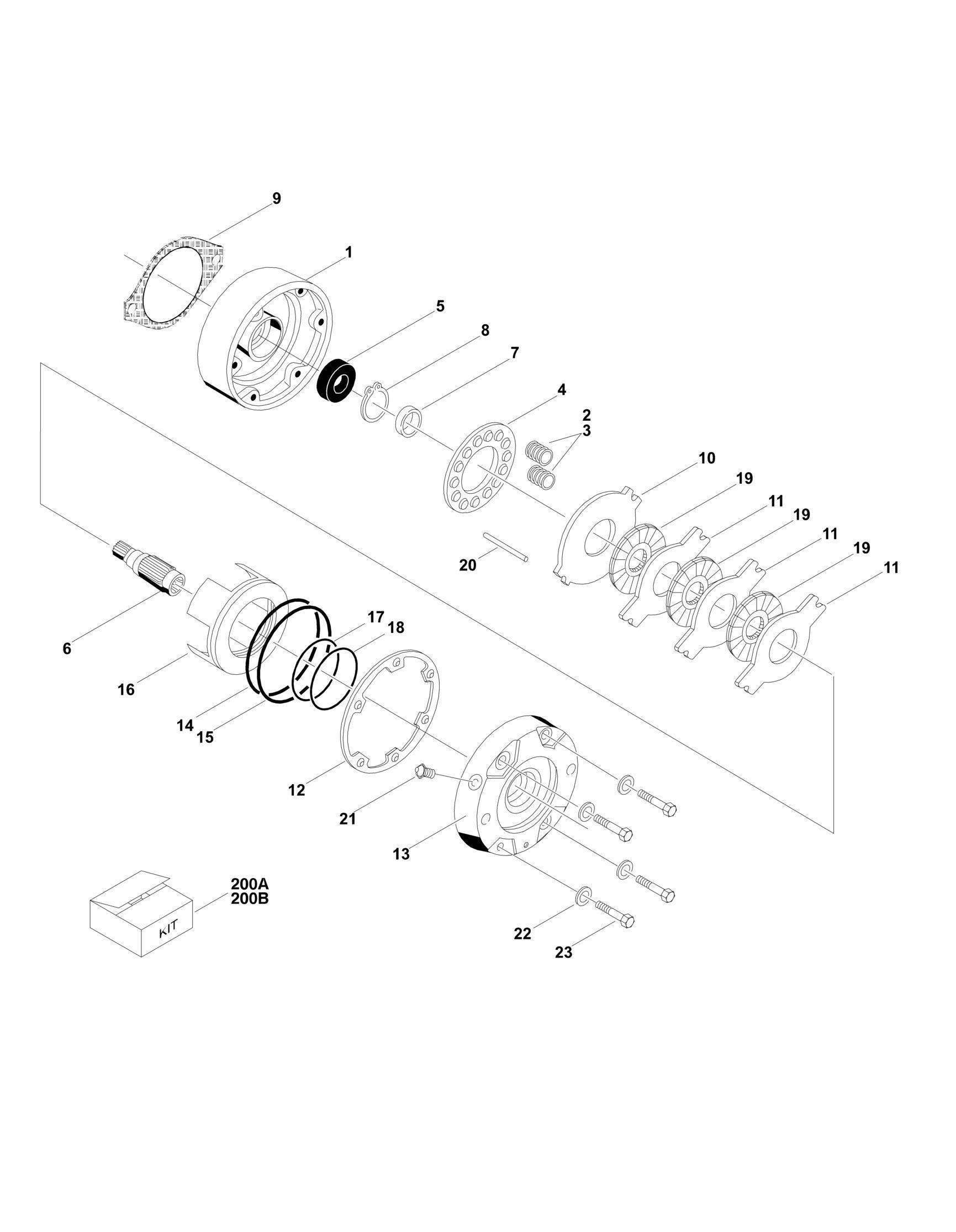

FIGURE 2-5. SWING BRAKE ASSEMBLY

FIGURE 2-5. SWING BRAKE ASSEMBLY

FIGURE 2-5. SWING BRAKE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

Ref SWING BRAKE ASSEMBLIES 0920116 Ref Swing Brake Assembly (Prior to SN 0300063791) 1 See Note NSS Housing (Note: Use p/n 0920116) 2 7000782 7 Spring, Compression 3 7000798 7 Spring, Compression 4 7003454 1 Retainer, Spring 5 7003049 1 Bearing 6 0920116 1 Shaft (Note: Not Available for Purchase) 7 7003050 1 Seal, Lip 8 7003453 1 Ring, Snap 9 7000731 1 Gasket 10 0920116 1 Disc, Primary (Note: Not Available for Purchase) 11 7003459 3 Disc, Stationary 12 7003452 1 Gasket 13 0920116 1 Plate, Power (Note: Not Available for Purchase) 14 7000724 1 Ring, Back-up 15 7000725 1 O-Ring 16 0920116 1 Piston (Note: Not Available for Purchase) 17 7000722 1 Ring, Back-up 18 7000723 1 O-Ring 19 7003457 3 Disc, Rotating 20 7003094 2 Pin, Torque 21 7003078 1 Plug 22 7003462 4 Flatwasher (Hardened) 23 See Note 4 Bolt 1/2in-13NC (Note: Not Available - Purchase Locally) 24 See Note 1 Plug, Protective (Not Shown) (Note: Not Available - Purchase Locally) 100 0920119 Ref Swing Brake Assembly (Not Shown) (SN 0300063791 through

0300096000)

100 7007933 1 Gasket, Mounting Face 100 7007990 1 O-Ring, Mounting Face Ref Note: Other then Gasket and O-Ring, Item 200B Repair Kit is

only part available.

200 Ref REPAIR KIT OPTIONS 200A See Note 1 Repair Kit for 0920116 Brake (Note: Purchase Individual Parts)

(Prior to SN 0300063791)

200B 7018612 1 Repair Kit for 0920119 Brake (SN 0300063791 through

0300096000) REV

B

B
