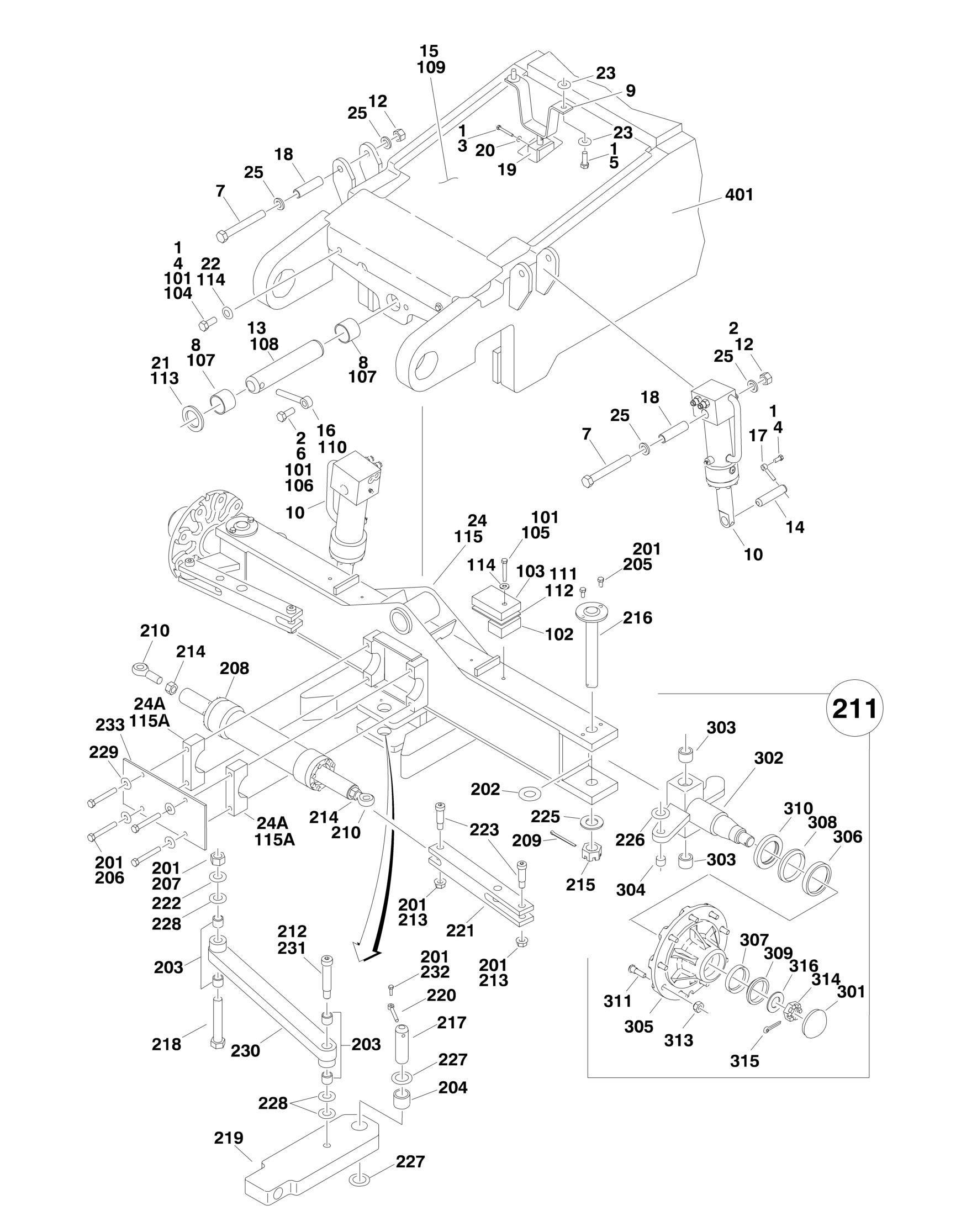

FIGURE 1-2. AXLE AND STEERING INSTALLATION - 2WD WITH TOW PACKAGE
ITEM PART NUMBER QTY
DESCRIPTION
0273473 Ref OSCILLATING AXLE INSTALLATION
REV
A
1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0641424 4 Bolt 1/4in-20NC x 3in 4 0641607 2 Bolt 3/8in-16NC x 7/8in 5 0642010 2 Bolt 5/8in-11NC x 1-1/4in 6 0642012 1 Bolt 5/8in-11NC x 1-1/2in 7 0682248 2 Bolt 3/4in-10NC x 6in 8 0961950 2 Bushing 9 1100123 1 Cam, Lockout 10 1684139 2 Lockout Cylinder Assembly (See CYLINDER SECTION for Breakdown) 12 3272201 2 Nut 3/4in-10NC 13 3422592 1 Pin, Axle Pivot 14 3422936 2 Pin 15 3574254 1 Shield, Frame 16 3841258 1 Keeper, Pin 17 3841520 2 Keeper, Pin 18 4567462 2 Tube, Mounting 19 4640871 1 Lockout Valve Assembly 19 7012693 1 Seal Kit - 4640871 Valve 19 7002840 1 Anit-Rotation Pin Removal Tool 20 4711400 4 Flatwasher 1/4in Thin 21 4740158 1 Thrustwasher 22 4751600 2 Flatwasher 3/8in Regular 23 4752000 4 Flatwasher 5/8in Regular 24 4846801 1 Axle Weldment 24A 0561300 2 Steer Cylinder Mounting Block Assembly 25 4892200 4 Flatwasher 3/4in Hardened Ref FIXED AXLE INSTALLATION 0272803 Ref Fixed Axle Installation (Prior to SN 0300072506) A 0272906 Ref Fixed Axle Installation (SN 0300072506 through 0300096000) A 101 0100011 AR Compound, Locking 102 0362932 2 Bar, Stop 103 0362954 2 Bar, Stop 104 0641607 2 Bolt 3/8in-16NC x 7/8in 105 0641626 2 Bolt 3/8in-16NC x 3-1/4in 106 0642012 1 Bolt 5/8in-11NC x 1-1/2in 107 0961950 2 Bushing 108 3422592 1 Pin, Axle Pivot 109 Ref Shield, Frame Options: 109 4060978 1 Shield, Frame (Prior to SN 0300072506) 109 3574254 1 Shield, Frame (SN 0300072506 through 0300096000) 110 3841258 1 Keeper, Pin 111 4070973 2 Shim 11Ga 112 4071002 4 Shim 20Ga 113 4740158 1 Thrustwasher 114 4751600 2 Flatwasher 3/8in Regular 115 4846426 1 Axle Weldment 115A 0561300 2 Steer Cylinder Mounting Block Assembly
ITEM PART NUMBER QTY
DESCRIPTION
0272804 Ref STEERING INSTALLATION 201 0100011 AR Compound, Locking 202 0440162 2 Thrustwasher 203 0962292 4 Bushing 204 0962348 1 Bushing 205 0641606 4 Bolt 3/8in-16NC x 3/4in 206 Ref Bolt Options: 206 0681828 4 Bolt 1/2in-13NC x 3-1/2in (With Cylinder Shield) 206 0681824 4 Bolt 1/2in-13NC x 3in (Without Cylinder Shield) 207 3272205 2 Locknut 3/4in-16NF 208 Ref Steer Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 208 1683614 NLA Steer Cylinder Assembly (Use p/n 1684412) (Prior to SN
0300087392)
208 1001140283 NLA Steer Cylinder Assembly (Use p/n 1684412) (SN 0300087392
through 0300096000)
209 3450808 2 Pin, Cotter 1/4in x 2in 210 3841367 NLA Rod-End (Use p/n 3841517 Rod-End with p/n 7020180 Grease Fitting) Ref Note: Qty (1) p/n 4740086 Thrustwasher required between
bottom of p/n 3841517 Rod-End and Tie Rod.
211 2780230 2 Hub/Spindle Assembly (See Items 201-213 for Breakdown) 212 3900295 1 Bolt, Shoulder 1in x 3in 213 3312008 4 Nut 5/8in-11NC 214 3322201 2 Nut 3/4in-16NF 215 3323003 2 Nut 1-1/4in-12NF 216 3422692 2 Kingpin 217 3422848 1 Pin, Hitch 218 3900296 1 Bolt, Shoulder 1in x 4-1/2in 219 3574235 1 Plate, Tow Bar Pivot 220 3841143 1 Keeper 221 3841619 2 Tie-Rod 222 4712400 1 Flatwasher 7/8in Thin 223 3900109 4 Screw, Shoulder 225 4713000 2 Flatwasher 1-1/4in Thin 226 4740086 2 Thrustwasher 227 4740155 2 Thrustwasher 228 4740491 3 Thrustwasher 229 4751800 4 Flatwasher 1/2in Regular 230 4846802 1 Weldment, Link 231 0100019 AR Compound, Locking 232 0641508 1 Bolt 5/16in-18NC x 1in 233 4061048 1 Shield, Cylinder Only (Prior to SN 0300073804) 2780230 Ref HUB ASSEMBLY 301 7020033 2 Cap, Dust (1 per Assembly) 302 7020034 2 Spindle Assembly (1 per Assembly) 303 0961951 4 Bushing (2 Per Assembly) 304 0962140 2 Bearing (1 per Assembly) 305 7020035 2 Hub (1 per Assembly) (Includes Items 306 & 307) 306 7020036 2 Cup, Bearing - Inner(1 per Assembly) 307 7020038 2 Cup, Bearing - Outer (1 per Assembly) 308 7020037 2 Cone, Bearing - Inner (1 per Assembly)
REV
G
A
ITEM PART NUMBER QTY
DESCRIPTION
309 7020039 2 Cone, Bearing - Outer (1 per Assembly) 310 7020040 2 Seal (1 Per Assembly) 311 7020041 18 Stud, Wheel (9 Per Assembly) 313 7020042 18 Lugnut (9 per Assembly) 314 7020054 2 Nut, Castle (1 per Assembly) 315 3450608 2 Pin, Cotter (1 Per Assembly) 316 7020055 2 Washer, Spindle (1 Per Assembly) 401 Ref FRAME WELDMENT OPTIONS: 401 2360539 Ref Frame Weldment 400S with 500Lbs Capacity (Prior to SN
0300072506)
401 2360625 Ref Frame Weldment 400S with 500Lbs Capacity (SN 0300072506
through 0300076632)
401 2360650 Ref Frame Weldment 400S with 500Lbs Capacity (SN 0300076633
through 0300096000)
401 2360540 Ref Frame Weldment 400S with 750Lbs Capacity (Prior to SN
0300072506)
401 2360626 Ref Frame Weldment 400S with 750Lbs Capacity (SN 0300072506
through 0300076632)
401 2360651 Ref Frame Weldment 400S with 750Lbs Capacity (SN 0300076633
through 0300096000)
401 2360541 Ref Frame Weldment 460SJ (Prior to SN 0300072506) 401 2360627 Ref Frame Weldment 460SJ (SN 0300072506 through 0300076632) 401 2360652 Ref Frame Weldment 460SJ (SN 0300076633 through 0300096000) 401 2360551 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (Prior to
SN 0300072506)
401 2360628 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (SN
0300072506 through 0300076632)
401 2360653 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (SN
