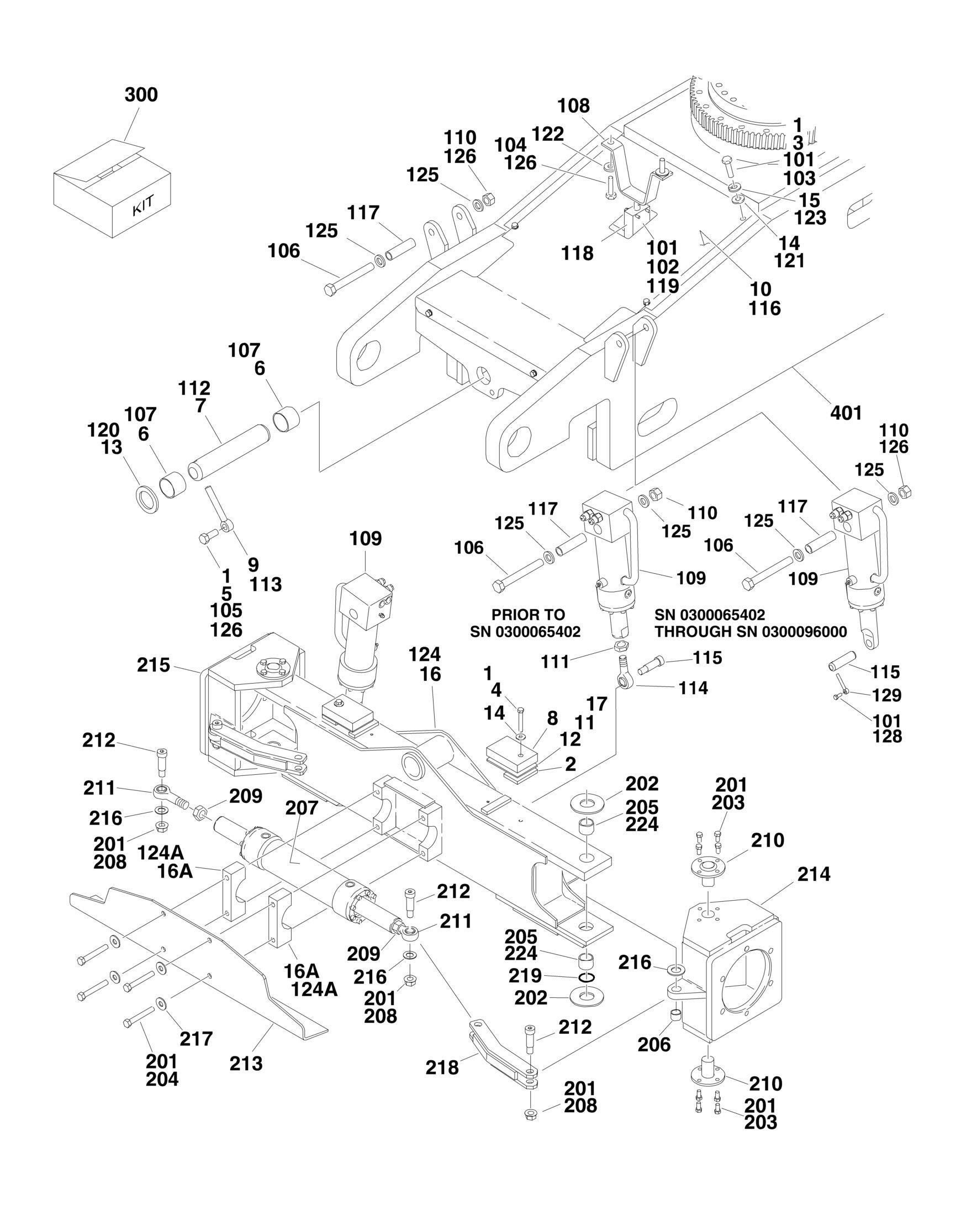

FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD
FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD
FIGURE 1-3. AXLE AND STEERING INSTALLATION - 4WD
ITEM PART NUMBER QTY DESCRIPTION REV
Ref FIXED AXLE INSTALLATION OPTIONS: 0259153 Ref Fixed Axle Installation (Prior to SN 0300067471) C 0272275 Ref Fixed Axle Installation (SN 0300067471 through 0300072505) A 0272903 Ref Fixed Axle Installation (SN 0300072506 through 0300096000) A 1 0100011 AR Compound, Locking 2 0362965 2 Bar, Stop 3 0641606 4 Bolt 3/8in-16NC x 3/4in 4 0641620 2 Bolt 3/8in-16NC x 2-1/2in 5 0642012 1 Bolt 5/8in-11NC x 1-1/2in 6 0961950 2 Bushing 7 3422592 1 Pin, Axle Pivot 8 0362954 2 Plate, Stop 9 3841258 1 Keeper, Pin 10 Ref Shield, Frame Options: 10 4060978 1 Shield, Frame (Prior to SN 0300072506) 10 3574254 1 Shield, Frame (SN 0300072506 through 0300096000) 11 4070973 AR Shim 1/8in 12 4070972 AR Shim 3/16in 13 4740158 1 Thrustwasher 14 4751600 6 Flatwasher 3/8in Regular 15 4761600 4 Lockwasher 3/8in 16 Ref Axle Weldment Options: 16 4846069 1 Axle Weldment (Prior to SN 0300067471) 16 4846550 1 Axle Weldment (SN 0300067471 through 0300096000) Ref Note: If kingpin holes in axle measure 1.503in diameter or
larger in any direction, axle weldment must be replaced. See Field Service Bulletin AWP-04-11.
17 4071002 AR Shim 20-Gauge Ref OSCILLATING AXLE INSTALLATION OPTIONS: 0259151 Ref Australian Spec (Prior to SN 0300065402) E 0271978 Ref Australian Spec (SN 0300065402 through 0300072505) A 0272901 Ref Australian Spec (SN 0300072506 through 0300096000) A 0270716 Ref CE Spec (Prior to SN 0300065402) A 0271980 Ref CE Spec (SN 0300065402 through 0300072505) B 0272905 Ref CE Spec (SN 0300072506 through 0300096000) A 101 0100011 AR Compound, Locking 102 Ref Bolt Options: 102 0641414 4 Bolt 1/4in-20NC x 1-3/4in (Australian Spec) 102 0641424 4 Bolt 1/4in-20NC x 3in (CE Spec) 103 0641606 4 Bolt 3/8in-16NC x 3/4in 104 0642010 2 Bolt 5/8in-11NC x 1-1/4in 105 0642012 1 Bolt 5/8in-11NC x 1-1/2in 106 0682248 2 Bolt 3/4in-10NC x 6in (Grade 8) 107 0961950 2 Bushing 108 Ref Cam, Lockout Options: 108 1100118 1 Australian Spec 108 1100123 1 CE Spec 109 Ref Lockout Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 109 1683575 NLA Lockout Cylinder Assembly (Use p/n 1684139) (Prior to SN
ITEM PART NUMBER QTY DESCRIPTION REV
0300065402)
109 1684139 2 Lockout Cylinder Assembly (SN 0300065402 through
0300096000)
110 3272201 2 Nut 3/4in-10NC 111 3322201 2 Nut 3/4in-16NF (Prior to SN 0300065402) 112 3422592 1 Pin, Axle Pivot 113 3841258 1 Keeper, Pin 114 3841367 2 Rod-End with Grease Fitting (Prior to SN 0300065402) 114 7020180 1 Grease Fitting 115 Ref Hardware Options: 115 3900109 2 Screw, Shoulder (Prior to SN 0300065402) 115 3422936 2 Pin (SN 0300065402 through 0300096000) 116 Ref Shield, Frame Options: 116 4060978 1 Shield, Frame (Prior to SN 0300072506) 116 3574254 1 Shield, Frame (SN 0300072506 through 0300096000) 117 4567462 2 Tube, Mounting 118 4640871 AR Lockout Valve Assembly 118 Ref Australian Spec 118 Ref CE Spec 118 7012693 AR Seal Kit - 4640871 Valve 118 7002840 1 Anti-Rotation Pin Removal Tool 119 4711400 4 Flatwasher 1/4in Thin 120 4740158 1 Thrustwasher 121 4751600 4 Flatwasher 3/8in Regular 122 4752000 4 Flatwasher 5/8in Regular 123 4761600 4 Lockwasher 3/8in 124 Ref Axle Weldment Options: 124 4846069 1 Axle Weldment (Prior to SN 0300067471) 124 4846550 1 Axle Weldment (SN 0300067471 through 0300096000) Ref Note: If kingpin holes in axle measure 1.503in diameter or
larger in any direction, axle weldment must be replaced. See Field Service Bulletin AWP-04-11.
125 4892200 4 Flatwasher 3/4in Hardened 126 0100019 AR Compound, Locking 128 0641607 2 Bolt 3/8in-16NC x 7/8in (SN 0300065402 through 0300096000) 129 3841520 2 Keeper, Pin (SN 0300065402 through 0300096000) Ref STEERING INSTALLATION 0259149 Ref Steering Installation (Prior to SN 0300076633) D 0272927 Ref Steering Installation (SN 0300076633 through 0300096000) G 201 0100011 AR Compound, Locking 202 Ref Thrustwasher Options: 202 0440161 4 Thrustwasher (Top and Bottom Kingpin Location) (Note: See Kit) (Prior to SN 0300079125) 202 4740537 AR Thrustwasher (.0625) (Top Kingpin Location) (SN 0300079125
through 0300096000)
202 4740538 AR Thrustwasher (.125) (Top Kingpin Location) (SN 0300079125
through 0300096000)
202 4740539 AR Thrustwasher (.188) (Top Kingpin Location) (SN 0300079125
through 0300096000)
202 4740540 AR Thrustwasher (.250) (Top Kingpin Location) (SN 0300079125
through 0300096000)
202 0440271 2 Thrustwasher (Bottom Kingpin Location) (SN 0300079125
through 0300096000)
ITEM PART NUMBER QTY DESCRIPTION
203 0641606 AR Bolt 3/8in-16NC x 3/4in 203 Ref Bolt 3/8in-16NC x 3/4in (Prior to SN 0300079125) 203 Ref Bolt 3/8in-16NC x 3/4in (SN 0300079125 through
0300096000)
204 0681828 4 Bolt 1/2in-13NC x 3-1/2in 205 Ref Bushing Options: 205 0961951 4 Bushing (Top and Bottom Kingpin Locations) (Note: See Kit)
(Prior to SN 0300079125)
205 0440291 2 Bushing (Top Kingpin Location) (SN 0300079125 through
0300096000)
205 0440274 2 Bushing (Bottom Kingpin Location) (SN 0300079125 through
0300096000)
206 0962140 2 Bearing 207 Ref Steer Cylinder Assembly Options (See CYLINDER SECTION for Breakdown): 207 1683614 NLA Steer Cylinder Assembly (Use p/n 1684412) (Prior to SN
0300087392)
207 1001140283 NLA Steer Cylinder Assembly (Use p/n 1684412) (SN 0300087392
through 0300096000)
208 3312008 4 Nut 5/8in-11NC 209 3322201 2 Nut 3/4in-16NF 210 Ref Kingpin Options: 210 3422716 4 Kingpin (2 Bolt Mounting) (Note: See Kit) (Prior to SN
0300079125)
210 3423081 4 Kingpin (4 Bolt Mounting) (SN 0300079125 through
0300096000)
211 3841367 NLA Rod-End (Use p/n 3841367 Rod-End with p/n 7020180 Grease Fitting) Ref Note: Qty (1) p/n 4740086 Thrustwasher required between
bottom of p/n 3841517 Rod-End and Tie Rod.
212 3900109 4 Screw, Shoulder 213 4060950 1 Shield, Frame Only (Prior to SN 0300072506) 214 Ref Spindle (Left Side) Options: 214 4130368 NLA Spindle (Left Side) (Use p/n 4130403) (Prior to SN
0300079125)
214 4130405 1 Spindle (Left Side) (SN 0300079125 through 0300096000) 215 Ref Spindle (Right Side) Options: 215 4130369 NLA Spindle (Right Side) (Use p/n 4130404) (Prior to SN
0300079125)
215 4130406 1 Spindle (Right Side) (SN 0300079125 through 0300096000) 216 4740086 4 Thrustwasher 217 4751800 4 Flatwasher 1/2in Regular 218 4846070 2 Tie-Rod 219 3780182 2 O-Ring Only (Bottom Kingpin Location Only) (SN 0300079125
through 0300096000)
224 3020029 AR Grease, Bearing 300 2902400 1 Kingpin and Bushings Update Kit for Machines Built (Includes Newer Design Items 202, 203, 205, 210 & 219). See Field Service Bulletin AWP-04-11. (Prior to SN 0300079125, SN
0300079125 through 0300096000)
Ref Note: Newer bushings will fit in “Prior to SN 0300079125”
axles however if kingpin holes measure 1.503in diameter or larger in any direction, axle weldment must be replaced before installation of kit.
Ref Note: Spindles require drilling and tapping for 8 additional
kingpin mtg bolts. Newer design kingpins require 4 mtg REV
ITEM PART NUMBER QTY
bolts each. DESCRIPTION
401 Ref FRAME WELDMENT OPTIONS 401 2360539 Ref Frame Weldment 400S with 500Lbs Capacity (Prior to SN
0300072506)
401 2360625 Ref Frame Weldment 400S with 500Lbs Capacity (SN 0300072506
through 0300076632)
401 2360650 Ref Frame Weldment 400S with 500Lbs Capacity (SN 0300076633
through 0300096000)
401 2360540 Ref Frame Weldment 400S with 750Lbs Capacity (Prior to SN
0300072506)
401 2360626 Ref Frame Weldment 400S with 750Lbs Capacity (SN 0300072506
through 0300076632)
401 2360651 Ref Frame Weldment 400S with 750Lbs Capacity (SN 0300076633
through 0300096000)
401 2360541 Ref Frame Weldment 460SJ (Prior to SN 0300072506) 401 2360627 Ref Frame Weldment 460SJ (SN 0300072506 through 0300076632) 401 2360652 Ref Frame Weldment 460SJ (SN 0300076633 through 0300096000) 401 2360551 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (Prior to
SN 0300072506)
401 2360628 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (SN
0300072506 through 0300076632)
401 2360653 Ref Frame Weldment 460SJ CE Spec with Pneumatic Tires (SN
