Engine

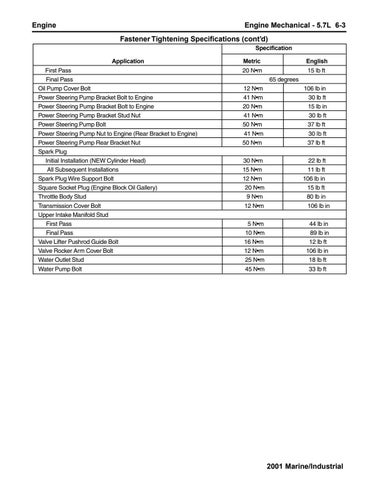

Engine Mechanical - 5.7L 6-3 Fastener Tightening Specifications (cont’d) Specification
Application First Pass Final Pass Oil Pump Cover Bolt Power Steering Pump Bracket Bolt to Engine Power Steering Pump Bracket Bolt to Engine Power Steering Pump Bracket Stud Nut Power Steering Pump Bolt Power Steering Pump Nut to Engine (Rear Bracket to Engine) Power Steering Pump Rear Bracket Nut Spark Plug Initial Installation (NEW Cylinder Head) All Subsequent Installations Spark Plug Wire Support Bolt Square Socket Plug (Engine Block Oil Gallery) Throttle Body Stud Transmission Cover Bolt Upper Intake Manifold Stud First Pass Final Pass Valve Lifter Pushrod Guide Bolt Valve Rocker Arm Cover Bolt Water Outlet Stud Water Pump Bolt
Metric 20 N•m
English 15 lb ft 65 degrees
12 N•m 41 N•m 20 N•m 41 N•m 50 N•m 41 N•m 50 N•m
106 lb in 30 lb ft 15 lb in 30 lb ft 37 lb ft 30 lb ft 37 lb ft
30 N•m 15 N•m 12 N•m 20 N•m 9 N•m 12 N•m
22 lb ft 11 lb ft 106 lb in 15 lb ft 80 lb in 106 lb in
5 N•m 10 N•m 16 N•m 12 N•m 25 N•m 45 N•m
44 lb in 89 lb in 12 lb ft 106 lb in 18 lb ft 33 lb ft
2001 Marine/Industrial
