Service Brakes Repair (Dry Brake)
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12.
BOLT WHEEL CYLINDER STRUT SPRING SECONDARY BRAKE SHOE PLATE SPRING LEVER (STOP) SPRING WASHER SPRING (SHOE HOLD DOWN) WASHER
1800 SRM 1135
13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23.
PAWL LEVER PARK BRAKE CABLE ADJUSTER ASSEMBLY PLUG SPRING (ADJUSTER) PRIMARY BRAKE SHOE PARK BRAKE LEVER PIN PLUG BACKING PLATE PIN

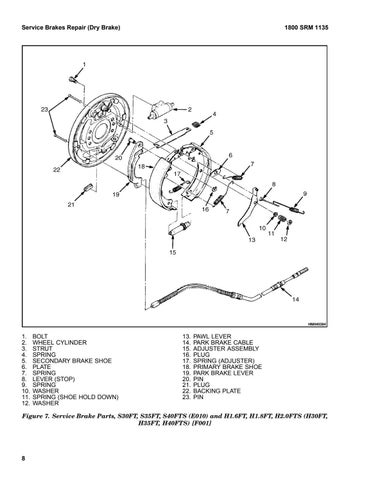

Figure 7. Service Brake Parts, S30FT, S35FT, S40FTS (E010) and H1.6FT, H1.8FT, H2.0FTS (H30FT, H35FT, H40FTS) [F001]
8
