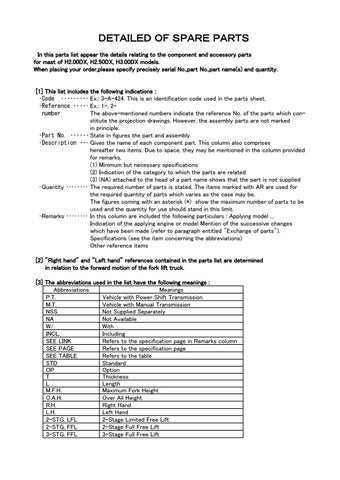

ＤＥＴＡＩＬＥＤ ＯＦ ＳＰＡＲＥ ＰＡＲＴＳ In this parts list appear the details relating to the component and accessory parts for mast of H2.00DX, H2.50DX, H3.00DX models. When placing your order,please specify precisely serial No.,part No.,part name(s) and quantity.
[1] This list includes the following indications : ･Code ･････････ Ex.: 3-A-424. This is an identification code used in the parts sheet. ･Reference ･････ Ex.: 1-, 2number The above-mentioned numbers indicate the reference No. of the parts which constitute the projection drawings. However, the assembly parts are not marked in principle. ･Part No. ･･････ State in figures the part and assembly. ･Description ･･･ Gives the name of each component part. This column also comprises hereafter two items. Due to space, they may be mentioned in the column provided for remarks. (1) Minimum but necessary specifications (2) Indication of the category to which the parts are related (3) (NA) attached to the head of a part name shows that the part is not supplied ･Quantity ････････ The required number of parts is stated. The items marked with AR are used for the required quantity of parts which varies as the case may be. The figures coming with an asterisk (*) show the maximum number of parts to be used and the quantity for use should stand in this limit. ･Remarks ････････ In this column are included the following particulars : Applying model ... Indication of the applying engine or model Mention of the successive changes which have been made (refer to paragraph entitled "Exchange of parts"). Specifications (see the item concerning the abbreviations) Other reference items [2] "Right hand" and "Left hand" references contained in the parts list are determined in relation to the forward motion of the fork lift truck. [3] The abbreviations used in the list have the following meanings : Abbreviations Meanings P.T. Vehicle with Power Shift Transmission M.T. Vehicle with Manual Transmission NSS Not Supplied Separately NA Not Available W/ With INCL. Including SEE LINK Refers to the specification page in Remarks column SEE PAGE Refers to the specification page SEE TABLE Refers to the table STD Standard OP Option T Thickness L Length M.F.H. Maximum Fork Height O.A.H. Over All Height R.H. Right Hand L.H. Left Hand 2-STG. LFL 2-Stage Limited Free Lift 2-STG. FFL 2-Stage Full Free Lift 3-STG. FFL 3-Stage Full Free Lift
