Cooling System and Radiator Repair
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.
COOLANT RECOVERY TANK RADIATOR CAP RADIATOR TOP HOSE RADIATOR SHROUD CHARGED AIR COOLER BRACKET ON FRAME FRAME LOWER HOSE BRACKET ISOLATOR AND/WITH PIN
100 SRM 927
12. 13. 14. 15. 16. 17. 18. 19. 20. 21.
DRAIN VALVE FAN CAPSCREW LOCKWASHER WASHER NUT TRANSMISSION OIL COOLER IN/OUT WASHER CAPSCREW GROMMET

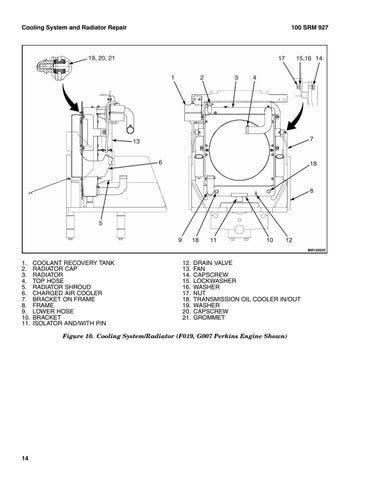

Figure 10. Cooling System/Radiator (F019, G007 Perkins Engine Shown)
14
