100 SRM 927
Hydraulic Tank Repair
1. 2. 3. 4. 5. 6. 7. 8. 9. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11.
WASHER (3) LOCKWASHER (3) BREATHER FILTER HEAD O-RING DIPSTICK O-RING SEAL SPRING WASHER FILTER
12. 13. 14. 15. 16. 17. 18. 19. 20. 21.
DRAIN PLUG NUT (3) ADAPTER ADAPTER HYDRAULIC TANK O-RING RETAINING RING FITTING FITTING PLUG
SIGHT GLASS FILTER FILTER HEAD SPRING O-RING CAPSCREW PLUG BREATHER WASHER
10. 11. 12. 13. 14. 15. 16. 17.
NUT DRAIN PLUG O-RING HYDRAULIC TANK COVER SEAL WASHER CAPSCREW

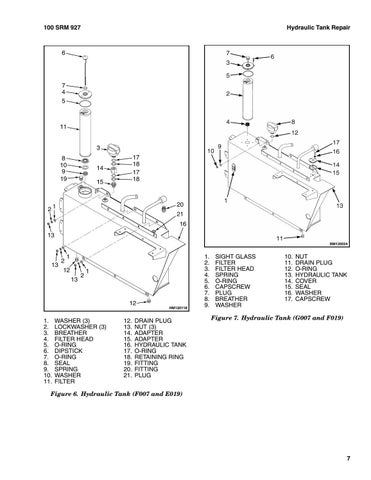

Figure 7. Hydraulic Tank (G007 and F019)
Figure 6. Hydraulic Tank (F007 and E019)
