620 SRM 294
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14.
Motors Repair
FIELD FRAME ASSEMBLY ARMATURE BRUSH SPRING (4) BRUSH (4) BEARING BEARING DRIVE END FRAME COMMUTATOR END FRAME SCREW (4) SCREW (4) WASHER (8) WASHER FAN COVER BRUSH COVER
15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27.
SCREW (4) WASHER (4) FAN HUB FAN SCREW (2) SNAP RING OIL SEAL BRUSH HOLDER SCREW (4) WASHER (4) BRUSH MOUNTING PLATE MOUNT PLATE SCREW (4)

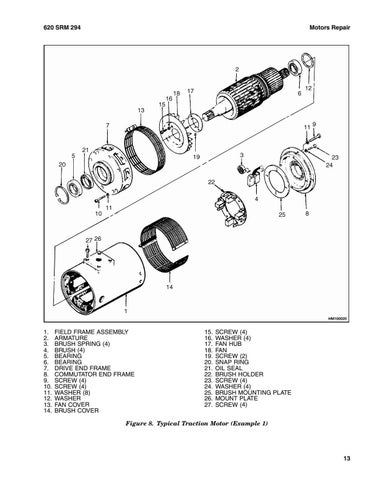

Figure 8. Typical Traction Motor (Example 1)
13
