1800 SRM 1005
1. 2. 3. 4. 5. 6.
MDU HOUSING ALLEN-HEAD SCREW WASHER DRIVE MOTOR COVER FILL PLUG
Brake Assembly Repair
7. 8. 9. 10. 11. 12.
ALLEN-HEAD SCREW WASHER NUT SPACER GEAR OIL SLINGER
13. 14. 15. 16. 17. 18.
BALL BEARING O-RING BRAKE ASSEMBLY WOODRUFF KEY (GEAR) WOODRUFF KEY (HUB) HUB

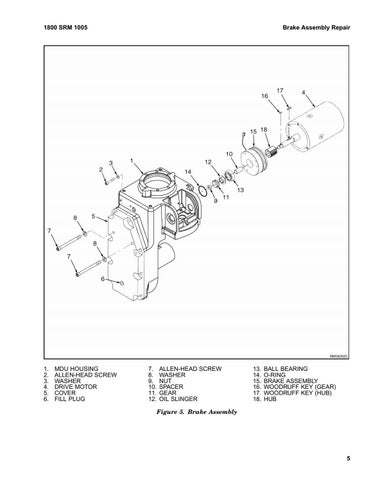

Figure 5. Brake Assembly
