Lubrication RT800E OPERATOR MANUAL

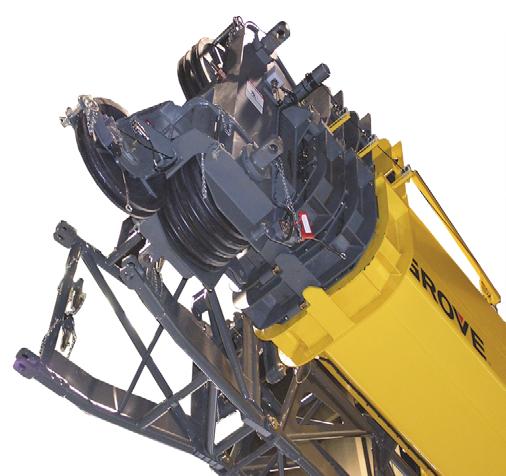

5 places by brush. Extend boom for access through holes.

Warning

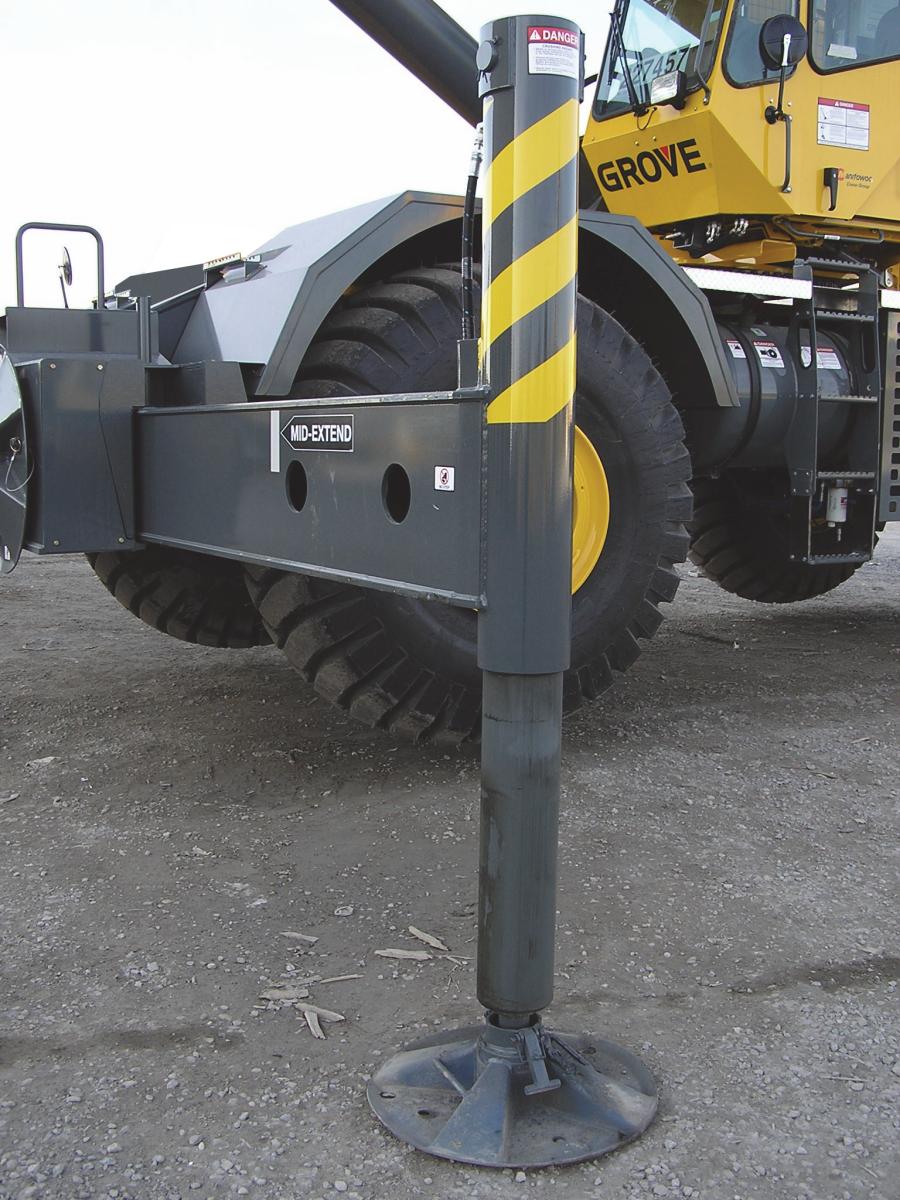

Crane Setup for Items 74 - 78: Crane to be set up on firm level surface with fully extended outriggers and 22,000lb counterweight installed. Ensure crane is level. Boom must be directly over the front and the swing lock engaged. Set boom angle at zero degrees. Do not exceed 115ft boom length in auto mode A. Do not exceed 90ft boom length in auto mode B. All lubrication points can be accessed by operating the crane in the 0001 RCL operating mode by using both A & B boom configurations. Do NOT operate the crane in the RCL bypass to lubricate the boom.

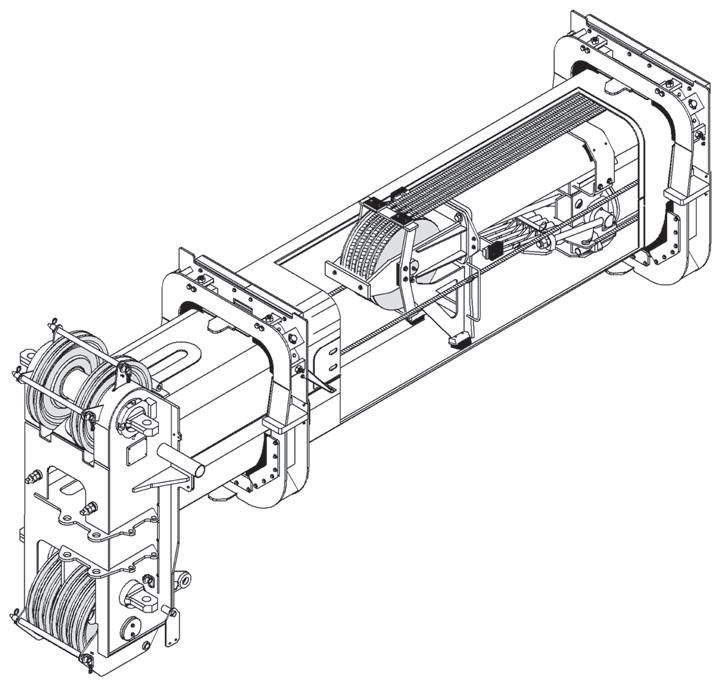

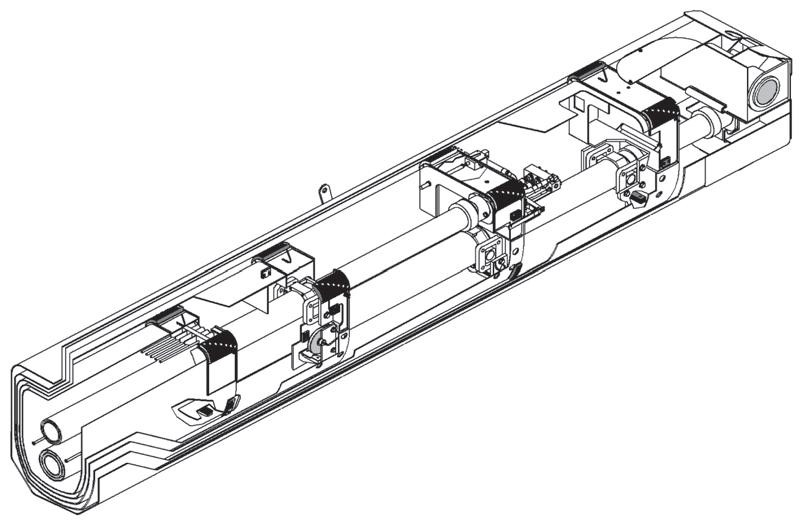

74 Internal Side and Bottom Wear Pads (Inner Sections) Figure5-8

EP-MPG Extreme Pressure Multipurpose Grease 6829003477

Thoroughly coat all areas the wear pad moves on

250 hours or 3 months

NOTE:See Table 5-1, page 5-32 for how to access lubrication points 74 through 78.

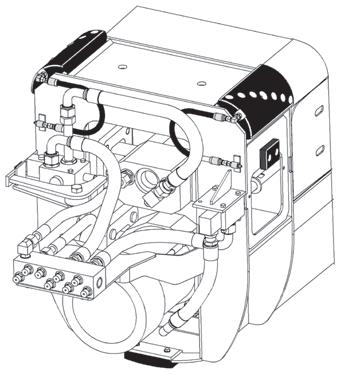

75 Boom Section Upper Wear Pads Figure5-8

76 Boom Section Upper and Lower Wear Pads Figure5-8

EP-MPG Extreme Pressure Multipurpose Grease 6829003477

EP-MPG Extreme Pressure Multipurpose Grease 6829003477

Until grease extrudes 50 hours or 1 week

Thoroughly coat all areas the wear pad moves on

50 hours or 1 week

14 places by brush; with boom in extended position through access holes

8 grease fittings; with boom in extended position through access holes

12 places by brush; with boom in extended position
