Information Center Electronic Display (cont.)

Information Center Electronic Display (cont.)

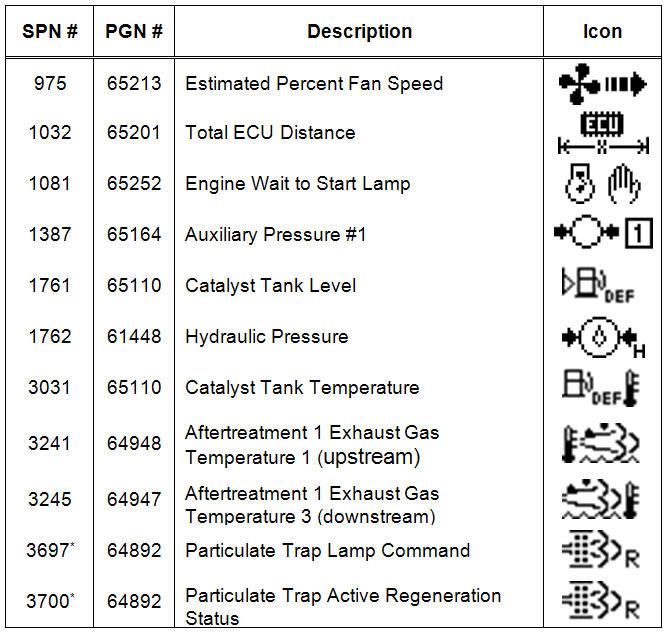

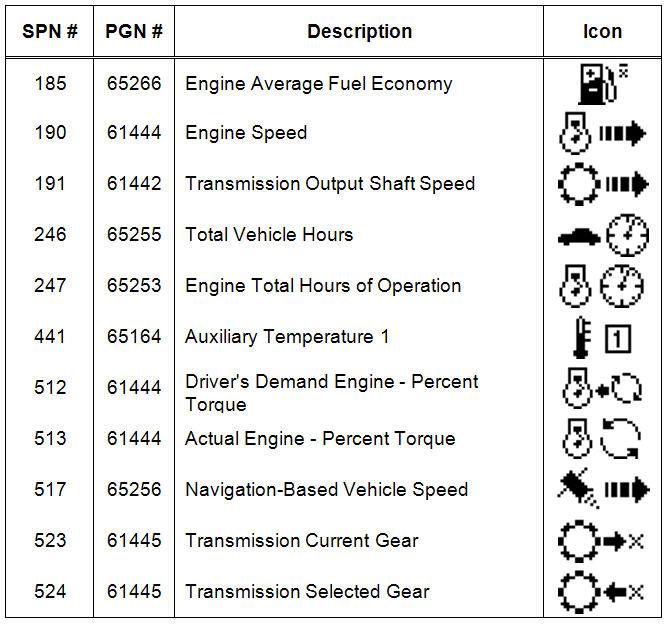

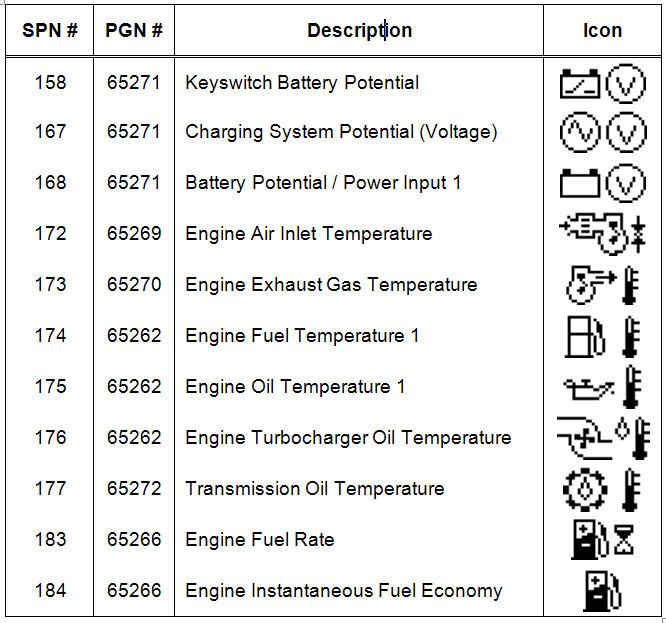

Engine Stop

The engine stop icon is used to notify the operator that the engine is in “backup” or “limp” mode. See the backup mode description on page62 for more details.

Engine Water Temp Overheat Warning (DPF Models)

The engine water temperature overheat icon is used to notify the operator of high engine coolant temperature. The operator should take action to reduce load on the engine and allow the engine to cool.

DPF (Diesel Particulate Filter) Service (DPF Models)

The DPF service icon is used to notify the operator that the engine is in an emergency condition where ash cleaning is required. See the ash cleaning mode description on page62 for more details.

Elevated EGT (Exhaust Gas Temperature) (DPF Models)

The EGT icon is used to notify the operator of high exhaust temperatures during an active reset/stationary regeneration.

Parking Brake (DPF Models)

The parking brake icon is used to remind the operator that the parking brake switch must be engaged prior to a stationary regeneration.

DPF Regeneration Acknowledgement (DPF Models)

The DPF regeneration acknowledgement icon is used to notify the operator that the E-ECU has received the stationary regeneration request. It is used to prompt the operator to start a stationary regeneration request or to allow a reset regeneration.

Aftertreatment Error

Engine Emission System Failure. Indicates an error or fault with emission critical components.

NOTE: Engine derate will occur if error/fault not corrected.
