PWP SYSTEM TROUBLESHOOTING

from Gehl RS6-34 Telescopic Handler Operator's Manual 50960083 - PDF DOWNLOAD

by www.heydownloads.com

Chapter 8 SERVICE AND STORAGE

Problem

PWP System switch lamp flashes when switch is pressed “ON.”

Parking brake does not engage when the PWP System switch is pressed “ON.”

Carriage tilt and auxiliary functions continue operating when the PWP System switch is pressed “ON.”

Transmission does not remain de-clutched when shifted into “Forward or Reverse” when the PWP switch is “ON.”

Boom control functions do not operate.

Possible Cause

Remedy

PWP System switch lamp flashes when switch is turned “OFF.”

Parking brake switch lamp stays “ON” when PWP System switch is “OFF.”

PWP System is not activated.

With PWP System switch “ON,” apply service brakes for three seconds until PWP switch lamp is lit continuously.

Machine is not level.

PWP System remote shutdown switch is disengaged.

PWP System remote shutdown switch is not plugged into the connector at the end of the boom.

PWP System angle sensor is unplugged or faulty.

Level the machine.

Engage the PWP System remote shutdown switch.

Plug in and engage the PWP System remote shutdown switch.

Contact your Gehl dealer for assistance.

PWP System is not de-activated.

With engine running, apply service brakes for three seconds until PWP switch lamp goes off.

Chapter 9 Decal Locations

General Information

Caution

ALWAYS read and follow the safety precautions and information shown on decals. If any decals are damaged or unreadable, or if the unit is repainted, the decals must be replaced. If repainting, BE SURE that all decals that apply to your machine are affixed in their proper locations

Decal location information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted.

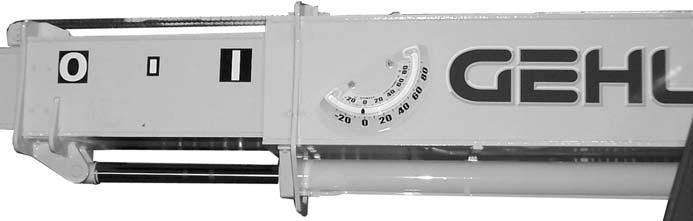

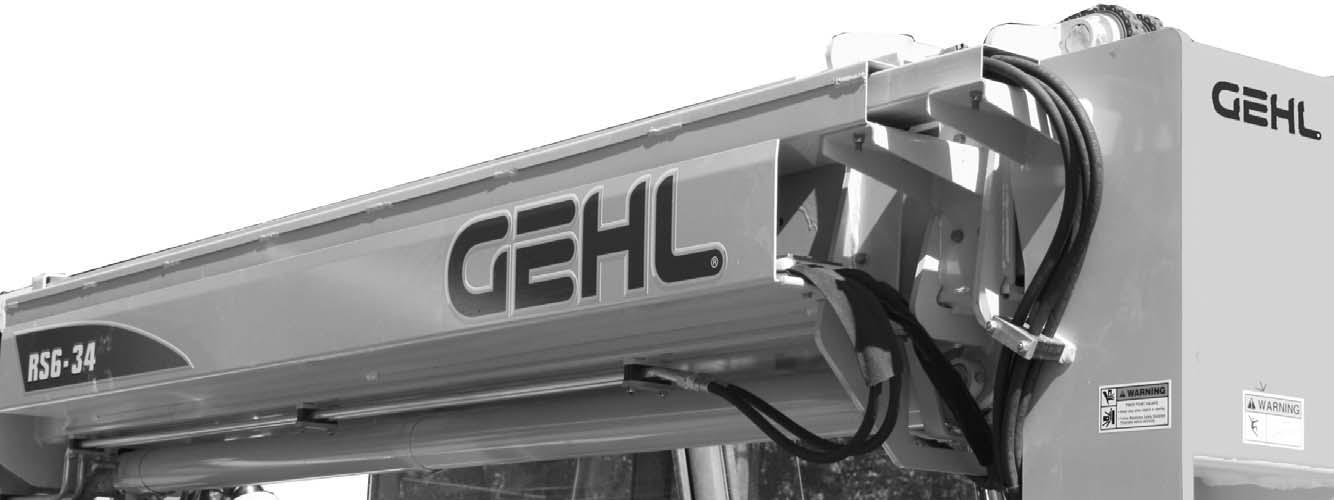

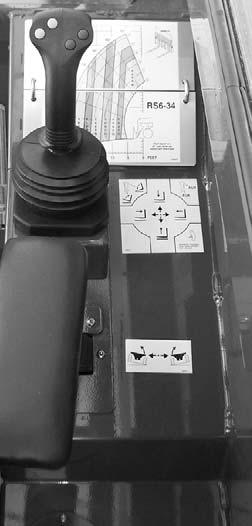

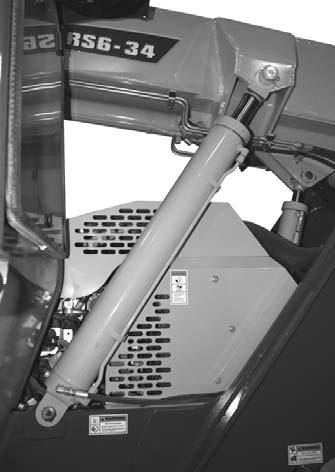

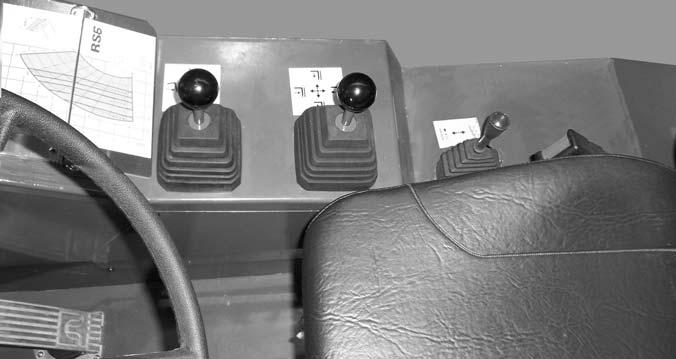

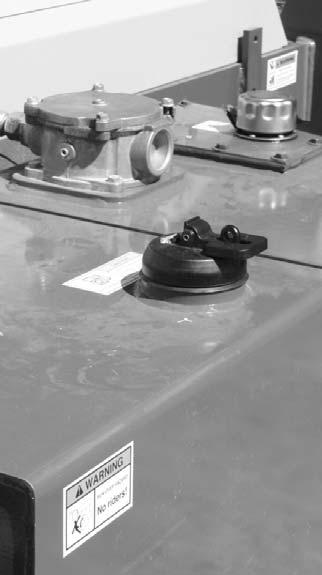

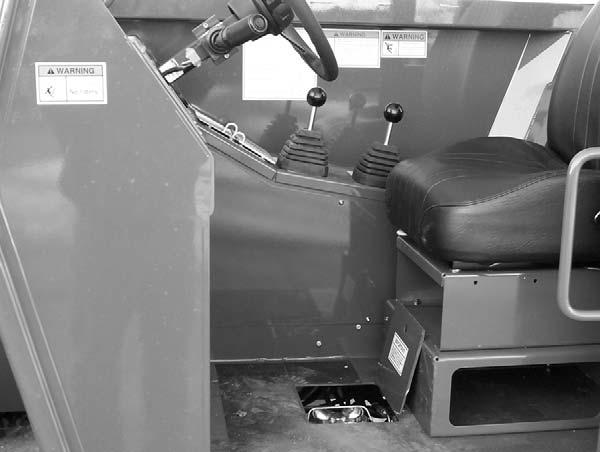

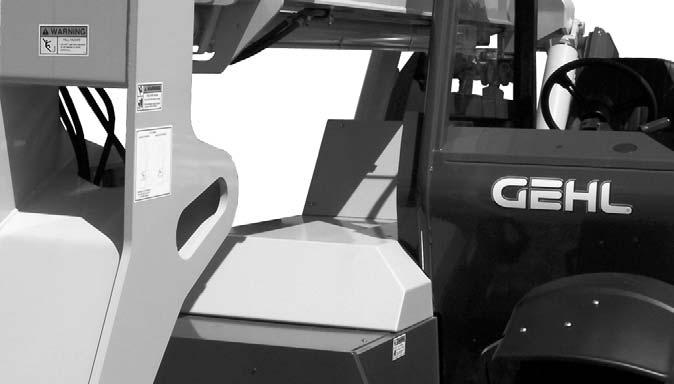

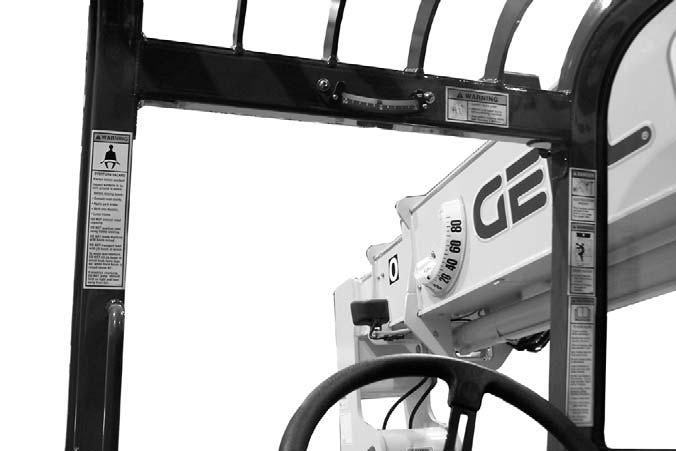

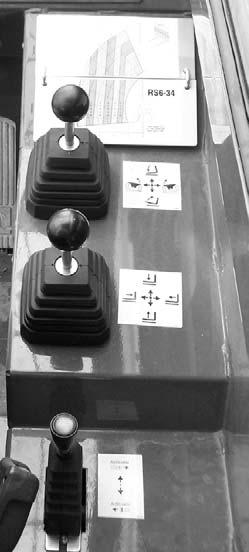

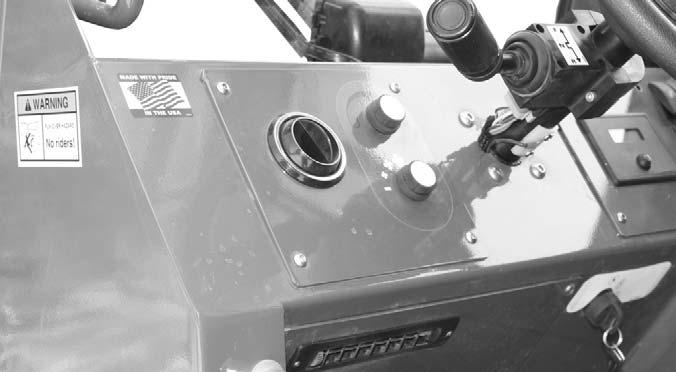

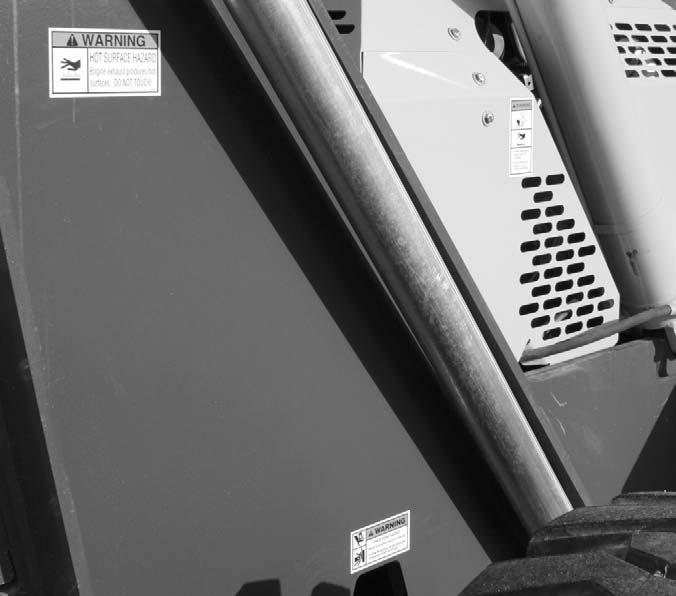

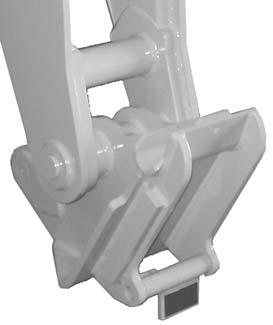

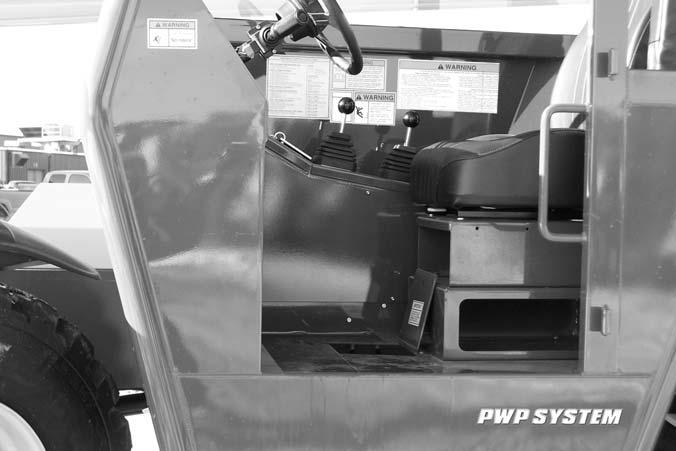

For correct replacement of decals, compare the location photographs to the machine before starting to refinish the unit. Check off each required decal using the illustration reference number to find the part number, description and quantity in the list. Refer to the appropriate illustration for replacement locations.

If there is a decal on a part that is being replaced, be sure that the decal is applied to the replacement part.

NOTE: Refer to the Safety chapter of this manual for specific information provided on the various safety decals.

New Decal Application

Before applying the new decals, surfaces must be free from dirt, dust, grease and other foreign material. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out decal surface. To apply a die-cut decal, first remove the backing paper. Then, properly orient and position the decal onto the clean mounting surface. After the decal is firmly applied and smoothly pressed down, peel off the top covering paper.
