Operation

Overviewofforkarms

• DO NOT set down loads too near slopes, construction pits, fire escape routes, equipment that you need to access at all times, etc.

These instructions are based on the “Guidelines for testing and repairing fork arms” (© by VETTER Umformtechnik GmbH):

• Only use fork arms according to their designed use.

• Only the manufacturer is authorized to complete repair work on the fork arms.

• Always keep fork arms clean.

• Load both fork arms evenly.

• Tie down loads to avoid losing them.

• Complete regular checks according to the Operator’s Manual.

• DO NOT exceed the load center and lifting capacity.

• DO NOT use standard fork arms as reverse forks.

• DO NOT push, pull or shove the fork arms, or move them in at a slanting angle (risk of damaging them due to lateral forces).

• DO NOT pull off loads, or allow them to fall onto the fork arms.

• DO NOT raise by using the tilt cylinder (tilt device).

• DO NOT modify the fork arms, or attach any additional device.

• DO NOT transport people on the fork arms.

• DO NOT transport molten material.

• DO NOT perform any cable-laying work.

• The operator must regularly check:

• Lock:Functional check.

• Hooks:Visual check for cracks and deformations.

• Bend:Visual check for dents, nicks and cracks.

• Bend and blade:Do not use any longer if worn over 10%.

• Blade and tip:Check for deformations.

• Wear on fork arms:See service manual or manufacturer.

• In case of damage: Stop using the fork arms.

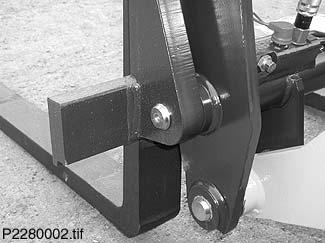

Fitting the pallet forks onto the quickhitch facility

☞ Pick up the attachment

➥ –see Locking: attachments without hydraulic function on page85.

WARNING!

The attachment must always be safely locked onto the quickhitch facility –Accident risk.

☞ Before working, make sure that the attachment is safely locked onto the quickhitch facility by using the lock cylinder.

➥ You must be able to see the lock pins on both sides of the mounting holes on the attachment.

Removing the pallet forks from the quickhitch facility

WARNING!

The attachment must be placed on the ground so that it will not fall over when removed –

Risk of personal injury.

☞ Position the attachment so that after unlocking it will stand safely and not tip over.

Load diagram

The load diagram is located in the cab (front window) of the machine, values are calculated for the respective machine model –see Use: attachment on page12.

WARNING!

If you exceed the maximum loads stated, the machine may become unstable.

(610 mm) load center.
