Transporting Machine

Install Transport Lock

1. Fully extend transport cylinder to raise disk.

Important: To avoid machine damage. Make sure transport lock is in place on the transport cylinder rod. Secure transport lock in place with transport lock pin and hairpin.

2. Secure transport lock in place with transport lock pin and hairpin clip.

Attaching Warning Light Plug

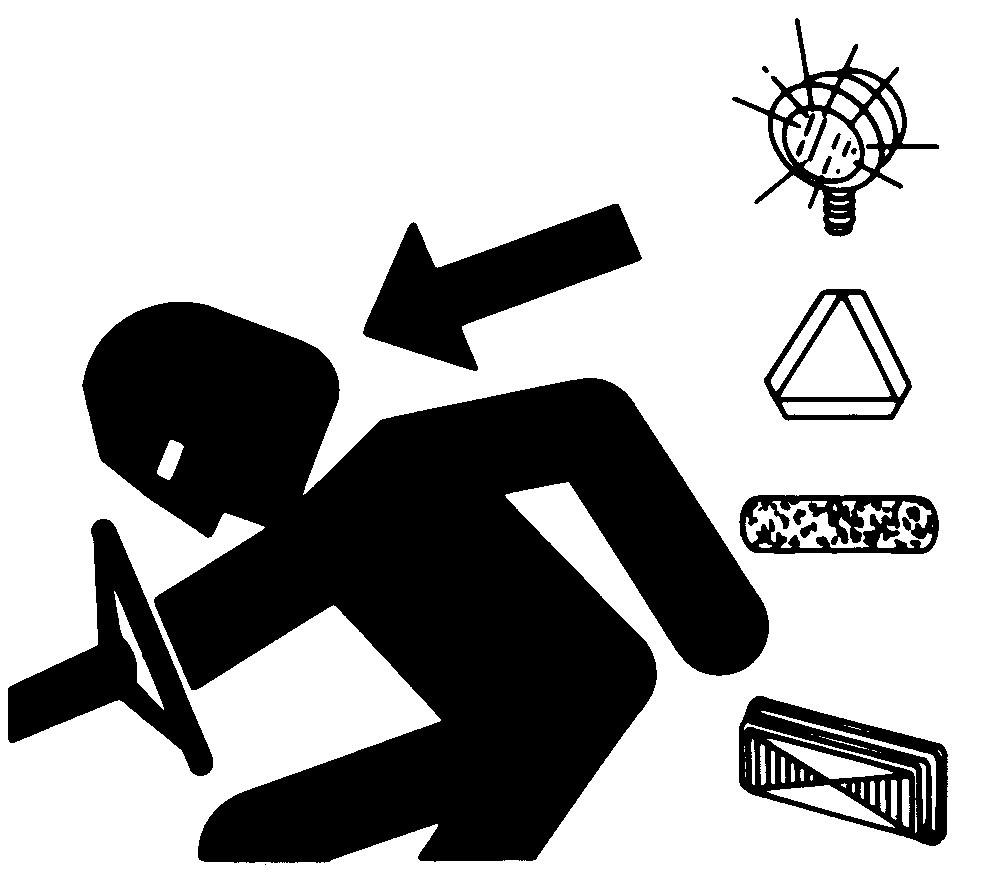

CAUTION: When transporting machine on a road or highway at night or during the day, use accessory lights and devices for adequate warning to operators of other vehicles. In this regard, check local governmental regulations. Various safety lights and devices are available from your Frontier dealer.

1. Attach warning light plug to tractor outlet socket.

2. To obtain maximum warning, be sure warning lights, reflectors and SMV sign are clean.

Transporting The Machine

CAUTION: When transporting machine on a smooth surface road, do not exceed maximum tractor transport speed. Reduce speed considerably when traveling over rough ground. (See TOW LOADS SAFETY in SAFETY section).

Reduce speed when turning.

Pin drawbar in center position to prevent side-to-side movement. When turning, do not uncouple tractor brake pedals and apply the tractor brakes individually in an attempt to make a shorter turn.
