Transporting Machine
from Frontier Hinge Wheel Off Set Disk Harrow DH4317 DH4320 Assembly & Operating Instruction Manual(5RPMA
Install Transport Lo Cking Devices

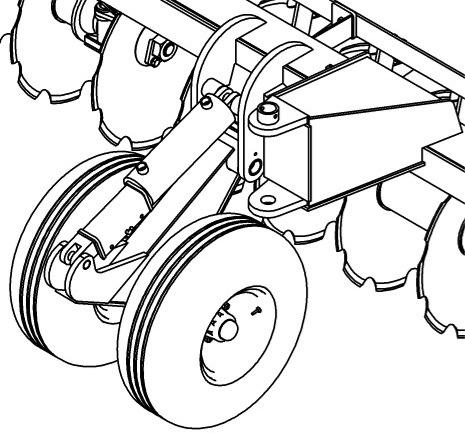

1. Lock harrow in closed position with transport lock pin.
2. Secure transport locks on lift cylinders with locking pins and hairpin clips (See PREPARING THE HARROW FOR TRANSPORT in OPERATING THE MACHINE section)
Important: Avoid machine damage. Make sure transport locks are in place on the transport cylinder rods.
Attaching Warning Li Ght Plug

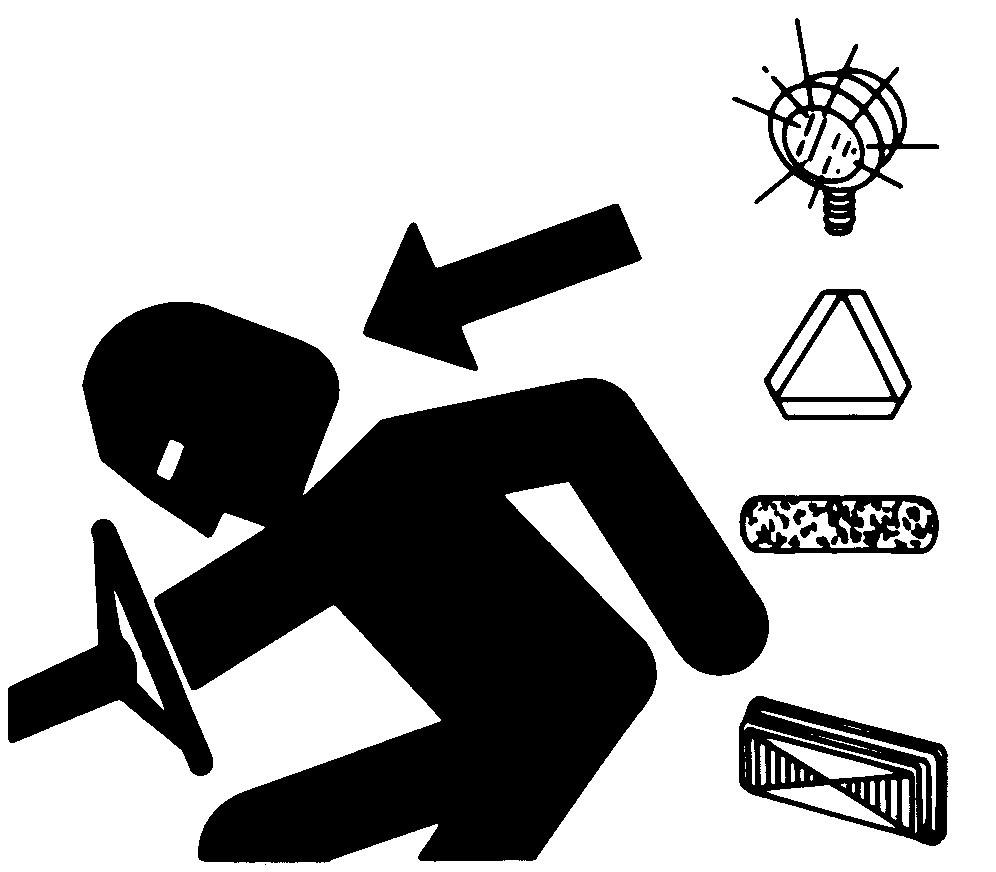

CAUTION: When transporting machine on a road or highway at night or during the day, use accessory lights and devices for adequate warning to operators of other vehicles. In this regard, check local governmental regulations. Various safety lights and devices are available from your Frontier dealer.
1. Attach warning light plug to tractor outlet socket.
2. To obtain maximum warning, be sure warning lights, reflectors and SMV sign are clean.
Transporting The Mac Hine
CAUTION: When transporting machine on a smooth surface road, do not exceed maximum tractor transport speed. Reduce speed considerably when traveling over rough ground. (See TOW LOADS SAFETY in SAFETY section).
Pin drawbar in center position to prevent side-toside movement.
Reduce speed when turning. When turning, do not uncouple tractor brake pedals and apply the tractor brakes individually in an attempt to make a shorter turn.
