Operation

3. Using hydraulic, slowly lower blade all the way down to horizontal.

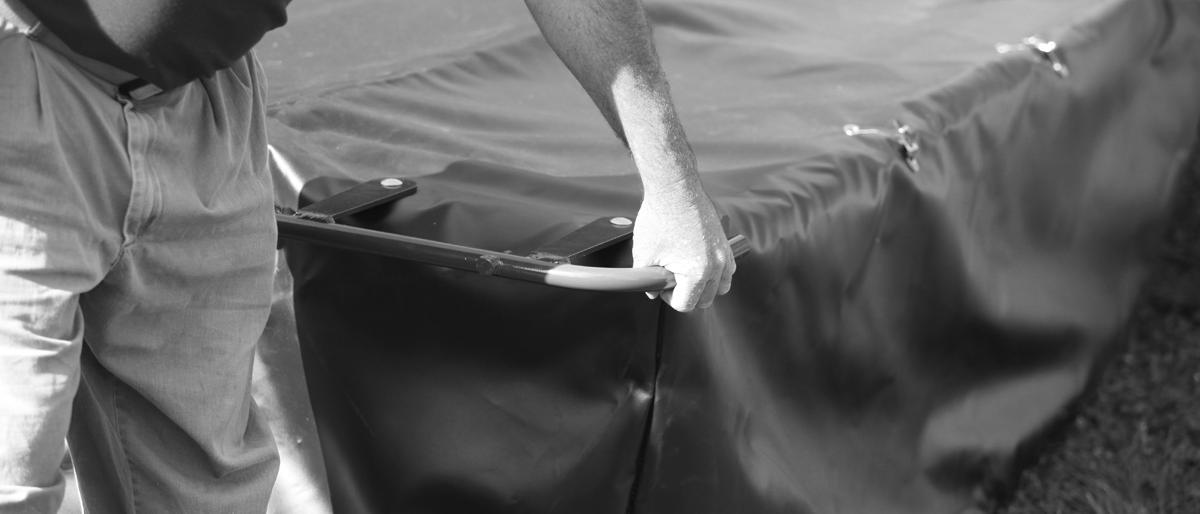

4. Unlock the cover to insure that cover is down and locked into place.

NOTE: Once you begin mowing, this pin must be approximately in the middle of slide to allow bar to float up and down properly.

Keep Riders Off Machine

Danger

Keep riders off. Riders are subject to injury or death such as being struck by foreign objects and being thrown off the machine. Riders may also fall off and be run over by machine. Riders also obstruct the operator’s view resulting in the machine being operated in an unsafe manner.

Follow Safe Operating Procedures

6. If first time mowing, level adjustments need to be made. Otherwise, proceed to step 7.

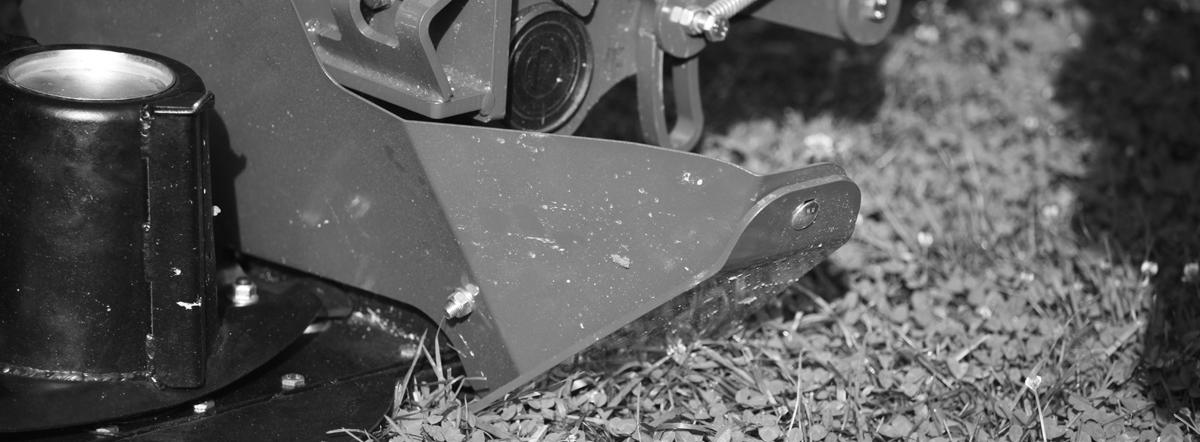

A. Lower mower until primary skid plate is on ground and travel floater is in middle of slide.

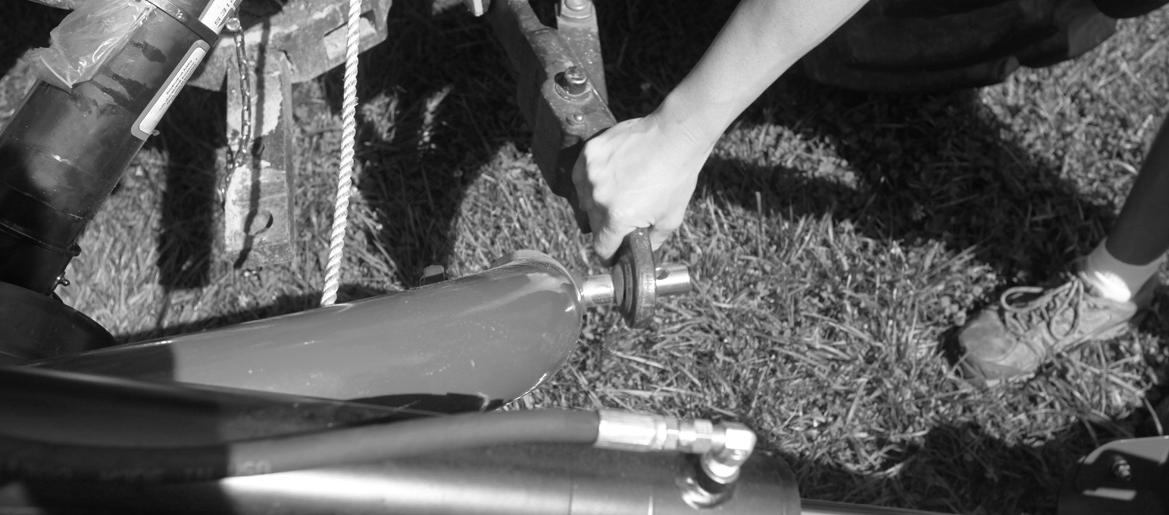

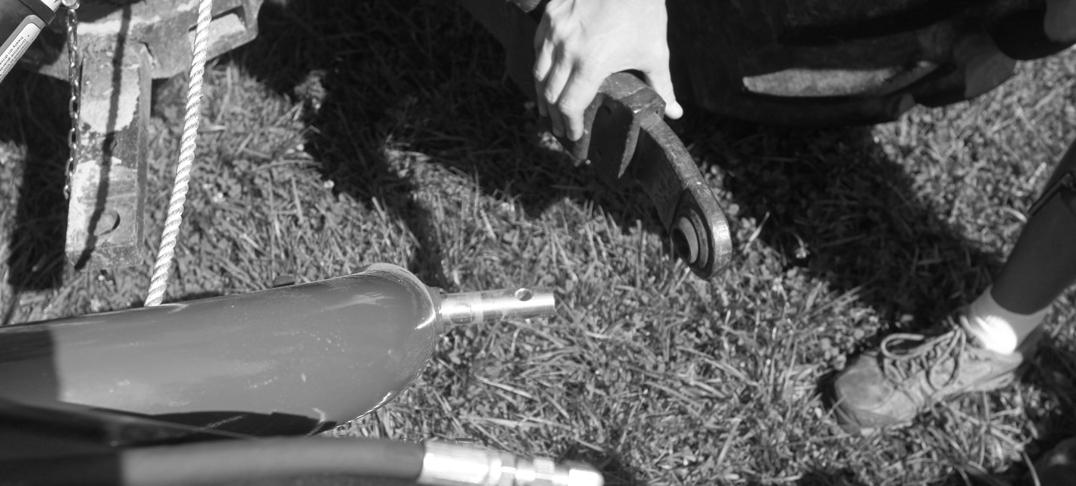

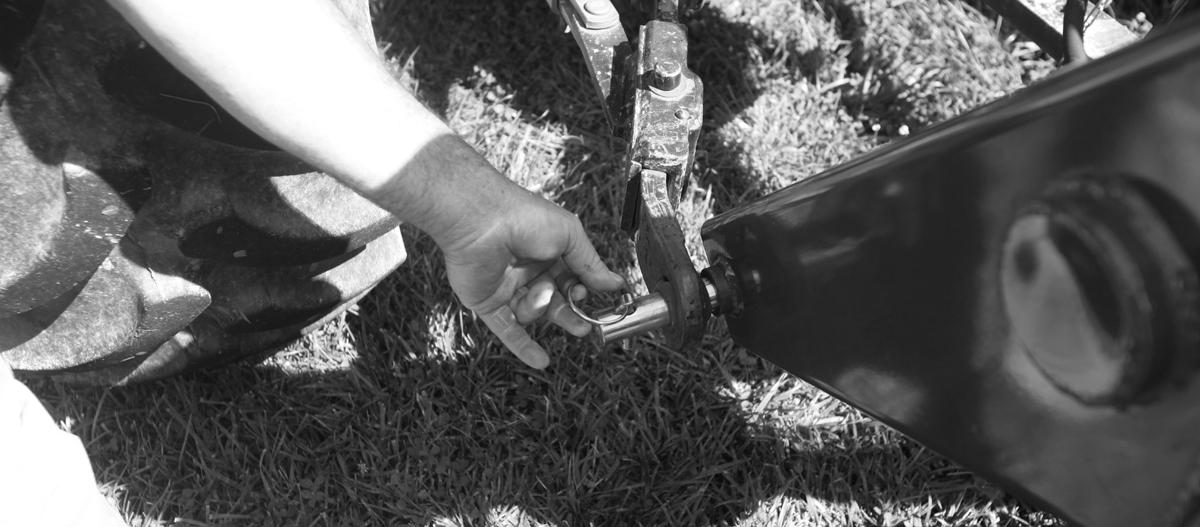

B. Using lift arm adjustments, adjust mower until hitch pins are horizontally level with ground.

C. Make sure stabilizer arms on tractor lift arms are locked firmly in place so mower will not move side to side when mowing.
