ATTACHING AND DETACHING

Detaching Rake From Tractor

CAUTION: To prevent personal injury caused by unexpected movement:

Park machines on a level surface.

Engage tractor parking brake and/or place transmission in “Park.”

Shut off tractor engine and remove key.

1. Park rake on level surface, or block ground wheels so machine cannot roll after detaching from tractor.

2. Lower rake wheels, or raise rake wheels .

If rake wheels are raised, install transport pins (A) through arm support brackets and fasten with spring-locking pins.

3. Engage tractor parking brake and/or place transmission in “Park.”

4. Shut off tractor engine and remove key.

5. Push tractor SCV lever to the float position.

Attaching And Detaching

Attaching And Detaching

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source, such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

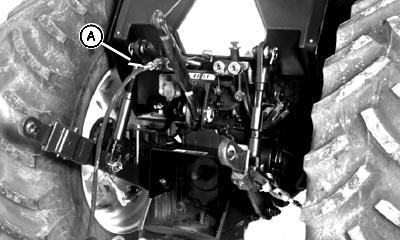

8. Disconnect hydraulic hose (A) from tractor receptacle.

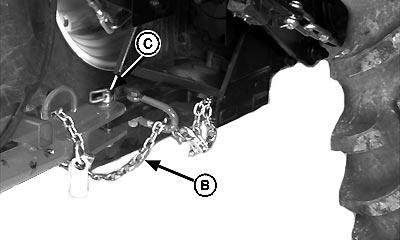

9. Unhook safety chain (B).

10. Remove hitch pin (C).

11 Put tractor SCV lever in the neutral position.
