Replacing the LCD Cable and Brackets

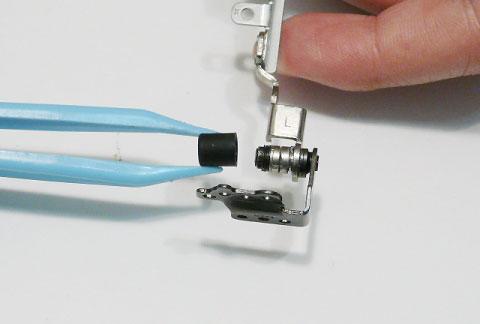

NOTE: If the LCD Brackets were replaced, ensure that the rubber cable connectors are removed from the faulty brackets and installed on the replacements.

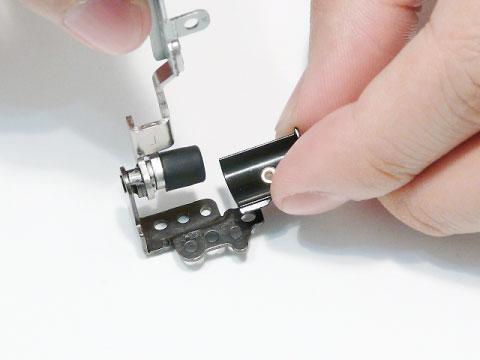

1. Replace the Hinge Covers on the left and right LCD Brackets. IMPORTANT: The left and right Hinge Covers are not identical; the left cover has a single cut out whereas the right cover has two cutouts. Ensure that the correct cover is used during reassembly.

Left Cover Right Cover

2. Replace the two screws securing the Hinge Covers to the brackets.

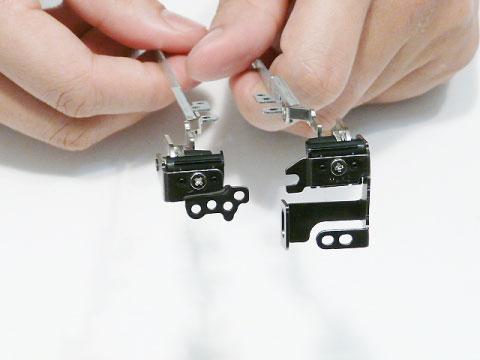

NOTE: The LCD Brackets are not identical. Ensure that the correct bracket is used during reassembly.

Left Bracket Right Bracket

3. replace the four screws (two each side) securing the LCD Brackets to the LCD Panel.

4. Insert the LCD Cable into the panel connector as shown. 5. Secure the connector by replacing the adhesive strip as shown.
