Removing the LCD Brackets and FPC Cable

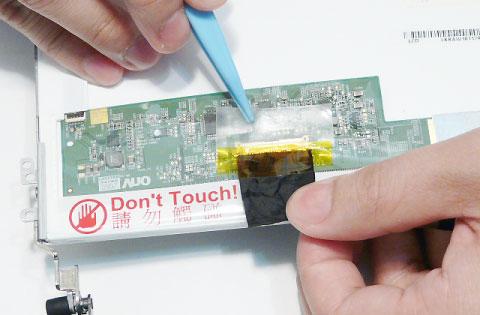

1. See “Removing the LCD Panel” on page 79. 2. Turn the LCD panel over on a clean surface. Carefully lift the adhesive tape securing the cable connector to the

LCD Panel.

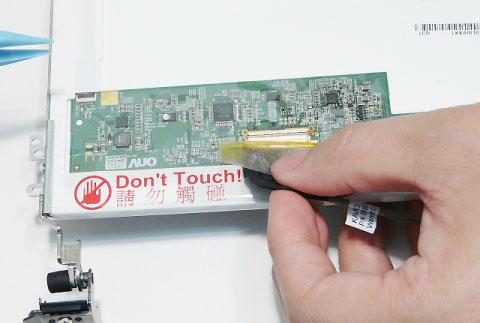

3. Hold the adhesive tape clear of the LCD Panel and disconnect the LCD cable as shown.

4. Remove the four securing screws (two each side) from the LCD Brackets.

Step

Size

LCD Brackets M2*3 4

Quantity Screw Type

5. Remove the two screws securing the Hinge Covers to the brackets.

NOTE: The LCD Brackets are not identical. Ensure that the correct bracket is used during reassembly.

Left Bracket Right Bracket

Step

Size

Hinge Covers M2*3 2

Quantity Screw Type

6. Remove the Hinge Covers from the left and right brackets as shown.

NOTE: If the LCD Brackets are replaced, ensure that the rubber cable connectors are removed from the faulty brackets and installed on the replacements.
