Removing the Power Board

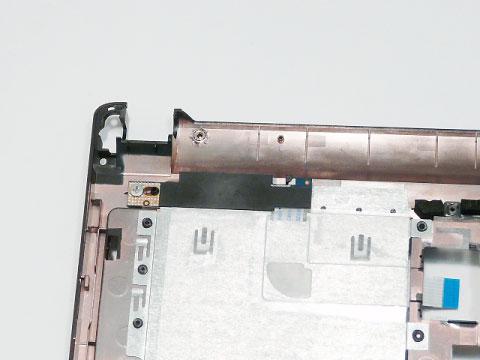

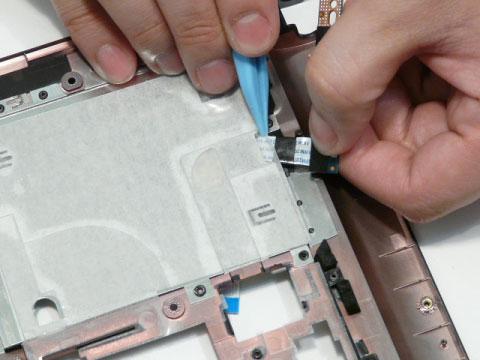

1. See “Removing the Upper Cover” on page 51. 2. Lift the Power Board FFC to detach the adhesive securing it in place.

3. Turn the Upper Cover over and remove the single screw securing the Power Board in place.

Step

Size

Power Board M2*3 1

Quantity Screw Type

5. Lift the mylar sheet away from the Upper Cover to allow the Power Board FFC to pass through the cover.

6. Remove the board from the Upper Cover.
