Removing the 3G Module

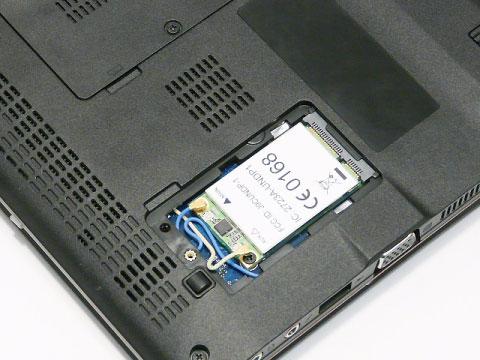

IMPORTANT: 3G functionality is not supported by all models. 1. See “Removing the Lower Covers” on page 41. 2. Disconnect the 3G Antenna cables from the 3G Module. IMPORTANT: The Blue cable attaches to the MAIN terminal and the Yellow cable attaches to the AUX terminal.

3. Move the antenna away and remove the single screw from the 3G Module.

Step

Size

3G Module M2*3 1

Quantity Screw Type

NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.
