A-5013/A-6913 Roadranger Valve

Constant air pressure is supplied from the slave valve to the roadranger valve “S” port (1).

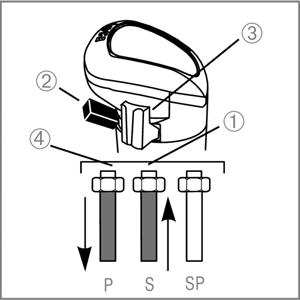

For LO range direct (range lever down (2), actuator button rearward (3),air flows out of the Roadranger valve “P” port (4).

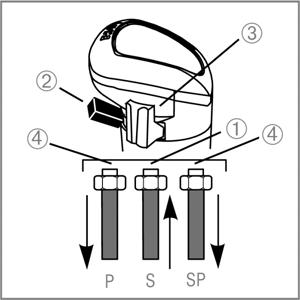

For LO range overdrive (range lever down (2), actuator button forward (3) air flows out of the roadranger valve “P” port and “SP” port (4).

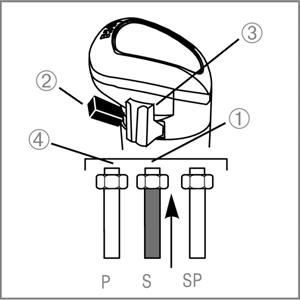

For HI range direct (range lever up (2), actuator button rearward (3),the lever prevents the air from passing through the Roadranger valve (4).

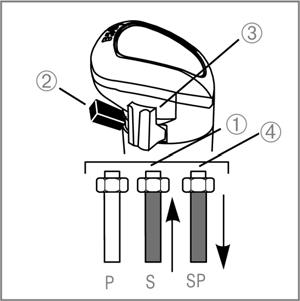

For HI range overdrive (range lever up (2), actuator button forward (3),air flows out of the Roadranger valve “SP” port (4). Air pressure which was in the outlet line is exhausted out the Roadranger valve bottom.
