RTLO-xx913 Model Splitter Cylinder Assembly

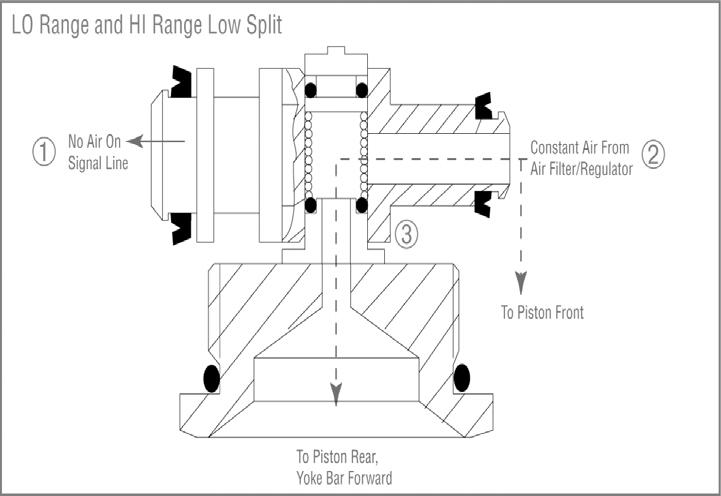

LO Range or HI Range Low Split - With the splitter control button in the "rearward" position, no air is supplied to the splitter cylinder cover top port (1). The constant air from the air filter/regulator assembly (2) moves the splitter piston rearward, disengaging the rear auxiliary drive gear (3).

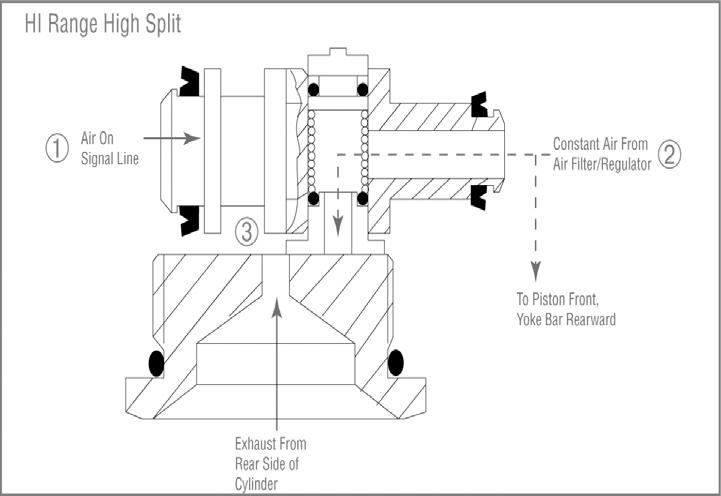

HI Range High Split - With the splitter control button in the "forward" position, air is supplied to the splitter cylinder cover top port (1), moving the splitter piston forward, engaging the rear auxiliary drive gear (2).

Spool Valve

The spool valve components shown are part of a self-contained valve assembly, part number A-6862.

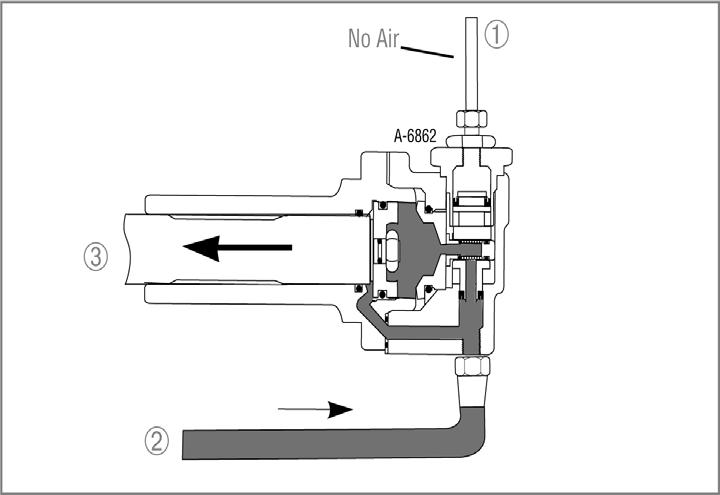

The spool valve piston travel is approximately 1/2". When no air is supplied from the Roadranger valve to the valve spool left side (1), constant air from the filter/regulator (2) is supplied to the splitter cylinder piston rear side moving the yoke bar forward.

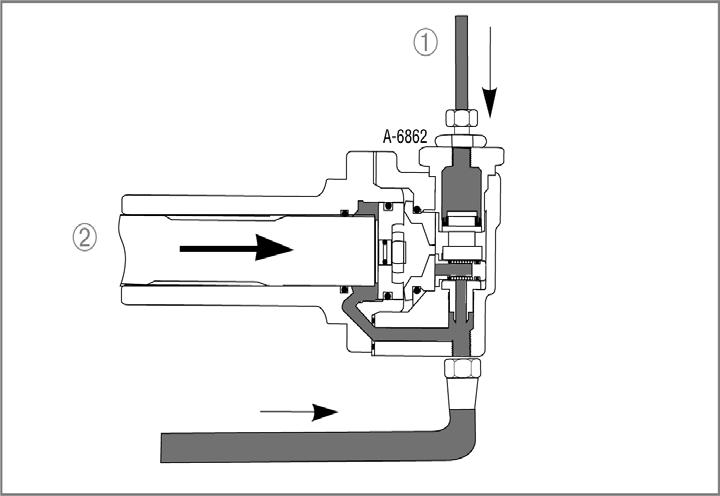

When air is supplied from the Roadranger valve to the valve spool left side (1), constant air from the filter/regulator (2) is supplied to the splitter cylinder piston front side moving the yoke bar rearward. Air is exhausted from the splitter cylinder rear (3) and from the breather situated on the valve assembly rear.
