RTLO-xx918 Model Splitter Cylinder Assembly

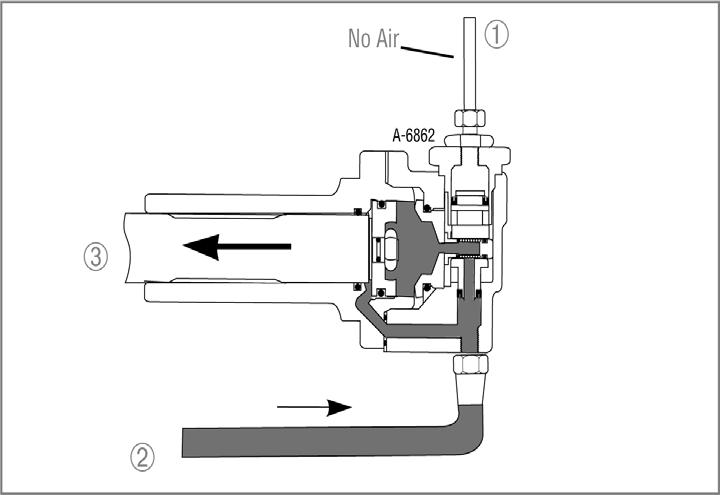

LO Range or HI Range Low Split - With the splitter control button in the "rearward" position, no air is supplied to the splitter cylinder cover top port (1). The constant air from the air filter/regulator assembly (2) moves the splitter piston forward, disengaging the rear auxiliary drive gear (3).

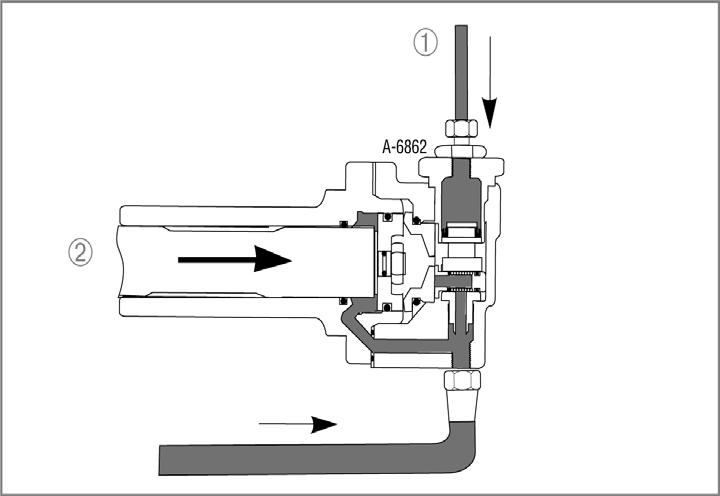

LO Range or HI Range High Split - With the splitter control button in the "forward" position, air is supplied to the splitter cylinder cover top port (1), moving the splitter piston rearward, engaging the rear auxiliary drive gear (2).

Spool Valve

The spool valve components shown are part of a self-contained valve assembly, part number A-6862.

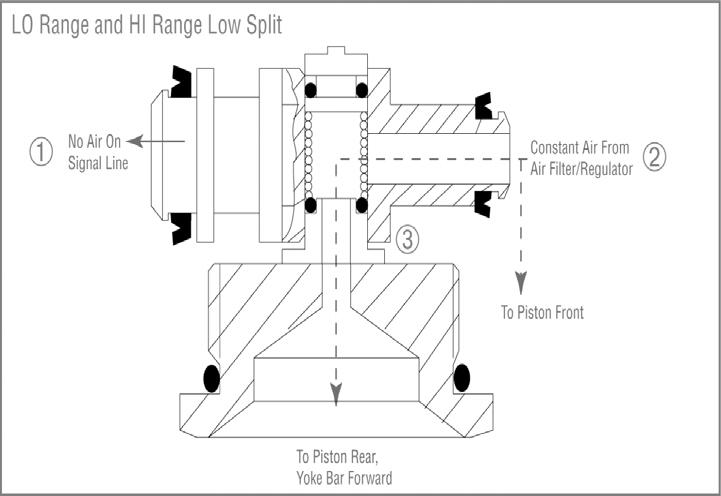

The spool valve piston travel is approximately 1/2”. When no air is supplied from the Roadranger valve to the valve spool left side (1), constant air from the filter/regulator (2) is supplied to the splitter cylinder piston rear side moving the yoke bar forward. Air is exhausted from the splitter cylinder front (3) and from the breather situated on the valve assembly rear.

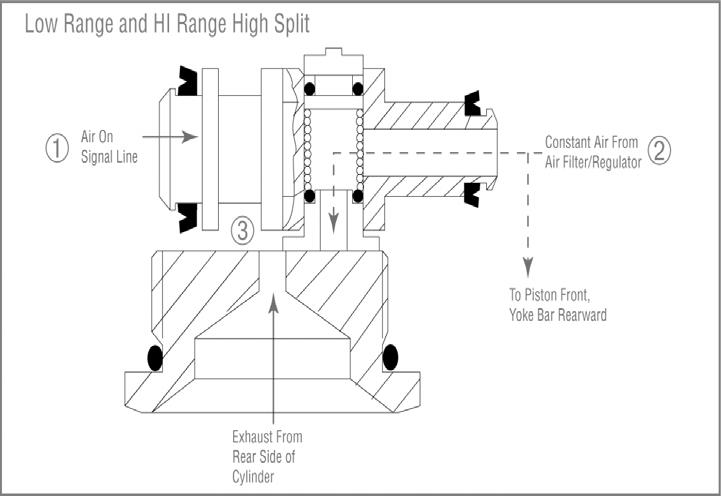

When air is supplied from the Roadranger valve to the valve spool left side (1), constant air from the filter/regulator (2) is supplied to the splitter cylinder piston front side moving the yoke bar rearward. Air is exhausted from the splitter cylinder rear (3) and from the breather situated on the valve assembly rear.
