TORQUE RECOMMENDATIONS

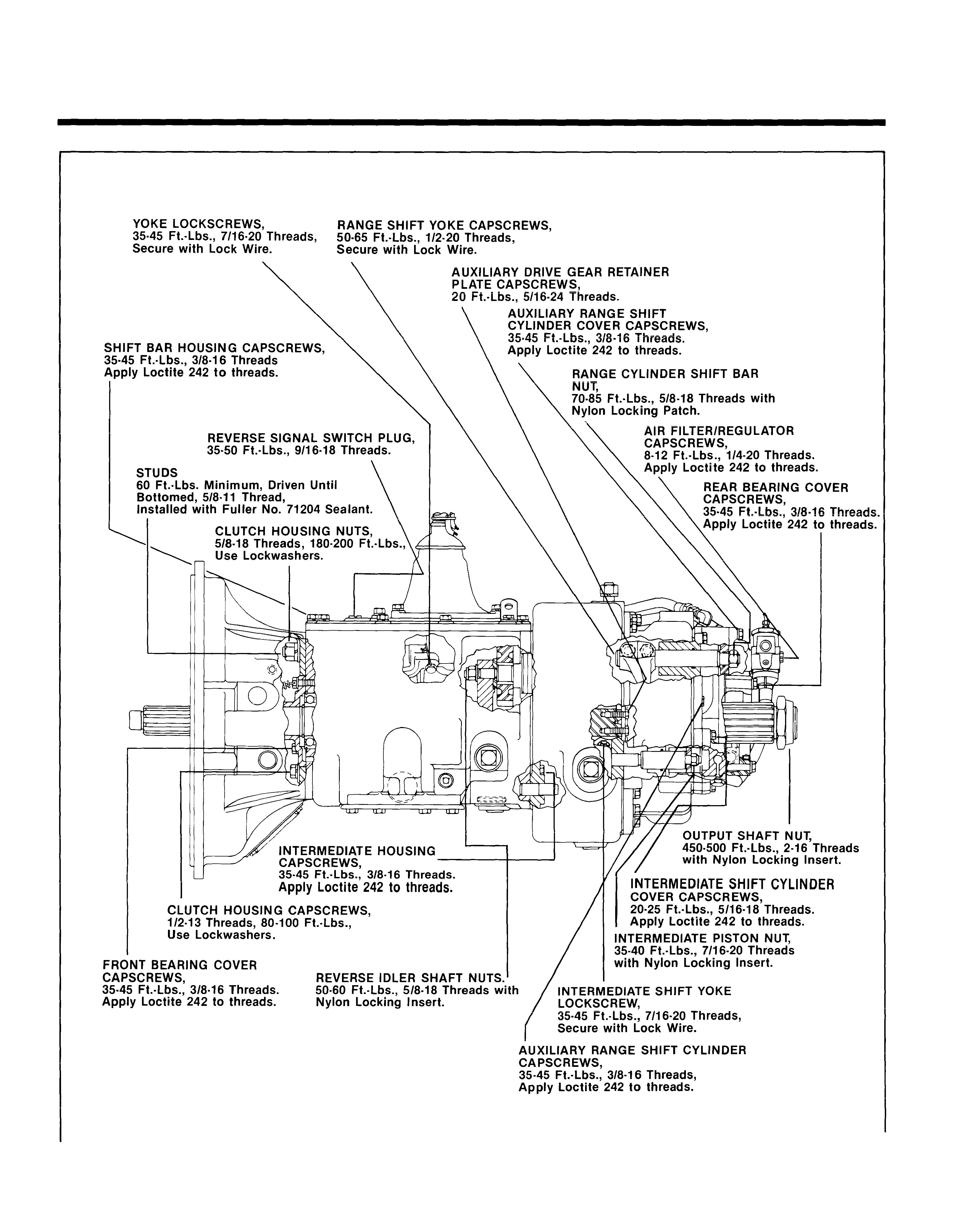

YOKE LOCKSCREWS, 35·45 Ft.·Lbs., 7/16·20 Threads, Secure with Lock Wire. RANGE SHIFT YOKE CAPSCREWS, 50-65 Ft.·Lbs., 112-20 Threads, Secure with Lock Wire.

AUXILIARY DRIVE GEAR RETAINER

AUXILIARY RANGE SHIFT

SHIFT BAR HOUSING CAPSCREWS, \ \ Apply Loctite 242 to threads. 35·45 Ft.·Lbs., 3/8-16 Threads Apply Loctite 242 to threads. \. RANGE CYLINDER SHIFT BAR

1

1

STUDS REVERSE SIGNAL SWITCH PLUG, \ 35·50 Ft.·Lbs., 9/16·18 Threads. \

60 Ft.·Lbs. Minimum, Driven Until Bottomed, 5/8·11 Thread, Installed with Fuller No. 71204 Sealant.

1 L......1 CLUTCH HOUSING NUTS, \ 70-85 Ft.·Lbs., 5/8·18 Threads with Nylon Locking Patch.

FILTER/REGULATOR CAPSCREWS, 8-12 Ft.·Lbs., 1/4-20 Threads. Apply Loctite 242 to threads. \ REAR BEARING COVER CAPSCREWS 35.45 Ft.·Lbs.: 3/8·16 Threads. Loctite 242 to threads. I

f

CLUTCH HOUSING CAPSCREWS, 1/2-13 Threads, 80-100 Ft.-Lbs., Use Lockwashers.

FRONT BEARING COVER CAPSCREWS, 35.45 Ft.-Lbs., 3/8-16 Threads. Apply Loctite 242 to threads. REVERSE IDLER SHAFT NUTS. 50-60 Ft.-Lbs., 5/8-18 Threads with Nylon Locking Insert. INTERMEDIATE SHIFT YOKE LOCKSCREW, 35·45 Ft.·Lbs., 7/16·20 Threads, Secure with Lock Wire.

AUXILIARY RANGE SHIFT CYLINDER CAPSCREWS, 35·45 Ft.·Lbs., 3/8·16 Threads, Apply Loctite 242 to threads.

TORQUE RECOMMENDATIONS

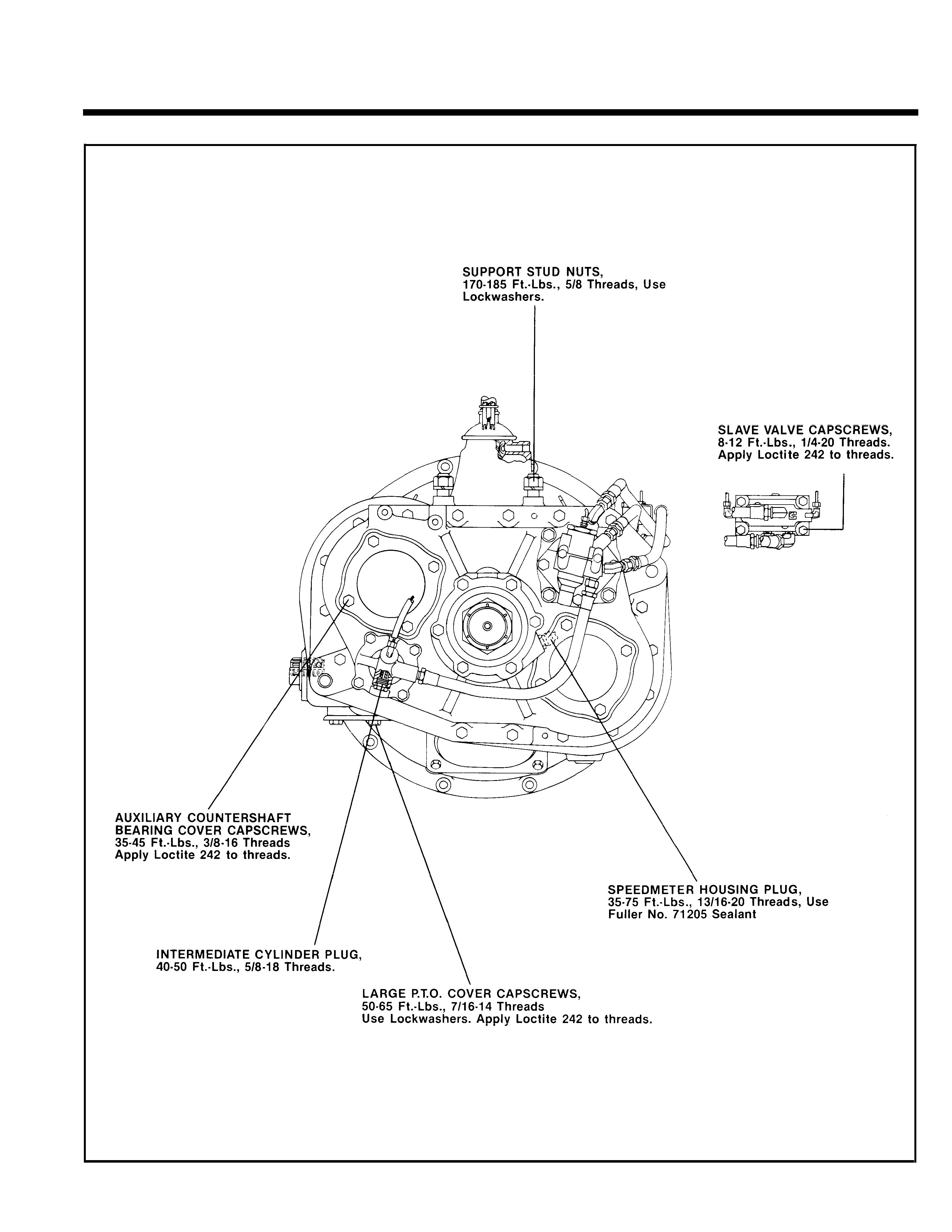

SUPPORT STUD NUTS, 170-185 Ft.-Lbs., 5/8 Threads, Use Lockwashers. I

SLAVE VALVE CAPSCREWS, 8-12 Ft.·Lbs., 1/4-20 Threads. Apply Loctite 242 to threads.

AUXILIARY COUNTERSHAFT BEARING COVER CAPSCREWS, 35-45 Ft.·Lbs., 3/8-16 Threads Apply Loctite 242 to threads.

SPEEDMETER HOUSING PLUG, 35.75 Ft.-Lbs., 13/16-20 Threads, Use Fuller No. 71205 Sealant

INTERMEDIATE CYLINDER PLUG, 40-50 Ft.-Lbs., 5/8-18 Threads.

LARGE P.T.0. COVER CAPSCREWS, 50·65 Ft.-Lbs., 7/16-14 Threads Use Lockwashers. Apply Loctite 242 to threads.
