1.3 Technical data

1.3.3 Optional equipment

1.3.3.1 Screed vibration units

The purpose of the screed vibration function is to:

• lower the frictional resistance between the screed and the paved material during paving,

• improve the surface of the paved asphalt mixture.

Mount the screed vibration units according to the Mounting Manual.

The set of screed vibration units consists of the following components:

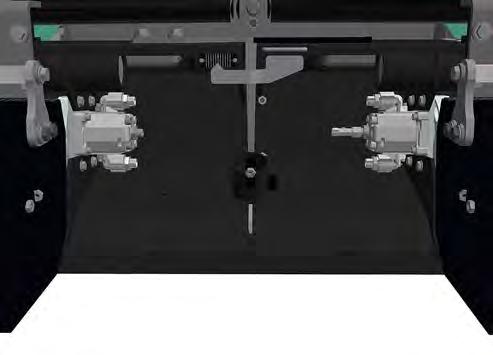

• Two hydraulic vibration units (1),

• Mounting material,

• Vibration drive hose set.

Operating the screed vibration units:

Vibration is only active in the operating mode and machine travel forward.

The vibration unit switch (6) is located on the left from the dashboard and the screed vibration indicator lamp (30) is located on the display of the dashboard.

Turning on:

Turn the vibration unit switch (6) on the main dashboard to the upper position.

During the machine travel forward, the vibration function is activated and the screed vibration indicator lamp (30) turns on.

When the machine stops, the vibration function is deactivated and the screed vibration indicator lamp (30) turns off.

Turning off:

To turn off the vibration function, turn the vibration unit switch (6) on the main dashboard to the lower position.

During mounting of vibration units the machine must be parked on a flat and solid surface with the engine and battery disconnecter off.

Use personal protective equipment.
