SPECIFIC ATION MANUAL

F80W

EU Stage V, U.S. EPA Tier 4f

1.3.2 Machine gradeability and lateral static stability

Always select the travel speed and the movement of the machine on a slope with regard to the safety of the machine operator, other persons moving in the vicinity of the machine, the slope and the adhesion conditions. Always drive with the wheels set in the direction of the slope on slopes greater than 12%.

The driving downhill is only allowed with the same machine speed as the machine is able to go uphill.

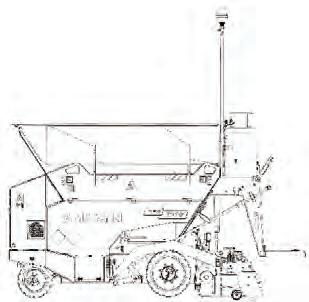

Machine gradeability with an empty hopper (screed in the lower position).

Machine gradeability with a full hopper (screed in the lower position).

Machine descent with an empty hopper (screed in the lower position).

Machine descent with a full hopper (screed in the lower position).

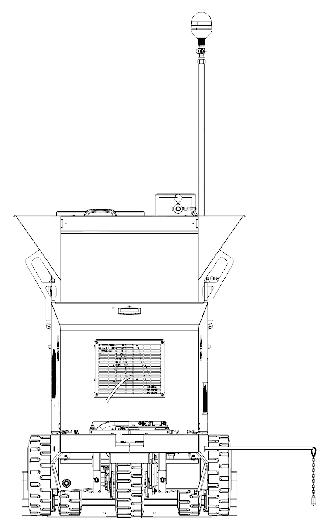

Lateral static stability with an empty and full hopper.
