1 SPECIFICATION MANUAL

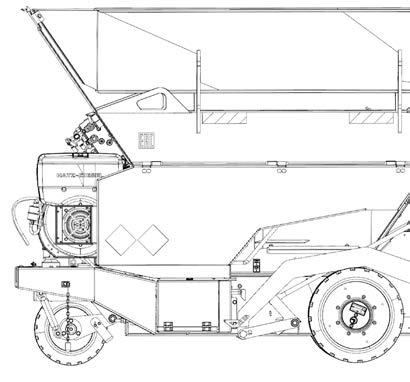

Machine description

The F80W wheeled asphalt paver is equipped with a screed with gas heating. The basic paving width is from 800 mm (31.5 in) to 1,300 mm (51.2 in).

The machine is characterised with good manoeuvrability, good view from the operator's place, a wide range of uses and easy transport.

Specification of the expected use of the machine

The performance and dimensions of the F80W wheeled asphalt paver predetermine it for a wide range of paving works, in particular for city streets, city centres as well as for repairs and general maintenance of constructions.

The F80W wheeled asphalt paver has been designed and manufactured for the use for:

Paving asphalt mixtures (at hot condition)

Paving loose mixtures (at cold condition)

The machines are designed for operation in arid, temperate and cold climates according to EN 60721-2-1:2014 with a limited temperature range from -5 °C (23 °F) to +45 °C (113 °F) and a maximum absolute humidity of 25 g.m-3

The machine is not intended for paving concrete.

The machine that complies with the requirements on health protection and safety is provided with a nameplate with CE marking.

1. Name – always stated only in the English version

2. Type

3. Serial number 4. Operating weight

Specific Ation Manual

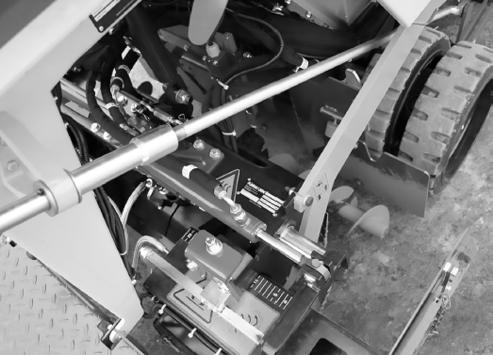

Nameplate. Serial number of the machine.

Serial number of the engine.

Nameplate of the screed. Serial number of the screed.
