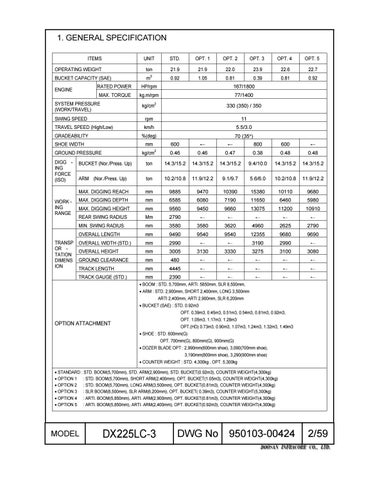

1. GENERAL SPECIFICATION ITEMS
UNIT
STD.
OPERATING WEIGHT
ton
21.9
21.9
22.0
23.9
22.6
22.7
BUCKET CAPACITY (SAE)
m
3
0.92
1.05
0.81
0.39
0.81
0.92
ENGINE
HP/rpm
167/1800
kg.m/rpm
77/1400
kg/cm2
330 (350) / 350
rpm
11
TRAVEL SPEED (High/Low) GRADEABILITY SHOE WIDTH
km/h
5.5/3.0
%(deg)
70 (35°)
OPT. 4
OPT. 5
mm
600
←
←
800
600
←
kg/cm2
0.46
0.46
0.47
0.38
0.48
0.48
BUCKET (Nor./Press. Up)
ton
14.3/15.2
14.3/15.2
14.3/15.2
9.4/10.0
14.3/15.2
14.3/15.2
ARM (Nor./Press. Up)
ton
10.2/10.8
11.9/12.2
9.1/9.7
5.6/6.0
10.2/10.8
11.9/12.2
MAX. DIGGING REACH
mm
9885
9470
10390
15380
10110
9680
MAX. DIGGING DEPTH
mm
6585
6080
7190
11650
6460
5980
MAX. DIGGING HEIGHT
mm
9560
9450
9660
13075
11200
10910
REAR SWING RADIUS
Mm
2790
←
←
←
←
←
MIN. SWING RADIUS
mm
3580
3580
3620
4960
2625
2790
OVERALL LENGTH
mm
9490
9540
9540
12355
9680
9690
OVERALL WIDTH (STD.)
mm
2990
←
←
3190
2990
←
OVERALL HEIGHT
mm
3005
3130
3330
3275
3100
3080
GROUND CLEARANCE
mm
480
←
←
←
←
←
TRACK LENGTH
mm
4445
←
←
←
←
←
mm
2390
←
←
←
←
←
GROUND PRESSURE
TRANSP OR TATION DIMENS ION
OPT. 3
MAX. TORQUE
SWING SPEED
WORK ING RANGE
OPT. 2
RATED POWER
SYSTEM PRESSURE (WORK/TRAVEL)
DIGG ING FORCE (ISO)
OPT. 1
TRACK GAUGE (STD.)
• BOOM : STD. 5,700mm, ARTI. 5850mm, SLR 8,500mm, • ARM : STD. 2,900mm, SHORT 2,400mm, LONG 3,500mm ARTI 2,400mm, ARTI 2,900mm, SLR 6,200mm • BUCKET (SAE) : STD. 0.92m3 OPT. 0.39m3, 0.45m3, 0.51m3, 0.54m3, 0.81m3, 0.92m3, OPT. 1.05m3, 1.17m3, 1.28m3
OPTION ATTACHMENT
OPT.(HD) 0.73m3, 0.90m3, 1.07m3, 1.24m3, 1.32m3, 1.49m3 • SHOE : STD. 600mm(G) OPT. 700mm(G), 800mm(G), 900mm(G) • DOZER BLADE OPT : 2,990mm(600mm shoe), 3,090(700mm shoe), 3,190mm(800mm shoe), 3,290(900mm shoe) • COUNTER WEIGHT : STD. 4,300kg , OPT. 5,300kg
• STANDARD : STD. BOOM(5,700mm), STD. ARM(2,900mm), STD. BUCKET(0.92m3), COUNTER WEIGHT(4,300kg) • OPTION 1 : STD. BOOM(5,700mm), SHORT ARM(2,400mm), OPT. BUCKET(1.05m3), COUNTER WEIGHT(4,300kg) • OPTION 2 : STD. BOOM(5,700mm), LONG ARM(3,500mm), OPT. BUCKET(0.81m3), COUNTER WEIGHT(4,300kg) • OPTION 3 : SLR BOOM(8,500mm), SLR ARM(6,200mm), OPT. BUCKET( 0.39m3), COUNTER WEIGHT(5,300kg) • OPTION 4 : ARTI. BOOM(5,850mm), ARTI. ARM(2,900mm), OPT. BUCKET(0.81m3), COUNTER WEIGHT(4,300kg) • OPTION 5 : ARTI. BOOM(5,850mm), ARTI. ARM(2,400mm), OPT. BUCKET(0.92m3), COUNTER WEIGHT(4,300kg)
MODEL
DX225LC-3
DWG No
950103-00424
2/59
