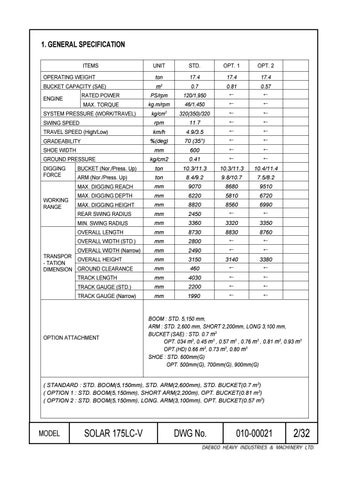

1. GENERAL SPECIFICATION ITEMS
UNIT
STD.
OPT. 1
OPT. 2
OPERATING WEIGHT
ton
17.4
17.4
17.4
BUCKET CAPACITY (SAE)
m3
0.7
RATED POWER
PS/rpm
120/1,950
0.81 ←
0.57 ←
MAX. TORQUE
kg.m/rpm
46/1,450
←
←
kg/cm
320(350)/320
←
←
SWING SPEED
rpm
11.7
←
←
TRAVEL SPEED (High/Low)
km/h
4.9/3.5
←
←
%(deg)
70 (35°)
←
←
mm
600
←
←
kg/cm2
0.41
←
←
BUCKET (Nor./Press. Up)
ton
10.3/11.3
10.3/11.3
10.4/11.4
ARM (Nor./Press. Up)
ton
8.4/9.2
9.8/10.7
7.5/8.2
MAX. DIGGING REACH
mm
9070
8680
9510
MAX. DIGGING DEPTH
mm
6220
5810
6720
MAX. DIGGING HEIGHT
mm
8820
REAR SWING RADIUS
mm
2450
8560 ←
6990 ←
MIN. SWING RADIUS
mm
3360
3320
3350
OVERALL LENGTH
mm
8730
OVERALL WIDTH (STD.)
mm
2800
8830 ←
8760 ←
mm
2490
←
←
mm
3150
mm
460
3140 ←
3380 ←
mm
4030
←
←
TRACK GAUGE (STD.)
mm
2200
←
←
TRACK GAUGE (Narrow)
mm
1990
←
←
ENGINE
SYSTEM PRESSURE (WORK/TRAVEL)
GRADEABILITY SHOE WIDTH GROUND PRESSURE DIGGING FORCE
WORKING RANGE
OVERALL WIDTH (Narrow) TRANSPOR OVERALL HEIGHT - TATION DIMENSION GROUND CLEARANCE TRACK LENGTH
OPTION ATTACHMENT
2
BOOM : STD. 5,150 mm, ARM : STD. 2,600 mm, SHORT 2,200mm, LONG 3,100 mm, BUCKET (SAE) : STD. 0.7 m3 OPT. 034 m3, 0.45 m3 , 0.57 m3 , 0.76 m3 , 0.81 m3, 0.93 m3 OPT.(HD) 0.66 m3, 0.73 m3, 0.80 m3 SHOE : STD. 600mm(G) OPT. 500mm(G), 700mm(G), 900mm(G)
( STANDARD : STD. BOOM(5,150mm), STD. ARM(2,600mm), STD. BUCKET(0.7 m3) ( OPTION 1 : STD. BOOM(5,150mm), SHORT ARM(2,200m), OPT. BUCKET(0.81 m3) ( OPTION 2 : STD. BOOM(5,150mm), LONG. ARM(3,100mm), OPT. BUCKET(0.57 m3)
MODEL
SOLAR 175LC-V
DWG No.
010-00021
2/32
