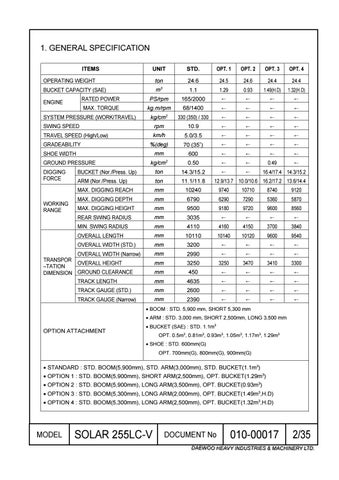

1. GENERAL SPECIFICATION ITEMS
UNIT
STD.
OPT. 1
OPT. 2
OPT. 3
OPT. 4
ton
24.6
24.5
24.6
24.4
24.4
m
1.1
1.29
0.93
1.49(H.D)
1.32(H.D)
RATED POWER
PS/rpm
165/2000
MAX. TORQUE
kg.m/rpm
68/1400
kg/cm
330 (350) / 330
SWING SPEED
rpm
10.9
TRAVEL SPEED (High/Low)
km/h
5.0/3.5
%(deg)
70 (35 )
mm
600
kg/cm
0.50
0.49
BUCKET (Nor./Press. Up)
ton
14.3/15.2
ARM (Nor./Press. Up)
ton
11.1/11.8
MAX. DIGGING REACH
mm
10240
9740
10710
8740
9120
MAX. DIGGING DEPTH
mm
6790
6290
7290
5360
5870
MAX. DIGGING HEIGHT
mm
9500
9180
9720
9600
8560
REAR SWING RADIUS
mm
3035
MIN. SWING RADIUS
mm
4110
4160
4150
3700
3840
OVERALL LENGTH
mm
10110
10140
10120
9600
9540
OVERALL WIDTH (STD.)
mm
3200
mm
2990
mm
3250
3250
3470
3410
3300
mm
450
mm
4635
TRACK GAUGE (STD.)
mm
2600
TRACK GAUGE (Narrow)
mm
2390
OPERATING WEIGHT
3
BUCKET CAPACITY (SAE) ENGINE
SYSTEM PRESSURE (WORK/TRAVEL)
GRADEABILITY
2
SHOE WIDTH GROUND PRESSURE DIGGING FORCE
WORKING RANGE
2
OVERALL WIDTH (Narrow) TRANSPOR OVERALL HEIGHT –TATION DIMENSION GROUND CLEARANCE TRACK LENGTH
16.4/17.4 14.3/15.2
12.9/13.7 10.0/10.6 16.2/17.2 13.6/14.4
• BOOM : STD. 5,900 mm, SHORT 5,300 mm • ARM : STD. 3,000 mm, SHORT 2,500mm, LONG 3,500 mm
OPTION ATTACHMENT
• BUCKET (SAE) : STD. 1.1m3 OPT. 0.5m3, 0.81m3, 0.93m3, 1.05m3, 1.17m3, 1.29m3 • SHOE : STD. 600mm(G) OPT. 700mm(G), 800mm(G), 900mm(G)
• STANDARD : STD. BOOM(5,900mm), STD. ARM(3,000mm), STD. BUCKET(1.1m3) • OPTION 1 : STD. BOOM(5,900mm), SHORT ARM(2,500mm), OPT. BUCKET(1.29m3) • OPTION 2 : STD. BOOM(5,900mm), LONG ARM(3,500mm), OPT. BUCKET(0.93m3) • OPTION 3 : STD. BOOM(5,300mm), LONG ARM(2,000mm), OPT. BUCKET(1.49m3,H.D) • OPTION 4 : STD. BOOM(5,300mm), LONG ARM(2,500mm), OPT. BUCKET(1.32m 3,H.D)
MODEL
SOLAR 255LC-V
DOCUMENT No
010-00017
2/35
