Bucket Cylinder
from Daewoo Doosan 430 440 Plus 450 460 Series Hydraulic & Hydrostatic Systems Skid Steer Loader Service

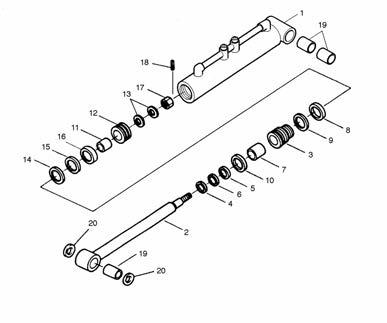

Bucket Cylinder of 450 Series
IGAT141l
1. Place the bucket cylinder in a vice and remove the rod cover (3).
2. Remove rod assembly (2) from the cylinder assembly.
3. Remove spring pin (18), hex nut (17), piston (12) and rod cover (3) from the rod assembly.
4. Remove cushion ring (11), O-ring (13), dust ring (14), slipper seal (15) and wear ring (16) from the piston.
5. Remove dust wiper (4), back up ring (6),
U-packing (5), washer (10), DU bush (7), back up ring (9) and O-ring (8) from the rod cover. 6. Remove the bushing (19) from the knuckle and head cover.
7. Assemble the bucket cylinder in the reverse order of disassembly.

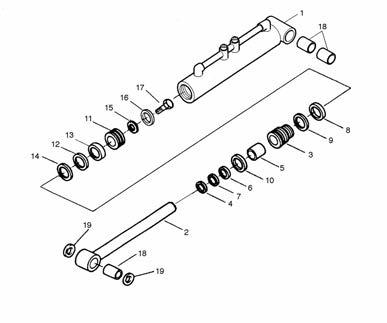

Bucket Cylinder of 430 Series, 440 Plus & 460 Series
IGAT141l
1. Place the bucket cylinder in a vice and remove the rod cover (3).
2. Remove rod assembly (2) from the cylinder assembly.
3. Remove socket bolt (17), hard washer (16), piston (11) and rod cover (3) from the rod assembly.
4. Remove O-ring (15), wear ring (14), slipper seal (12) and wear ring (13) from the piston.
5. Remove dust wiper (4), back up ring (7),
U-packing (6), washer (10), DU bush (5), back up ring (9) and O-ring (8) from the rod cover. 6. Remove the bushing (18) from the knuckle and head cover.
7. Assemble the bucket cylinder in the reverse order of disassembly.
