Install the ° elbow (12) the T- fitting . Tighten

Electrical component installation

34. the left - hand side the rear frame, locate the connector X- 090A (S) and the connector X- 090B (R) the frame harness (T) . 35. Remove the plugs and connect the connector X- 090A (S) and the connector X- 090B (R) the ride control solenoid valves shown in Figure . 36. Secure the wire the connector (R) the hose (13) .

Use the cable tie (19) . 37. Secure the wire the connector (S) the hose (14) .

Use the cable tie (19) . 38. Secure the frame harness (T) the greasing lines.

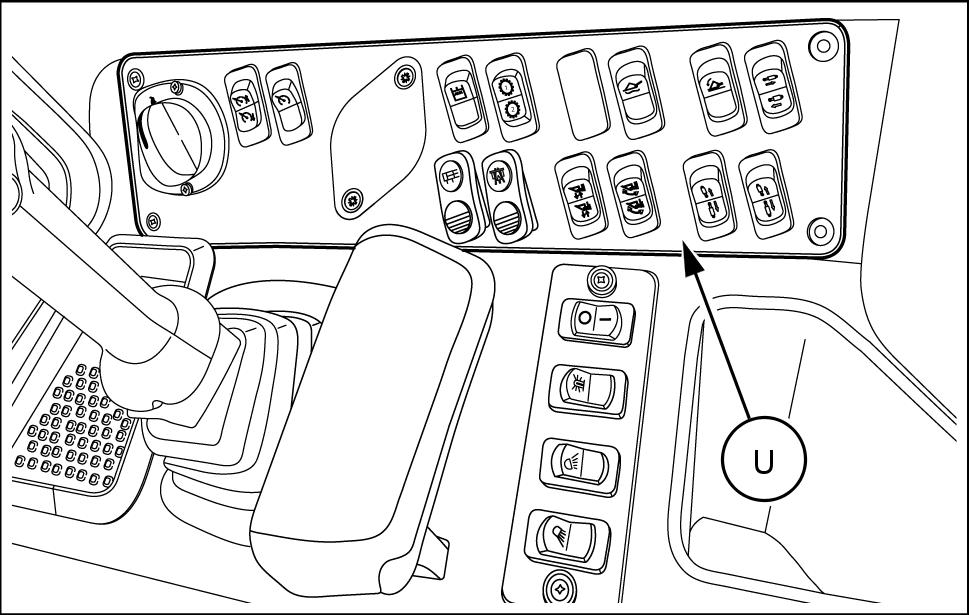

Use the cable ties (19) . 39. Inside the cab, the right - hand console, remove the switch panel (U) .

40. Remove the plug and install the rocker switch (18) . 41. Locate the connector X- 032 (X) the main cab harness (Y) . 42. Connect the connector X- 032 (X) the rocker switch (18) .

43. Reinstall the switch panel (U) .

LEIL19CWL0343AA 27

LEIL19CWL0346AA 28

LEIL19CWL0344AA 29

LEIL19CWL0345AA 30
